(2 Year Warranty)

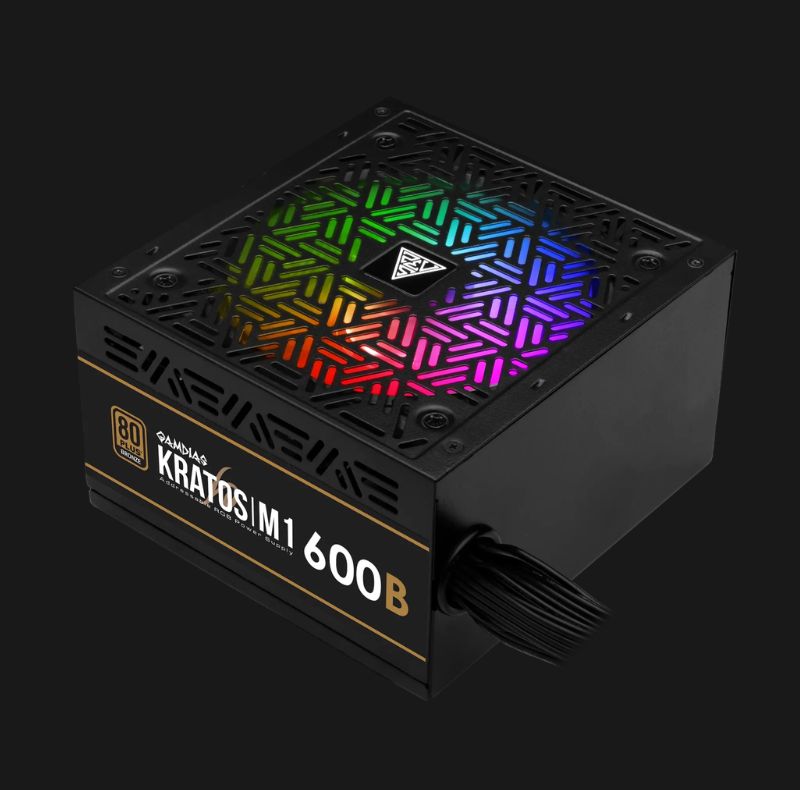

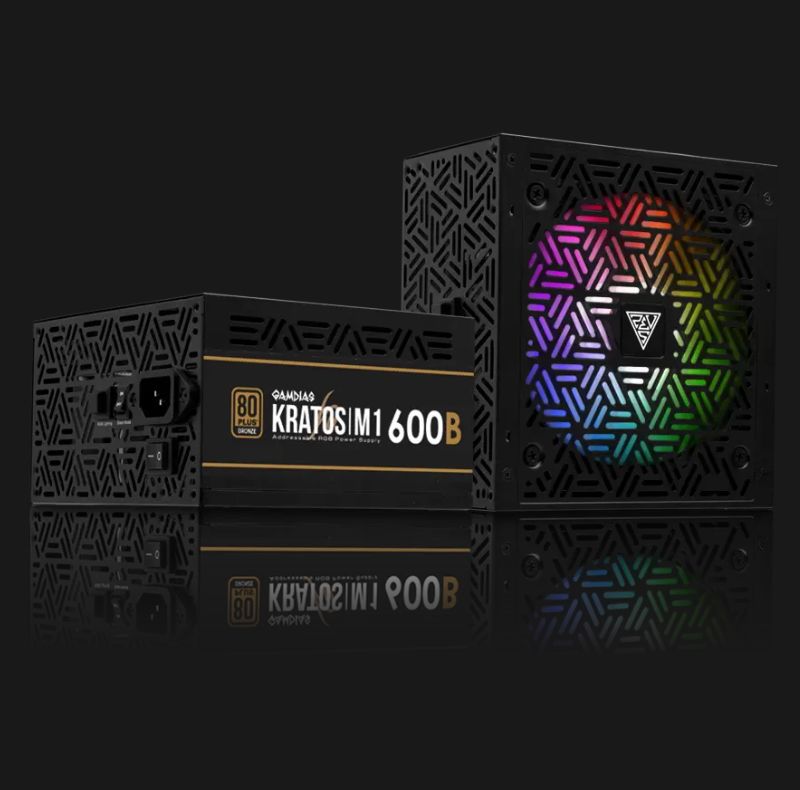

Model – Kratos M1-600b
Type – Atx12v V2.2
Efficiency – 80 Plus Bronze
Power Factor Correction – Apfc (Pf 0.99)
Motherboard Rgb Sync – 5v 3-pin Addressable Rgb Header
Dimensions (L × W × H) – 140 × 150 × 86 Mm
C6/c7 Power State Support – No
Input / Output
Ac Input – 100-240v / 4.5-9.5a / 47-63hz
Dc Output Rails – +3.3v / +5v / +12v / -12v / +5vsb
Max Output Current
+3.3v – 20a
+5v – 20a
+12v – 47a
-12v – 0.3a
+5vsb – 2.5a
Max Output Power
+3.3v & +5v Combined – 120w
+12v – 564w
-12v – 3.6w
+5vsb – 12.5w
Total Power – 600w
Protection
Protection Features – Ovp / Uvp / Opp / Scp / Sp / Icp
Connectors
Main Power – 1 × (20+4 Pin)
Cpu – 1 × (4+4 Pin)
Pci-e – 2 × (6+2 Pin)
Sata – 5 × (5 Pin)
Molex – 2 × (4 Pin)
Floppy – 1 × (4 Pin)
Design
Modular – Non-modular
Flat Cable – Yes
Lighting Effect – 30 Neon-flex Rgb
Silent Mode – Yes
Dc-to-dc – No
