(05 Years Warranty)

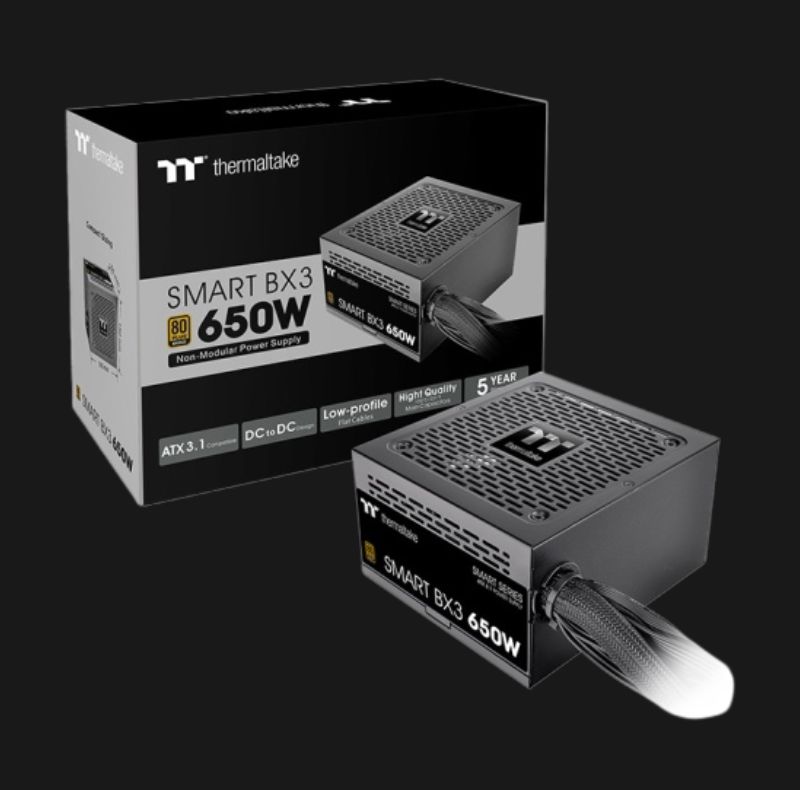

Model – Thermaltake Smart Bx3 650w
Power Supply Specifications
P/n – Ps-spd-0650nnfabx-3
Model – Spd-0650ah2nlb-3
Max Output Capacity – 650w
Rated Power – 650w
Color – Black
Physical Details
Dimensions (W × H × D) – 150 × 86 × 140 Mm
Electrical Features
Pfc (Power Factor Correction) – Active Pfc
Power Good Signal – 100–150 Ms
Hold-up Time – >17 Ms At 80% Load
Input Voltage – 100–240v~
Input Frequency Range – 50hz / 60hz
Input Current – 15a – 6a
Environmental Conditions
Operating Temperature – 5°c To +45°c
Operating Humidity – 20% To 85% (Non-condensing)
Storage Temperature – −40°c To +55°c
Storage Humidity – 10% To 95% (Non-condensing)
Cooling & Efficiency

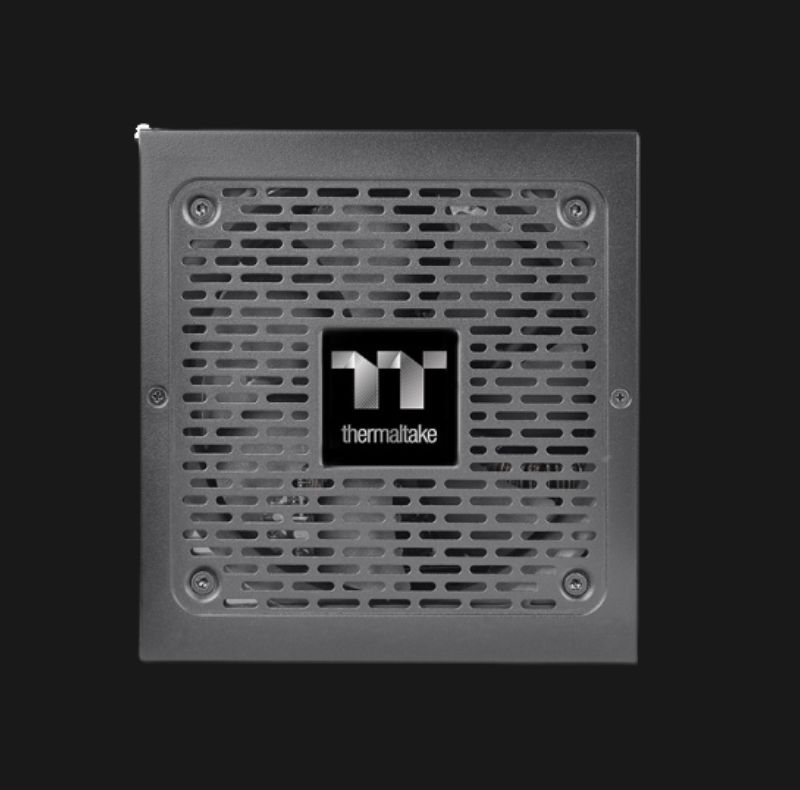

Cooling System – 120mm Fdb Fan
Fan Mode – Smart Zero Fan (Fan Stops Under 20% Load)
Physical Fan Switch – No
Efficiency – 80 Plus® Bronze (115v Ac Input)
Reliability
Mtbf – Minimum 100,000 Hours
Connectivity
Pci-e 6+2-pin Connectors – 2
Protections
Protection Features – Ocp / Ovp / Uvp / Opp / Otp / Scp
Certifications
Safety Approvals – Ce, Ukca, Lvd, Fcc, Ices, Tuv, Cb, Ctuvus, Bsmi, Ccc
