(03 Years Warranty)

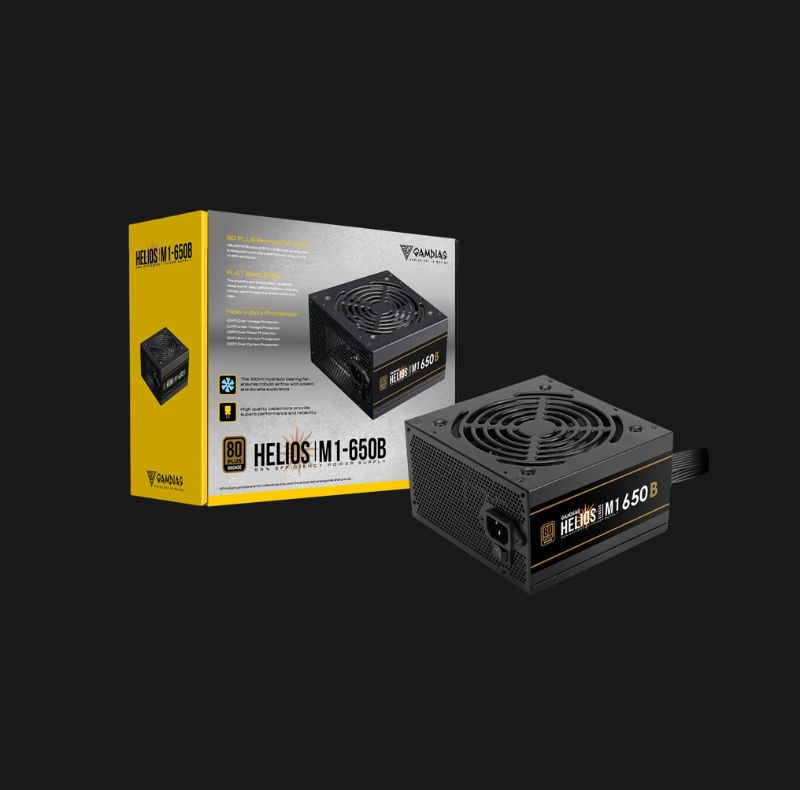

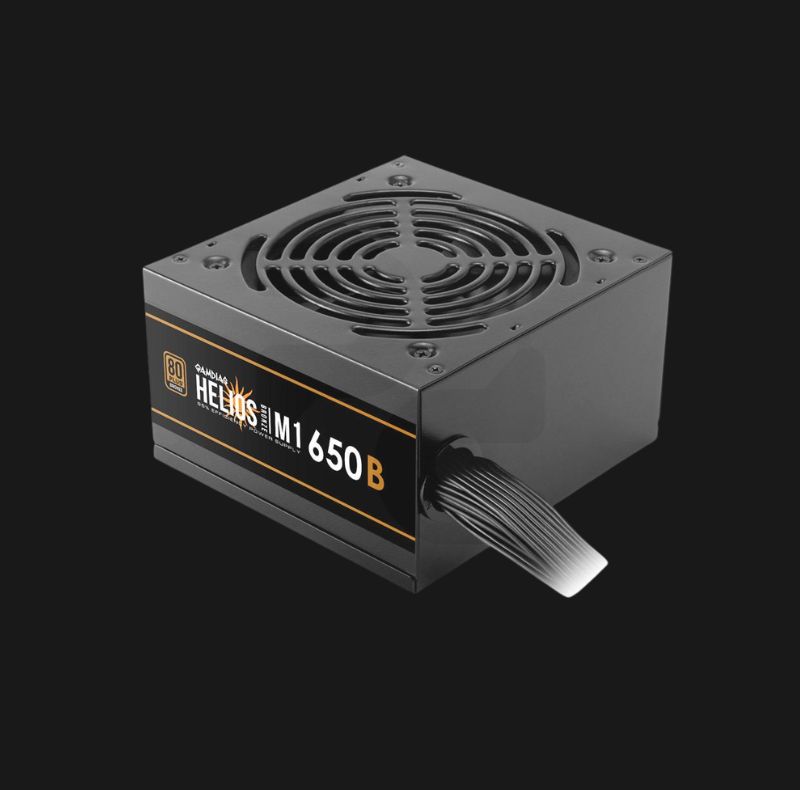

Model – Helios M1-650b
Power Type – Atx12v V2.4
Total Power – 650 W
Efficiency – 80 Plus Bronze
Power Factor Correction (Pfc) – Apfc, Pf Value 0.99
Mb Sync Support – No
C6/C7 Power State Support – Yes
Dimensions (L × W × H) – 140 × 150 × 86 Mm
Input & Output
Ac Input – 100–240 V / 5–10 A / 47–63 Hz
Dc Output Rails – +3.3 V / +5 V / +12 V / -12 V / +5vsb
Max. Output Current – 18 A / 18 A / 48 A / 0.4 A / 2.5 A
Max. Output Power – 100 W / 100 W / 576 W / 4.8 W / 12.5 W
Protection
Protection Features – Ovp / Uvp / Opp / Ocp / Scp
Main Power – 1 × 20+4 Pin
Cpu – 1 × 4+4 Pin
Pci-e – 2 × 6+2 Pin
Sata – 5 × 5 Pin
Molex – 3 × 4 Pin
Modular – Non-modular
Flat Cable – Yes
Cooling System – 120 Mm Hydraulic Bearing Fan
Silent Mode – No
