(03 Years Warranty)

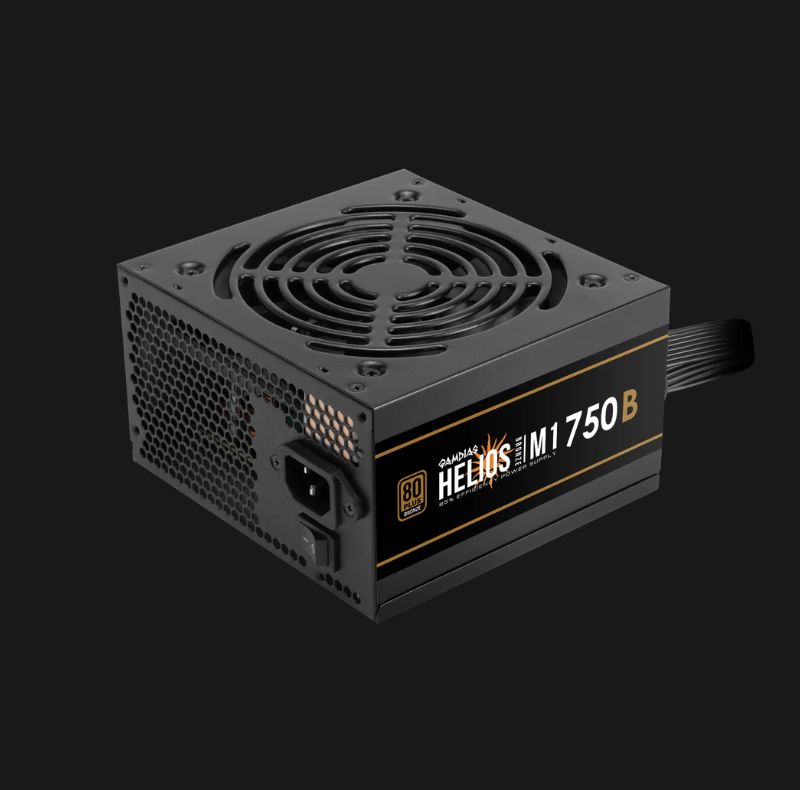

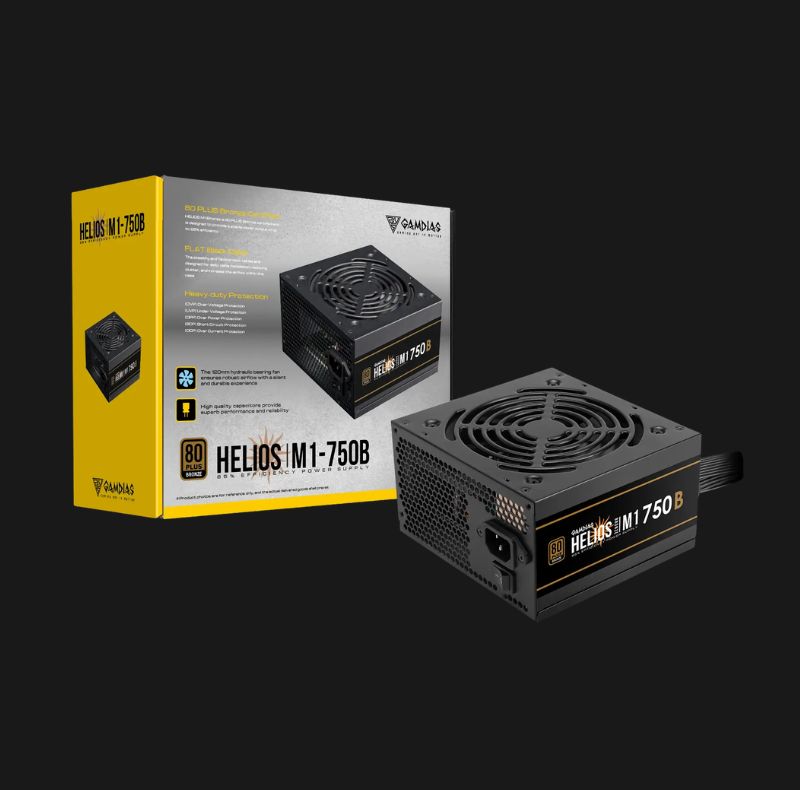

Model – Helios M1-750b
Type – Atx12v V2.4
Efficiency – 80 Plus Bronze Certified
Power Factor Correction – Active Pfc (Pf 0.99)
Total Power – 750w
Ac Input – 100-240v / 5.5-11a / 47-63hz
Dc Output – +3.3v / +5v / +12v / -12v / +5vsb
Max Output Current – 18a / 18a / 56a / 0.4a / 2.5a
Max Output Power – 100w / 672w / 4.8w / 12.5w
Main Power – 1 X (20+4 Pin)
Cpu Power – 1 X (4+4 Pin)
Pci-e – 4 X (6+2 Pin)
Sata – 5 X Sata
Molex – 3 X 4-pin
Modular – Non Modular
Flat Cables – Yes
Cooling System – 120mm Hydraulic Bearing Fan
Silent Mode – No
Motherboard Sync Support – No
C6/c7 Power State Support – Yes
Protection – Ovp / Uvp / Opp / Ocp / Scp
Dimensions – 140 X 150 X 86 Mm
