(5 Years Warranty)

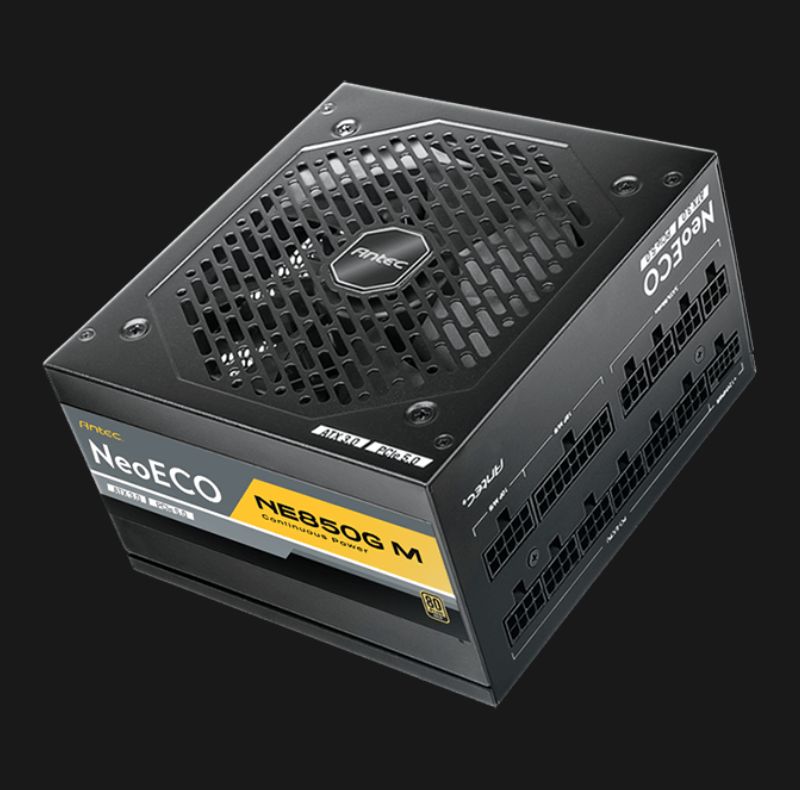

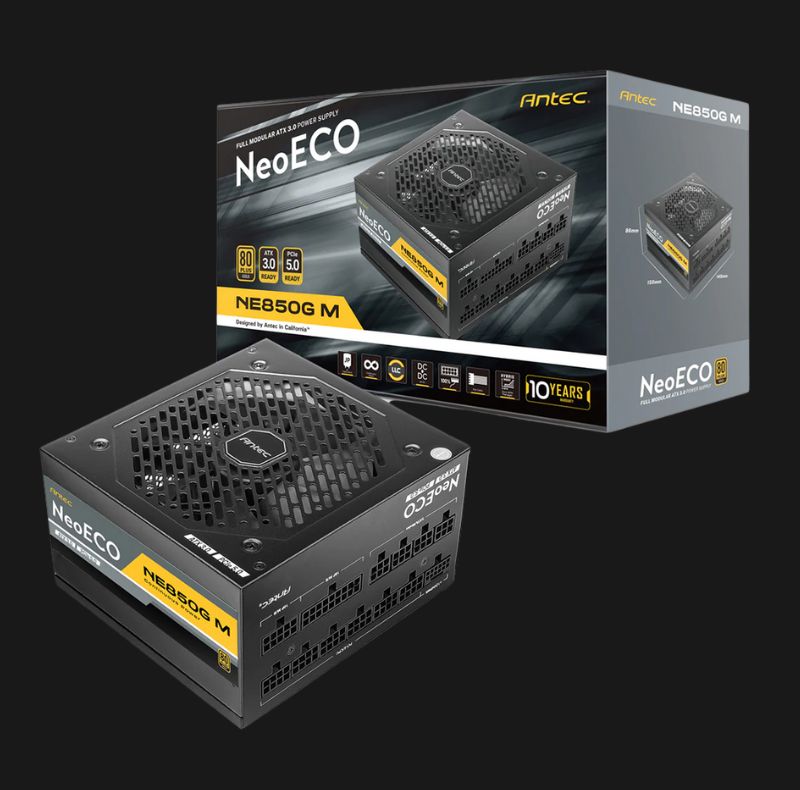

Model – Ne850g M Atx3.0
Type – Atx 12v 3.0
Dimension – 140(L)*150(W)*86(H)
Modular – Full-modular
Input Voltage – 100v-240v
Input Current – 10a-5a
Input Frequency Range – 60hz-50hz
Pfc – Active Pfc
Power Good Signal – 100-150ms
Protection – Ocp, Ovp, Uvp, Scp, Opp, Otp, Sip, Nlo
Output Capacity – 850w
Operation Temperature – 0~40°c
Regulatory – Ctuvus / Tuv / Cb / Rcm / Ce /fcc / Bis / Bsmi / Kc / Ukca / Ices
Fan – 120mm Fdb Silent Fan
Certifications – 80 Plus Gold
Connector 1 X 24(20+4)pin Mb , 1 X 16(12+4)pin Pcie 5.0 12vhpwr , 2 X 8(4+4)pin Cpu , 4 X 8(6+2) Pin Pci-e , 12 X Sata , 4 X Molex
Net Weight – 1.6 Kgs
Gross Weight – 4.62 Kgs
