(01 Year Warranty)

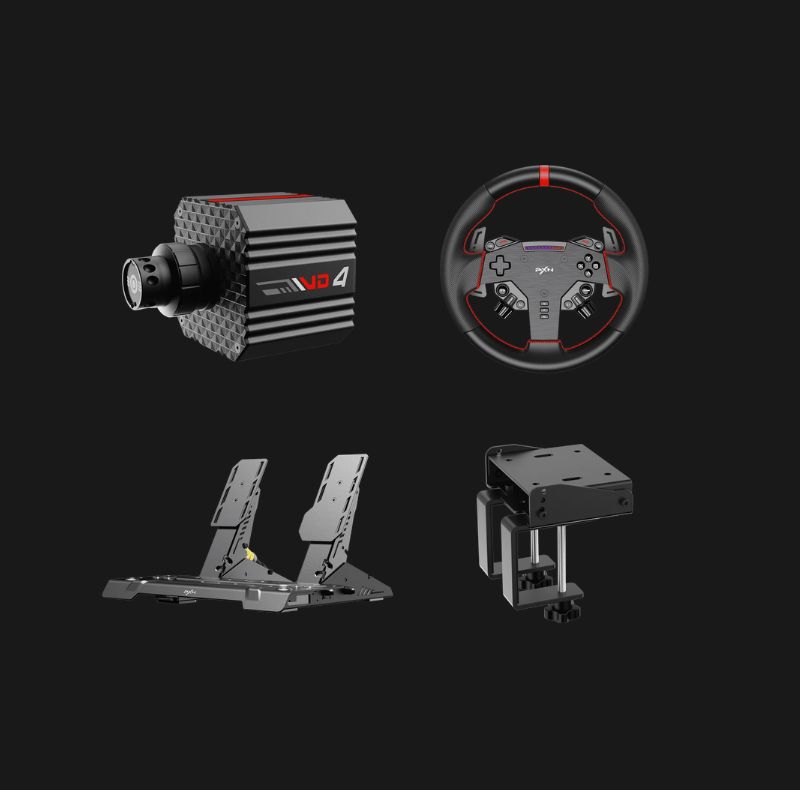

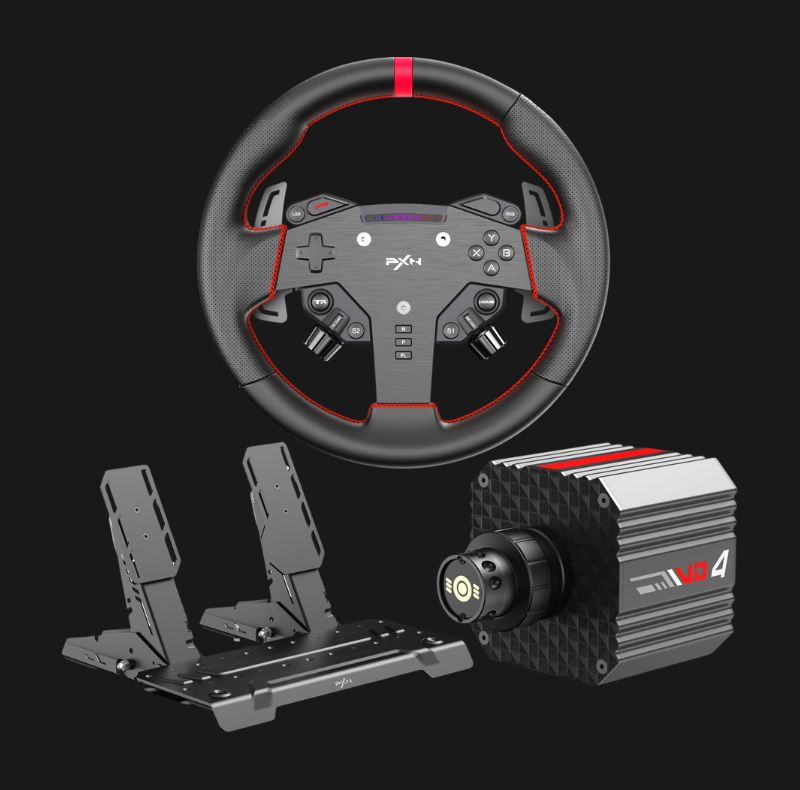

Model – PXN VD4 Bundle
Product Type – SimRacing Kit
Weight – Approximately 7.5 kg
Platform – PC (Windows 7 / 8 / 10 / 11)
Software – PXN SimRacing
Display – None
Performance & Sensors
Engine Type – Low-Inertia Multi-Pole Direct Drive Servo Motor
Sensor Type – 24-bit Magnetic Encoder (Base) / Hall-Effect Sensors (PD HM Pedals)
Encoder Resolution – 24-bit, Over 16.7 Million Pulses/Rev, >46,600 Pulses/°
USB Refresh Rate – Wired USB, <1 ms Input Lag
Vibration / Telemetry – PXN Sense+ System

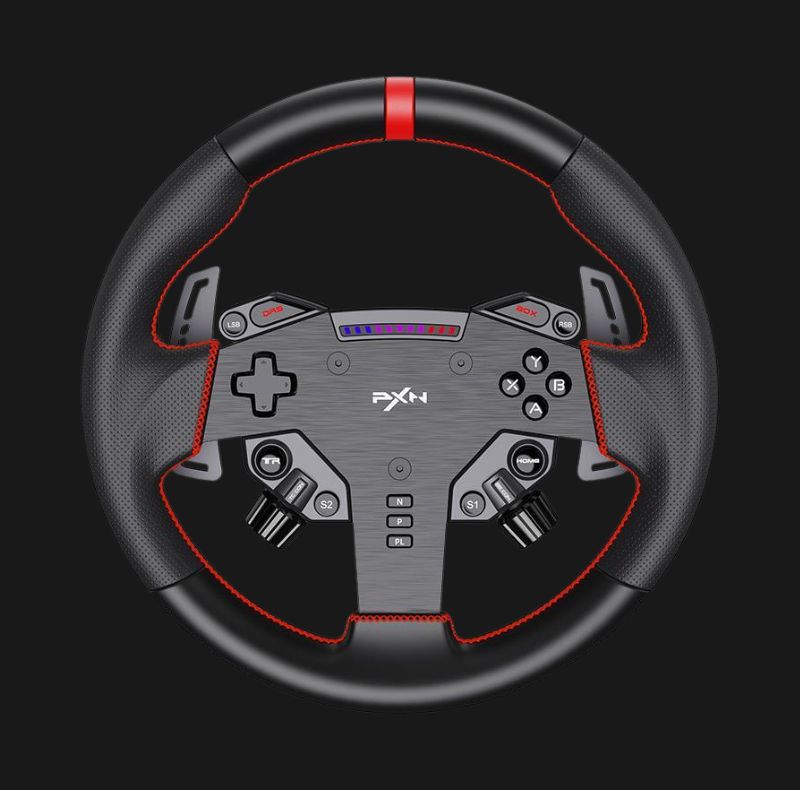

Steering Wheel
Mounting System – 46 mm Quick Release System
Quick Release – Aerospace-Grade Conductive Slider Between Base and Wheel
Gear Shift Paddles – Magnetic Aluminum Paddles with Hall-Effect Sensors
Control Functions – Up to 19
Pedals
Compatible Pedals – PXN PD HM C
Maximum Brake Force – Up to 10 kg (up to 20 kg with Additional Inserts)
Maximum Accelerator Force – Up to 8 kg
Pedal Adjustment – Adjustable Angle (Starting at 60°), Height & Spacing
Software Adjustment – Adjustable Pedal Curve
Construction
Base Housing – Aluminum
Steering Wheel – Aluminum Alloy + Microfiber
Pedals – Steel / Metal Structure
Connectivity
Communication – Wired USB Connection to PC
Ports – USB Port for PC / RJ45 / RJ11 / USB Type-C for Pedals & Accessories
Installation
Mounting Support – Desktops / Racing Frames / Dashboards
Mounting Method – Mounting Holes + Z8 Clamp
Desk Clamp – PXN Z8 Mounting Clamp
Dimensions
Base Dimensions – Approx. 175 × 125 × 125 mm
Steering Wheel Dimensions – Approx. 280 × 280 × 112 mm
Pedal Dimensions – Approx. 350 × 342 × 224 mm
