( 2 Years Warranty )
(Warranty for Battery : 1 Year)

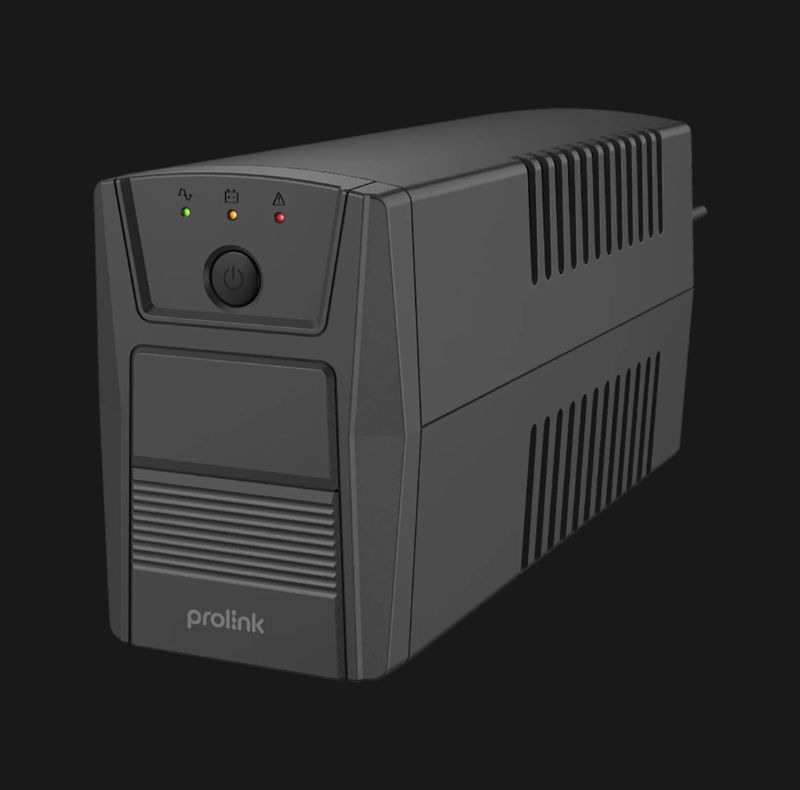

Capacity – 650VA
Input Voltage Range –
162 – 290vac (Single Boost)
140 – 300vac (Double Boost)
Input Frequency – 50hz / 60hz (Auto-sensing)
Input Phase – Single Phase With Ground
Output Voltage Range – 220 – 240vac
Output (Battery Mode) – 220 – 240vac
Output Frequency – 50hz ±1% (Battery Mode)
Output Waveform –
Simulated Sine Wave (Battery Mode)
Pure Sine Wave (AC Mode)
Battery Type – 12v / 8.2ah × 1
Battery Backup Time – 8 – 20 Minutes (Depending On Load)
Battery Recharge Time – 2 – 4 Hours (Up To 90%)
Interface – Rs232, USB Port, Rj45/rj11 (Optional)
Display – LED / LCD (Optional)
Alarm – Battery Mode, Low Battery, Overload, Fault
Short Circuit Protection – Yes (LINE & Battery Mode)
Surge Protection – Yes
Protection / Monitoring – Audible & Visual Alarm
Overload Protection –
LINE Mode:
100 – 120% → 1 Min Then Fault Mode
120% → Immediate Fault
Battery Mode:
100 – 120% → 1 Min Then Fault Mode
120% → Immediate Fault
