(3 Years Warranty)

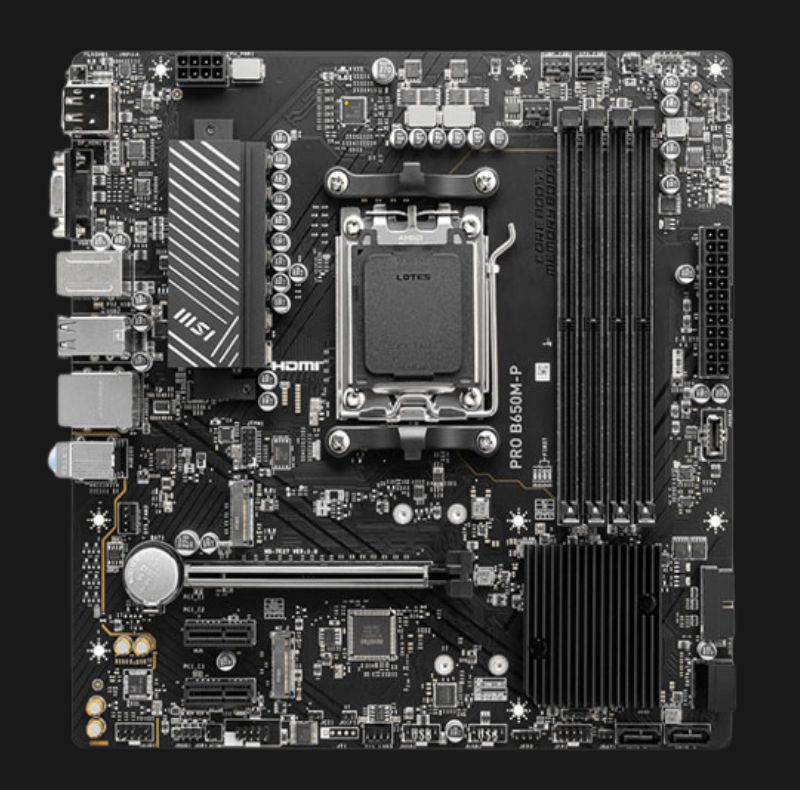

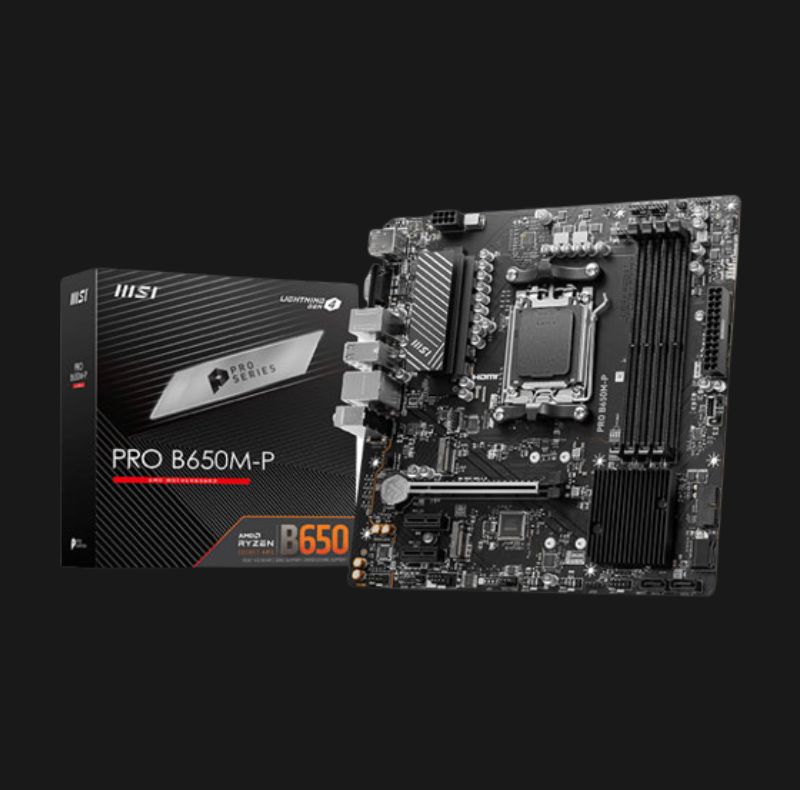

Model – B650M
Chipset – Amd B650M P
Cpu – Supports Amd Ryzen™ 8000/ 7000 Series Desktop Processors
Socket – Am5
Memory – 4x Ddr5, Maximum Memory Capacity 192gb
Memory Support – Ddr5 7200+(Oc)/ 7000(Oc)/ 6800(Oc)/ 6600(Oc)/ 6400(Oc)/ 6200(Oc)/ 6000(Oc)/ 5800(Oc)/ 5600(Oc)/ 5400(Oc)/ 5200(Oc)/ 5000(Oc)/ 4800(Jedec) Mhz
Max. Overclocking Frequency:
• 1dpc 1r Max Speed Up To 7200+ Mhz
• 1dpc 2r Max Speed Up To 6000+ Mhz
• 2dpc 1r Max Speed Up To 6000+ Mhz
• 2dpc 2r Max Speed Up To 5400+ Mhz
Supports Dual-channel Mode
Supports Non-ecc, Un-buffered Memory
Supports Amd Expo
Onboard Graphics – 1x Hdmi™
Support Hdmi 2.1, Maximum Resolution Of 4k 60hz*
1x Displayport
Supports Dp 1.4, Maximum Resolution Of 4k 60hz*
1x Vga
Support Vga, Maximum Resolution Of 1920×1200 60hz*
*available Only On Processors Featuring Integrated Graphics. Graphics Specifications May Vary Depending On The Cpu Installed.
Slot – 1x Pci-e X16 Slot
• Supports X16 (For Ryzen™ 7000 Series Processors)
• Supports X8 (For Ryzen™ 7 8700g And Ryzen™ 5 8600g Processors)
• Supports X4 (For Ryzen™ 5 8500g Processor)
2x Pci-e X1 Slot
Pci_e1 Gen Pcie 4.0 Supports Up To X16 (From Cpu)
Pci_e2 Gen Pcie 3.0 Supports Up To X1 (From Chipset)
Pci_e3 Gen Pcie 3.0 Supports Up To X1 (From Chipset)
Storage – 2x M.2
M.2_1 Source (From Cpu) Supports Up To Pcie 4.0 X4, Supports 2280/2260 Devices
M.2_2 Source (From Chipset) Supports Up To Pcie 4.0 X4, Supports 2280/2260 Devices
4x Sata 6g
Raid – Supports Raid 0, Raid 1 And Raid 10 For Sata Storage Devices. Supports Raid 0 And Raid 1 For M.2 Nvme Storage Devices
Usb –
4x Usb 2.0 (Rear)
4x Usb 2.0 (Front)
2x Usb 3.2 Gen1 Type A (Rear)
2x Usb 3.2 Gen1 Type A (Front)
2x Usb 3.2 Gen2 Type A (Rear)
1x Usb 3.2 Gen2 Type C (Front)
Lan – Realtek® 8125bg 2.5g Lan
Audio – Realtek® Alc897 Codec 7.1-channel High Definition Audio
Internal Io –
1x Power Connector(Atx_pwr)
1x Power Connector(Cpu_pwr)
1x Cpu Fan
1x Pump Fan
3x System Fan
2x Front Panel (Jfp)
1x Chassis Intrusion (Jci)
1x Front Audio (Jaud)
1x Com Port (Jcom)
2x Addressable V2 Rgb Led Connector (Jargb_v2)
2x Rgb Led Connector(Jrgb)
1x Tpm Pin Header(Support Tpm 2.0)
4x Usb 2.0 Ports
2x Usb 3.2 Gen1 Type A Ports
1x Usb 3.2 Gen2 Type C Ports
Led Feature – 4x Ez Debug Led
Back Panel Ports –
Display Port
Vga
Keyboard / Mouse
Usb 2.0
2.5g Lan
Audio Connectors
Flash Bios Button
Hdmi™
Usb 2.0
Usb 3.2 Gen 1 5gbps (Type-a)
Usb 3.2 Gen 2 10gbps (Type-a)
Operating System – Support For Windows® 11 64-bit, Windows® 10 64-bit
Pcb Info – Matx
