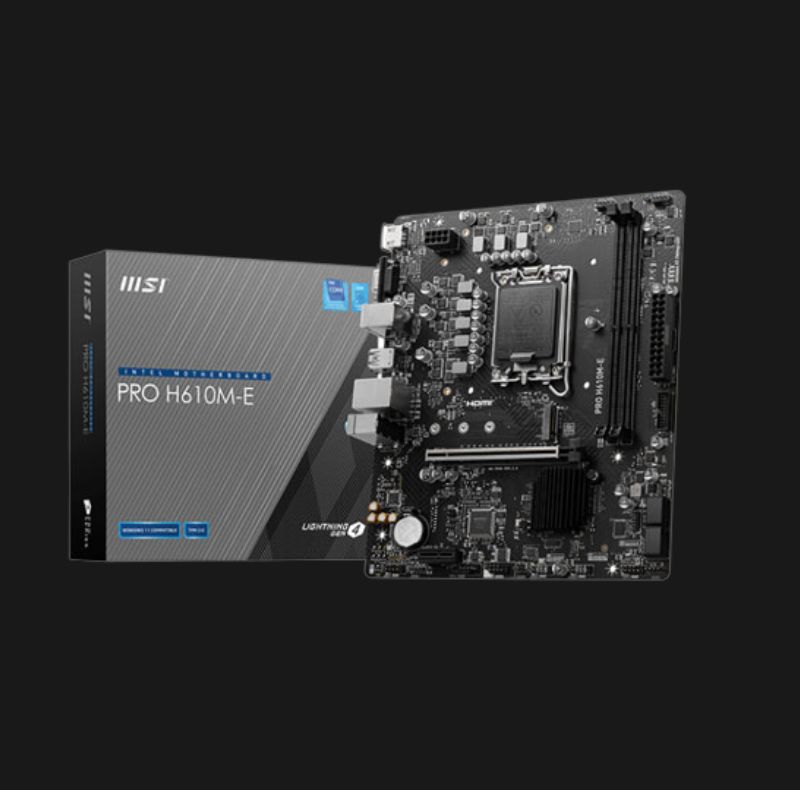

MSI H610M-E PRO DDR5 MOTHERBOARD

(3 Years Warranty)

Chipset – Intel H610

Cpu – Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold And Celeron® Processors Lga 1700

Memory – 2x Ddr5, Maximum Memory Capacity 96gb , Memory Support Ddr5 5600 Mhz (By Jedec & Por) , Supports Intel® Xmp 3.0 Oc , Supports Dual-controller Dual-channel Mode

Onboard Graphics – 1x Hdmi™ , Support Hdmi™ 1.4 With Hdr, Maximum Resolution Of 4k 30hz*, 1x Vga Support Vga, Maximum Resolution Of 2048×1536 50hz, 2048×1280 60hz, 1920×1200 60hz

Slot – 1x Pci-e X16 Slot ,1x Pci-e X1 Slot , Pci_e1 Gen Pcie 4.0 Supports Up To (From Cpu) , Pci_e2 Gen Pcie 3.0 Supports Up To (From Chipset)

Storage – 1x M.2 , M.2_1 Source (From Chipset) Supports Up To Pcie 3.0 X4 / Sata Mode, Supports 2280/2260/2242 Devices , 4x Sata 6g , * Sata5 Will Be Unavailable When Installing M.2 Sata Ssd In The M2_1 Slot.

Usb – 4x Usb 2.0 (Rear) , 4x Usb 2.0 (Front) , 2x Usb 3.2 Gen1 Type A (Rear) , 2x Usb 3.2 Gen1 Type A (Front)

Lan – Realtek® Rtl8111h Gigabit Lan

Audio – Realtek® Alc897 Codec 7.1-channel High Definition Audio

Internal Io – 1x Power Connector(Atx_pwr)

Operating System – Support For Windows® 11 64-bit, Windows® 10 64-bit

Pcb Info – M Atx 200mmx236.16mm
