(3 Years Warranty)
Chipset – Intel B760
Cpu – Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold And Celeron® Processors Lga1700
Memory – 4x Ddr5, Maximum Memory Capacity 256gb , Memory Support 7800+(Oc)/ 7600(Oc)/ 7400(Oc)/ 7200(Oc)/ 7000(Oc)/ 6800(Oc)/ 6600(Oc)/ 6400(Oc)/ 6200(Oc)/ 6000(Oc)/ 5800(Oc)/ 5600(Jedec)/ 5400(Jedec)/ 5200(Jedec)/ 5000(Jedec)/ 4800(Jedec) Mhz
Max. Overclocking Frequency – 1dpc 1r Max Speed Up To 7800+ Mhz , 1dpc 2r Max Speed Up To 6600+ Mhz , 2dpc 1r Max Speed Up To 6400+ Mhz , 2dpc 2r Max Speed Up To 5600+ Mhz (Supports Dual-channel Mode,supports Non-ecc, Un-buffered Memory, Supports Intel® Extreme Memory Profile)
Onboard Graphics – 1x Hdmi™ (Support Hdmi 2.1 With Hdr, Maximum Resolution Of 4k 60hz*) , 1x Displayport (Support Dp 1.4, Maximum Resolution Of 4k 60hz*) * Available Only On Processors Featuring Integrated Graphics. Graphics Specifications May Vary Depending On The Cpu Installed.
Slot – 2x Pci-e X16 Slot , 1x Pci-e X1 Slot , Pci_e1 Gen Pcie 5.0 Supports Up To X16 (From Cpu) , Pci_e2 Gen Pcie 3.0 Supports Up To X1 (From Chipset) , Pci_e3 Gen Pcie 4.0 Supports Up To X4 (From Chipset) 4x Sata 6g
Storage – 2x M.2 (M.2_1 Source (From Cpu) Supports Up To Pcie 4.0 X4 , Supports 2280/2260/2242 Devices) , (M.2_2 Source (From Chipset) Supports Up To Pcie 4.0 X4 / Sata Mode, Supports 2280/2260/2242 Devices) ,
Raid Supports – Raid 0, Raid 1, Raid 5 And Raid 10 For Sata Storage Devices

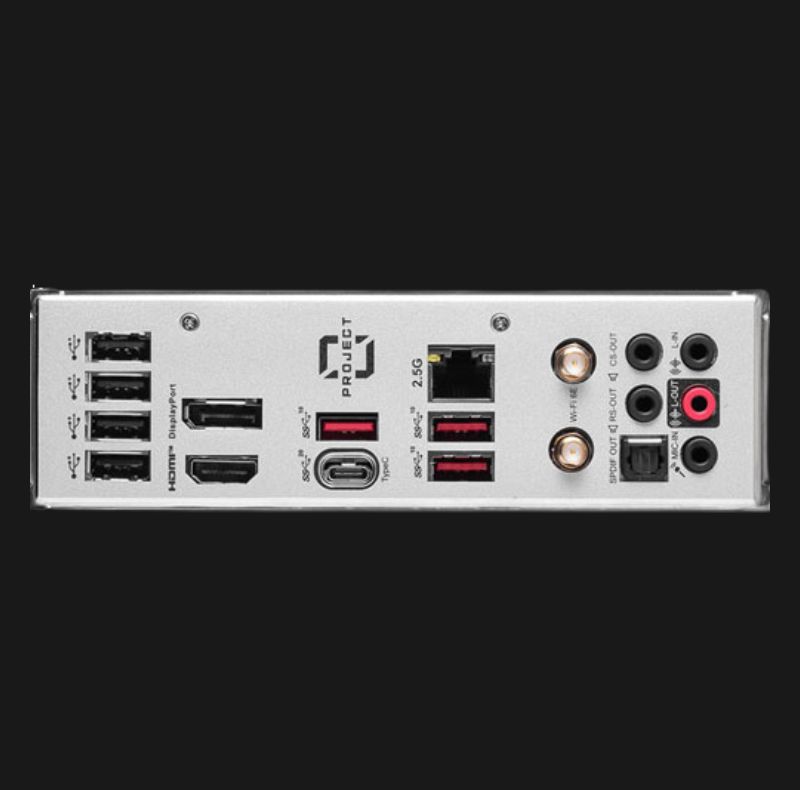

Usb – 4x Usb 2.0 (Rear) , 4x Usb 2.0 (Front) , 2x Usb 5gbps Type A (Front) , 3x Usb 10gbps Type A (Rear) , 1x Usb 10gbps Type C (Front) , 1x Usb 20gbps Type C (Rear)
Lan – Realtek® 2.5gbps Lan
Wireless Lan & Bluetooth – Intel® Wi-fi 6e
The Wireless Module Is Pre-installed In The M.2 (Key-e) Slot
Supports Mu-mimo Tx/rx, 2.4ghz / 5ghz / 6ghz* (160mhz) Up To 2.4gbps
Supports 802.11 A/ B/ G/ N/ Ac/ Ax
Supports Bluetooth® 5.3, Fips, Fisma
* Wi-fi 6e 6ghz May Depend On Every Country’s Regulations And Will Be Ready In Windows 11.
** Bluetooth 5.3 Will Be Ready In Windows 10 Build 21h1 And Windows 11.
Audio – Realtek® Alc897 Codec (7.1-channel High Performance Audio/supports S/pdif Output)
Internal Io -1x Power Connector(Atx_pwr) , 2x Power Connector(Cpu_pwr) , 1x Cpu Fan , 1x Pump Fan , 4x System Fan , 4x System Fan , 2x Front Panel (Jfp) , 1x Chassis Intrusion (Jci) , 1x Front Audio (Jaud) , 1x Tbt Connector (Jtbt, Supports Rtd3) , 1x Tuning Controller Connector(Jdash) , 2x Addressable V2 Rgb Led Connector (Jargb_v2) , 2x Rgb Led Connector(Jrgb) , 1x Tpm Pin Header(Support Tpm 2.0) , 4x Usb 2.0 Ports , 2x Usb 5gbps Type A Ports , 1x Usb 10gbps Type C Ports
Led Feature – 4x Ez Debug Led
Operating System – Support For Windows® 11 64-bit, Windows® 10 64-bit
Pcb Info – Matx (243.84mmx243.84mm)
