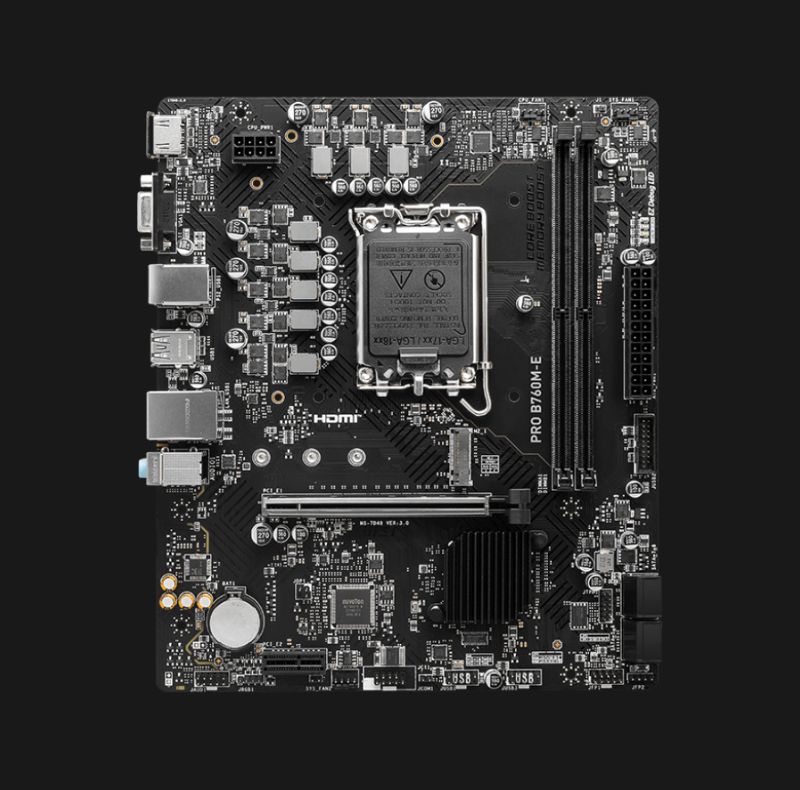

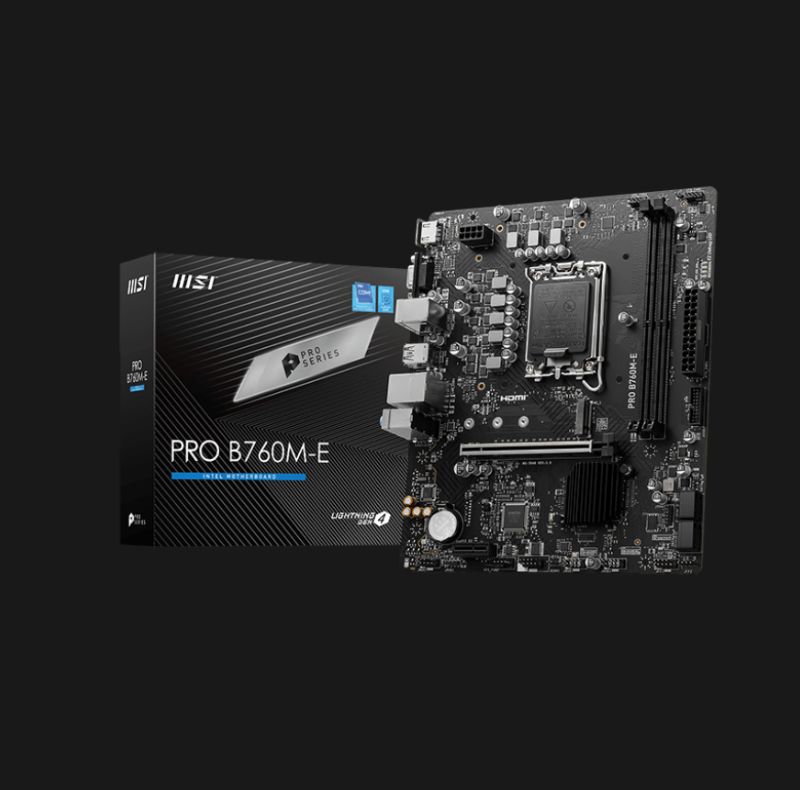

Chipset – Intel B760m
Cpu – Supports Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® Processors (Lga 1700)
Memory – 2x Ddr5, Up To 128gb (Ddr5 6400+ Mhz Oc Supported)
• Ddr5 6400+(Oc) / 6200(Oc) / 6000(Oc) / 5800(Oc) / 5600(Jedec) / 5400(Jedec) / 5200(Jedec) / 5000(Jedec) / 4800(Jedec)
• Max Oc Frequency:
• 1dpc 1r – Up To 6400+ Mhz
• 1dpc 2r – Up To 5600+ Mhz
• Supports Intel® Xmp 3.0
• Dual-controller Dual-channel Mode
• Non-ecc, Un-buffered Memory Support
Onboard Graphics – Hdmi / Vga
• 1x Hdmi™ 1.4 With Hdr – Max 4k @ 30hz
• 1x Vga – Max 2048×1536 @ 50hz, 2048×1280 @ 60hz, 1920×1200 @ 60hz
Graphics Availability Depends On Cpu With Integrated Gpu.
Slot – Pcie Expansion Slots
• 1x Pcie X16 Gen 4.0 (From Cpu)
• 1x Pcie X1 Gen 3.0 (From Chipset)
Audio – Realtek® Alc897, 7.1-channel High Definition Audio
Storage – M.2 And Sata Support
• 1x M.2 Slot:
• M.2_1 (From Chipset): Pcie 4.0 X4 / Sata – Supports 2280/2260/2242
• 4x Sata 6gb/s Ports
Sata5 Disabled When M.2 Sata Ssd Is Installed In M.2_1.
Raid – Supports Raid 0, 1, 5, 10 (Sata Only)
Usb – Ports Configuration
• Rear: 4x Usb 2.0, 2x Usb 5gbps Type-a
• Front: 4x Usb 2.0, 2x Usb 5gbps Type-a
Lan – Realtek® Rtl8111h Gigabit Lan
Internal Io – Connectors & Headers
• 1x 24-pin Atx Power
• 1x 8-pin Cpu Power
• 1x Cpu Fan
• 2x System Fan
• 2x Front Panel (Jfp)
• 1x Chassis Intrusion (Jci)
• 1x Front Audio (Jaud)
• 1x Com Port (Jcom)
• 1x Rgb Led Connector (Jrgb)
Operating System – Supports Windows® 11 64-bit, Windows® 10 64-bit
