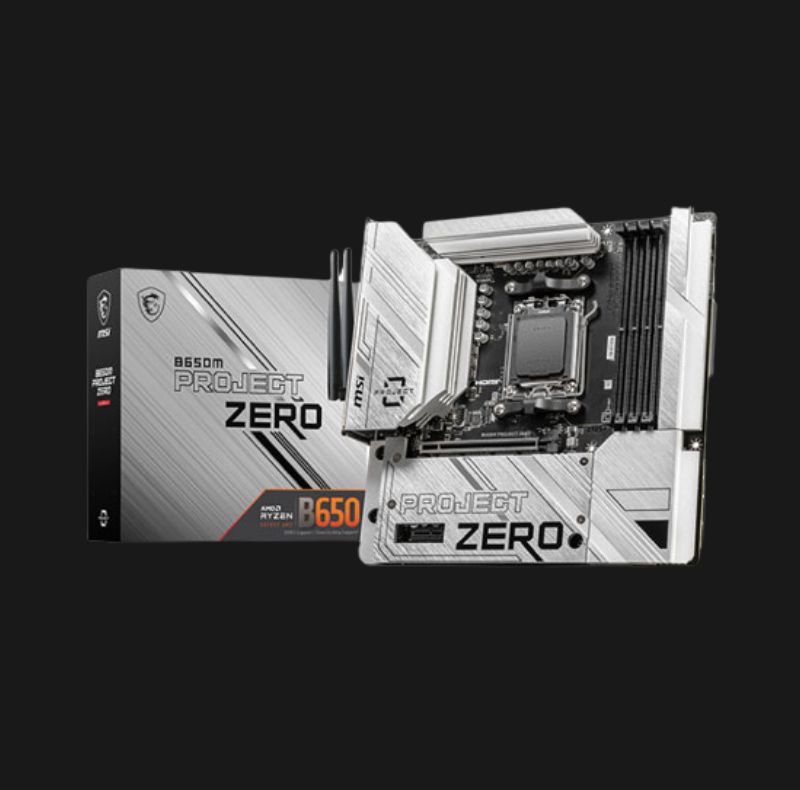

MSI B650M PROJECT ZERO (WIFI) DDR5 MOTHERBOARD

(3 Years Warranty)

Chipset – Amd B650

Cpu – Supports Amd Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket Am5

Memory – 4x Ddr5, Maximum Memory Capacity 256gb Memory Support Ddr5 7600+(Oc)/ 7400(Oc)/ 7200(Oc)/ 7000(Oc)/ 6800(Oc)/ 6600(Oc)/ 6400(Oc)/ 6200(Oc)/ 6000(Oc)/ 5800(Oc)/ 5600(Oc)/ 5400(Oc)/ 5200(Oc)/ 5000(Oc)/ 4800(Jedec) Mhz

Max. Overclocking Frequency – 1dpc 1r Max Speed Up To 7600+ Mhz, 1dpc 2r Max Speed Up To 6400+ Mhz, 2dpc 1r Max Speed Up To 6400+ Mhz, 2dpc 2r Max Speed Up To 5400+ Mhz

Onboard Graphics – 1x Hdmi™ Support Hdmi 2.1 With Hdr, Maximum Resolution Of 4k 60hz*, 1x Displayport Support Dp 1.4, Maximum Resolution Of 4k 60hz* *available Only On Processors Featuring Integrated Graphics. Graphics Specifications May Vary Depending On The Cpu Installed.

Slot – 1x Pci-e X16 Slot
Supports X16 (For Ryzen™ 9000 And 7000 Series Processors)
Supports X8 (For Ryzen™ 7 8700g And Ryzen™ 5 8600g Processors
Supports X4 (For Ryzen™ 5 8500g Processor)
1x Pci-e X1 Slot
Pci_e1 Gen Pcie 4.0 Supports Up To X16 (From Cpu)
Pci_e2 Gen Pcie 3.0 Supports Up To X1 (From Chipset)

Audio – Realtek® Alc897 Codec (7.1-channel High Definition Audio) (Supports Up To 32-bit/384 Khz Playback On Front Panel)

Storage – 2x M.2 (M.2_1 Source (From Cpu) Supports Up To Pcie 4.0 X4 , Supports 2280/2260 Devices) (M.2_2 Source (From Cpu) Supports Up To Pcie 4.0 X4 , Supports 2280/2260 Devices) , 4x Sata 6g M2_2 Supports Pcie 4.0 X2 Speed When Ryzen™ 5 8500g Is Installed

Raid Supports – Raid 0, Raid 1, And Raid 10 For Sata Storage Devices* Supports Raid 0 And Raid 1 For M.2 Nvme Storage Devices * Sata_a1_a2 Do Not Support Raid Function.

Usb – 2x Usb 2.0 (Rear)
4x Usb 2.0 (Front)
2x Usb 5gbps Type A (Rear)
2x Usb 5gbps Type A (Front)
3x Usb 10gbps Type A (Rear)
1x Usb 10gbps Type C (Rear)
1x Usb 10gbps Type C (Front)
1x Usb 20gbps Type C (Rear)

Lan – Realtek® Rtl8125bg 2.5gbps Lan

Wireless Lan & Bluetooth – Amd Wi-fi 6e
The Wireless Module Is Pre-installed In The M.2 (Key-e) Slot
Supports Mu-mimo Tx/rx
Supports 20mhz, 40mhz, 80mhz Bandwidth In 2.4ghz/ 5ghz Or 6ghz* Bands
Supports 802.11 A/ B/ G/ N/ Ac/ Ax

Supports Bluetooth® 5.3**

* Wi-fi 6e 6ghz May Depend On Every Country’s Regulations And Will Be Ready In Windows 11.
** Bluetooth 5.3 Will Be Ready In Windows 10 Build 21h1 And Windows 11.

Internal Io – 1x Power Connector(Atx_pwr)
2x Power Connector(Cpu_pwr)
1x Cpu Fan
1x Pump Fan
3x System Fan
2x Front Panel (Jfp)
1x Chassis Intrusion (Jci)
1x Front Audio (Jaud)
3x Addressable V2 Rgb Led Connector (Jargb_v2)
1x Tpm Pin Header(Support Tpm 2.0)
4x Usb 2.0 Ports
2x Usb 5gbps Type A Ports
1x Usb 10gbps Type C Ports

Led Feature – 4x Ez Debug Led

Back Panel Ports – Displayport
2.5g Lan
Usb 2.0
Usb 5gbps (Type-a)
Wi-fi / Bluetooth
Audio Connectors
Flash Bios Button
Clear Cmos Button
Hdmi™
Usb 10gbps (Type-a)
Usb 10gbps (Type-c)
Usb 20gbps (Type-c)

Operating System S- Upport For Windows® 11 64-bit, Windows® 10 64-bit

Pcb Info – Matx 243.84mmx243.84mm
