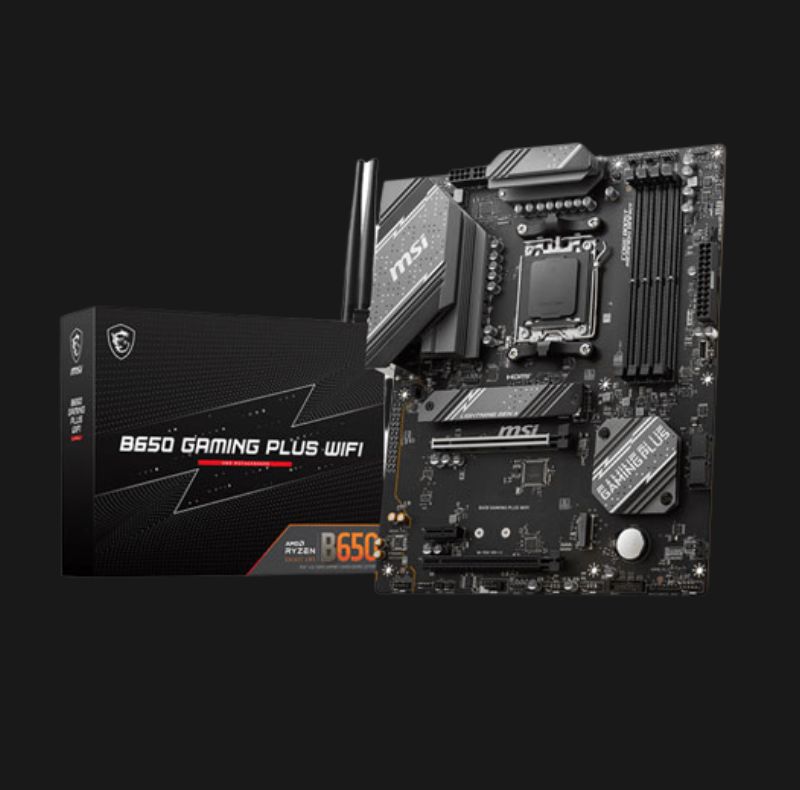

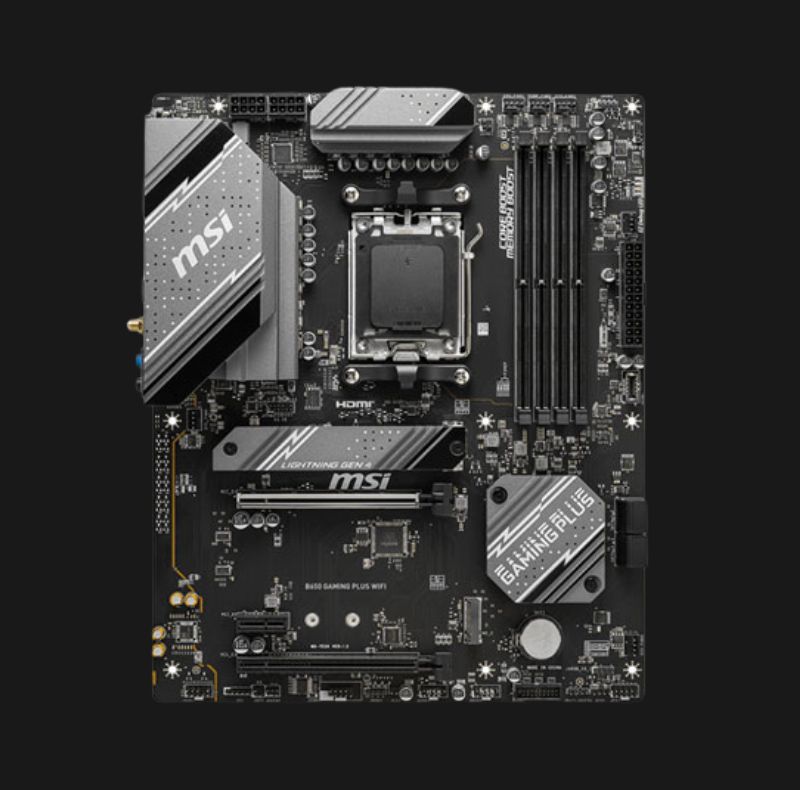

MSI B650 GAMING PLUS (WI-FI) DDR5 MOTHERBOARD

(3 Years Warranty)

Chipset – Amd B650

Cpu – Supports Amd Ryzen™ 7000 Series Desktop Processors

Socket – Am5

Memory – 4x Ddr5, Maximum Memory Capacity 192gbmemory Support Ddr5 7200+(Oc)/ 7000(Oc)/ 6800(Oc)/ 6600(Oc)/ 6400(Oc)/ 6200(Oc)/ 6000(Oc)/ 5800(Oc)/ 5600(Oc)/ 5400(Oc)/ 5200(Oc)/ 5000(Oc)/ 4800(Jedec) Mhz
Max. Overclocking Frequency – 1dpc 1r Max Speed Up To 7200+ Mhz , 1dpc 2r Max Speed Up To 6000+ Mhz , 2dpc 1r Max Speed Up To 6000+ Mhz , 2dpc 2r Max Speed Up To 5400+ Mhz (Supports Dual-channel Mode,supports Non-ecc, Un-buffered Memory,supports Amd Expo)

Onboard Graphics – 1x Hdmi™ Support Hdmitm 2.1 With Hdr, Maximum Resolution Of 4k 60hz*,1x Displayport Supports Dp1.4, Maximum Resolution Of 4k 60hz* *available Only On Processors Featuring Integrated Graphics. Graphics Specifications May Vary Depending On The Cpu Installed.

Slot – 2x Pci-e X16 Slot, 1x Pci-e X1 Slot, Pci_e1 Gen Pcie 4.0 Supports Up To X16 (From Cpu), Pci_e2 Gen Pcie 3.0 Supports Up To X1 (From Chipset), Pci_e3 Gen Pcie 4.0 Supports Up To X4 (From Chipset)

Multi-gpu – Amd Multi-gpu Support

Storage – 2x M.2 , M.2_1 Source (From Cpu) Supports Up To Pcie 4.0 X4 , Supports 22110/2280 Devices, M.2_2 Source (From Cpu) Supports Up To Pcie 4.0 X4 , Supports 2280/2260 Devices, 4x Sata 6g

Raid – Supports Raid 0, Raid 1 And Raid 1 For Sata Storage Devices, Supports Raid 0 And Raid 1 For M.2 Nvme Storage Devices

Usb – 4x Usb 2.0 (Front), 4x Usb 3.2 Gen1 Type A (Rear), 2x Usb 3.2 Gen1 Type A (Front), 3x Usb 3.2 Gen2 Type A (Rear), 1x Usb 3.2 Gen2 Type C (Front), 1x Usb 3.2 Gen2x2 Type C (Rear)

Lan – Realtek® 8125bg 2.5g Lan

Wireless Lan & Bluetooth – Amd Wi-fi 6e , Supports Bluetooth® 5.3**

Audio – Realtek® Alc897 Codec, 7.1-channel High Definition Audio

Internal Io – 1x Power Connector(Atx_pwr), 2x Power Connector(Cpu_pwr), 1x Cpu Fan, 1x Pump Fan, 4x System Fan, 2x Front Panel (Jfp), 1x Chassis Intrusion (Jci), 1x Front Audio (Jaud, 1x Com Port (Jcom), 1x Tuning Controller Connector(Jdash), 2x Addressable V2 Rgb Led Connector (Jargb_v2), 2x Rgb Led Connector(Jrgb), 1x Tpm Pin Header(Support Tpm 2.0), 4x Usb 2.0 Ports, 2x Usb 3.2 Gen1 Type A Ports, 1x Usb 3.2 Gen2 Type C Ports

Led Feature – 4x Ez Debug Led

Operating System – Support For Windows® 11 64-bit, Windows® 10 64-bit

Pcb Info – Atx 243.84mmx304.8mm
