(3 Years Warranty)
Chipset – Amd A620
Cpu Supports – Amd Ryzen™ 7000 Series Desktop Processors
Socket – Am5
Memory – 2x Ddr5, Maximum Memory Capacity 96gb
Memory Support – Ddr5 6800+(Oc)/ 6600(Oc)/ 6400(Oc)/ 6200(Oc)/ 6000(Oc)/ 5800(Oc)/ 5600(Oc)/ 5400(Oc)/ 5200(Oc)/ 5000(Oc)/ 4800(Jedec) Mhz
Max Overclocking Frequency – 1dpc 1r Max Speed Up To 6800+ Mhz , 1dpc 2r Max Speed Up To 6000+ Mhz , Supports Dual-channel Mode , Supports Non-ecc, Un-buffered Memory , Supports Amd Expo
Onboard Graphics – 1x Hdmi™ Support Hdmitm 2.1, Maximum Resolution Of 4k 60hz* 1x Vga Support Vga, Maximum Resolution Of 2048×1536 50hz, 2048×1280 60hz, 1920×1200 60hz *available Only On Processors Featuring Integrated Graphics. Graphics Specifications May Vary Depending On The Cpu Installed.
Slot – 1x Pci-e X16 Slot , 1x Pci-e X1 Slot , Pci_e1 Gen Pcie 4.0 Supports Up To X16 (From Cpu) , Pci_e2 Gen Pcie 3.0 Supports Up To X1 (From Chipset)
Storage – 1x M.2 , M.2_1 Source (From Cpu) Supports Up To Pcie 4.0 X4 , Supports 2280/2260 Devices , 4x Sata 6g
Raid – Supports Raid 0, Raid 1 And Raid 10 For Sata Storage Devices
Usb – 2x Usb 2.0 (Rear) , 4x Usb 2.0 (Front) , 4x Usb 3.2 Gen1 Type A (Rear) , 2x Usb 3.2 Gen1 Type A (Front)
Lan – Realtek® Rtl8111h Gigabit Lan
Audio – Realtek® Alc897 Codec – 7.1-channel High Definition Audio
Internal Io – 1x Power Connector(Atx_pwr) , 1x Power Connector(Cpu_pwr) , 1x Cpu Fan , 2x System Fan , 2x Front Panel (Jfp) , 1x Chassis Intrusion (Jci) , 1x Front Audio (Jaud) , 1x Com Port (Jcom) , 1x Rgb Led Connector(Jrgb) , 1x Tpm Pin Header(Support Tpm 2.0) , 4x Usb 2.0 Ports , 2x Usb 3.2 Gen1 Type A Ports
Led Feature – 4x Ez Debug Led
Back Panel Ports – Hdmi™ , Vga , Keyboard/mouse , Usb 3.2 Gen 1 5gbps (Type-a) , Lan Port , Lan Port , Audio Connectors , Usb 2.0
Operating System – Support For Windows® 11 64-bit, Windows® 10 64-bit

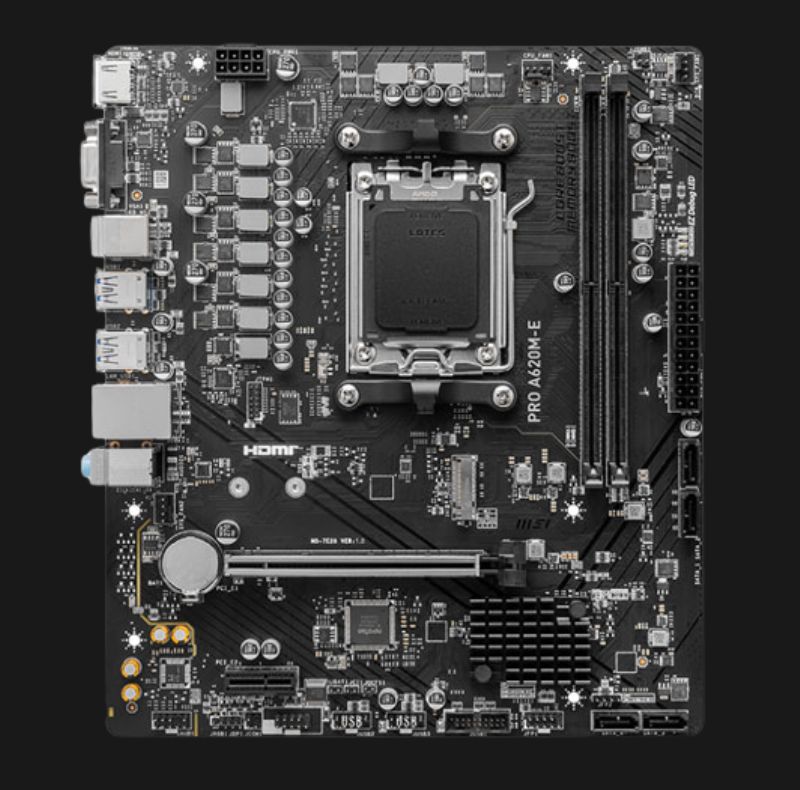

Pcb Info – M Atx 211mmx243.84mm
