(03 Month Warranty)

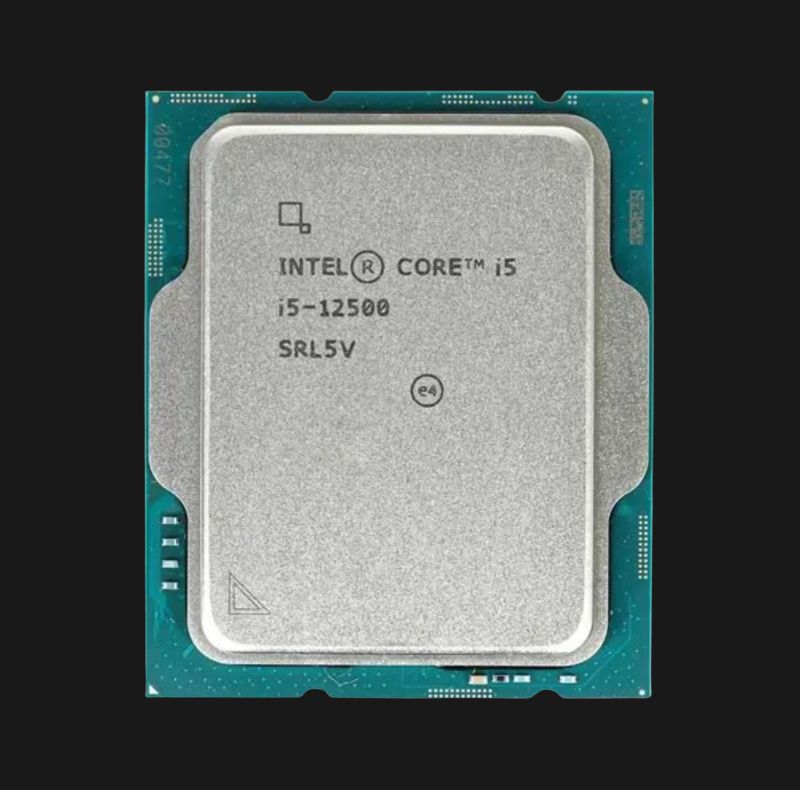

Model – Intel® Core i5 12500
Architecture – Alder Lake
CPU Cores – 6 Performance-Cores
Threads – 12
Max Turbo Frequency – Up to 4.6 GHz
Performance-Core Base Frequency – 3.0 GHz
Intel Smart Cache – 18 MB
L2 Cache – 7.5 MB
Processor Base Power – 65 W
Maximum Turbo Power – 117 W
Launch Date – Q1 2022
Socket – FCLGA1700
Maximum Memory Capacity – 128 GB
Memory Support –
DDR5-4800 MT/s
DDR4-3200 MT/s
Memory Channels – Dual Channel
Maximum Memory Bandwidth – 76.8 GB/s
ECC Memory Support – Yes
Integrated Graphics
GPU – Intel® UHD Graphics 770
Graphics Base Frequency – 300 MHz
Graphics Max Dynamic Frequency – 1.45 GHz
Execution Units – 32
Graphics Output – eDP 1.4b, DisplayPort 1.4a, HDMI 2.1
Maximum Resolution –
HDMI: 4096 × 2160 @ 60Hz
DisplayPort: 7680 × 4320 @ 60Hz
eDP: 5120 × 3200 @ 120Hz
DirectX Support – DirectX 12
OpenGL Support – OpenGL 4.5
OpenCL Support – OpenCL 3.0
Intel® Quick Sync Video – Yes
Intel® Clear Video HD Technology – Yes
Maximum Displays – 4
PCI Express & Connectivity
PCI Express Version – PCIe 5.0 & PCIe 4.0
Maximum PCIe Lanes – 20
PCIe Configurations – Up to 1×16+4, 2×8+4
DMI Revision – 4.0
Thermal
Maximum Operating Temperature (Tjunction) – 100°C
Thermal Solution Specification – PCG 2020C
