(03 Years Warranty)

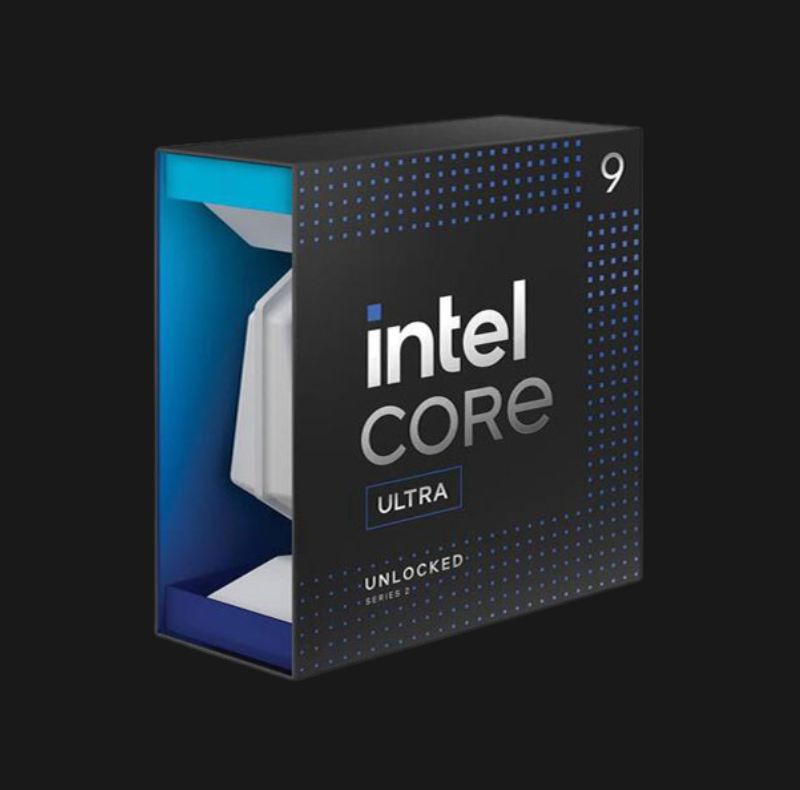

Model – Intel® Core™ Ultra 9 285 Processor
Architecture – Arrow Lake
CPU Cores – 24 (8 Performance-Cores + 16 Efficient-Cores)
Threads – 24
Max Turbo Frequency – Up to 5.7 GHz
Intel® Thermal Velocity Boost – Up to 5.7 GHz
Intel® Turbo Boost Max Technology 3.0 – Up to 5.6 GHz
Performance-Core Max Turbo Frequency – 5.5 GHz
Integrated Graphics
GPU – Intel® Graphics
Graphics Base Frequency – 300 MHz
Graphics Max Dynamic Frequency – 2.0 GHz
Xe-Cores – 4
GPU AI Performance – 8 TOPS (INT8)
Graphics Output – DisplayPort 2.1, HDMI 2.1, eDP 1.4b
Maximum Resolution –
HDMI: Up to 8K @ 60Hz (HDMI 2.1 FRL) / 4K @ 60Hz (TMDS)
DisplayPort: Up to 8K @ 60Hz
eDP: Up to 4K @ 60Hz
DirectX Support – DirectX 12
OpenGL Support – OpenGL 4.5
OpenCL Support – OpenCL 3.0
Intel® Quick Sync Video – Yes
Maximum Displays – 4
AI & NPU
NPU – Intel® AI Boost
NPU Performance – 13 TOPS (INT8)
Intel® Deep Learning Boost (GPU) – Yes
PCI Express & Connectivity
PCI Express Version – PCIe 5.0 & PCIe 4.0
Maximum PCIe Lanes – 24
DMI Revision – 4.0
Intel® Thunderbolt™ 4 – Supported
Technologies
Intel® Thread Director – Yes
Intel® Thermal Velocity Boost – Yes
Intel® Turbo Boost Max Technology 3.0 – Yes
Intel® Turbo Boost Technology – 2.0
Intel® Speed Shift Technology – Yes
Intel® SpeedStep Technology – Yes
Intel® Gaussian & Neural Accelerator – 3.5
Instruction Set – 64-bit
Instruction Set Extensions – Intel® SSE4.1, SSE4.2, AVX2
Socket & Thermal
Socket – FCLGA1851
Thermal Solution Specification – PCG 2020A
Maximum Operating Temperature (Tjunction) – 105°C
