Product Collection – Intel® Core™ I5 Processors (14th Gen)
Code Name – Products Formerly Raptor Lake
Vertical Segment – Desktop

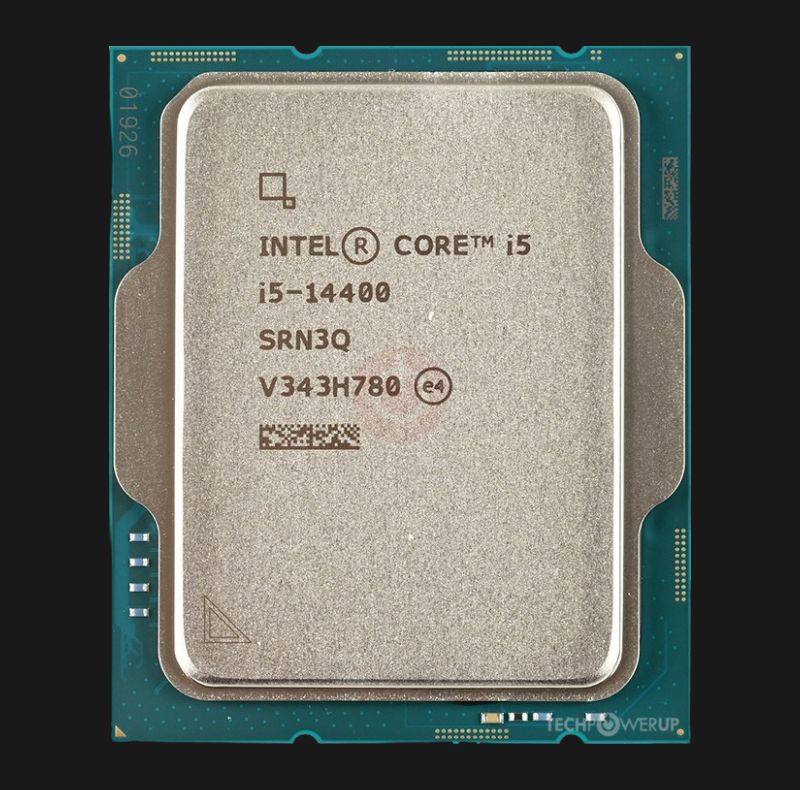

Processor Number – I5 14400
Lithography – Intel 7
Use Conditions – Pc/client/tablet
Total Cores – 10
# Of Performance-cores – 6
# Of Efficient-cores – 4
Total Threads – 16
Max Turbo Frequency – 4.7 Ghz
Performance-core Max Turbo Frequency – 4.7 Ghz
Efficient-core Max Turbo Frequency – 3.5 Ghz
Performance-core Base Frequency – 2.5 Ghz
Efficient-core Base Frequency – 1.8 Ghz
Cache – 20 Mb Intel® Smart Cache
Total L2 Cache – 9.5 Mb
Processor Base Power – 65 W
Maximum Turbo Power – 148 W
Max Memory Size (Dependent On Memory Type) – 192 Gb
Memory Types – Up To Ddr5 4800 Mt/s, Up To Ddr4 3200 Mt/s
Max # Of Memory Channels – 2
Max Memory Bandwidth – 76.8 Gb/s
Gpu Name – Intel® Uhd Graphics 730
Graphics Max Dynamic Frequency – 1.55 Ghz
Graphics Output – Edp 1.4b, Dp 1.4a, Hdmi 2.1
Execution Units – 24
Max Resolution (Hdmi) – 4096 X 2160 @ 60hz
Max Resolution (Dp) – 7680 X 4320 @ 60hz
Max Resolution (Edp – Integrated Flat Panel) – 5120 X 3200 @ 120hz
Directx Support – 12
Opengl Support – 4.5
Opencl Support – 3
Multi-format Codec Engines – 1
Intel® Quick Sync Video – Yes
Intel® Clear Video Hd Technology – Yes
# Of Displays Supported – 4
Device Id – 0x4682 / 0xa782
Direct Media Interface (Dmi) Revision – 4
Max # Of Dmi Lanes – 8
Scalability – 1s Only
Pci Express Revision – 5.0 And 4.0
Pci Express Configurations – Up To 1×16+4, 2×8+4
Max # Of Pci Express Lanes – 20
Sockets Supported – Fclga1700
Max Cpu Configuration – 1
Thermal Solution Specification – Pcg 2020c
Tjunction – 100°c
Package Size – 45.0 Mm X 37.5 Mm
Intel® Gaussian & Neural Accelerator – 3
Intel® Thread Director – Yes
Intel® Deep Learning Boost (Intel® Dl Boost) – Yes
Intel® Speed Shift Technology – Yes
Intel® Turbo Boost Technology – 2
Intel® Hyper-threading Technology – Yes
Intel® 64 – Yes
Instruction Set – 64-bit
Instruction Set Extensions – Intel® Sse4.1, Intel® Sse4.2, Intel® Avx2
Idle States – Yes
Enhanced Intel Speedstep® Technology – Yes
Thermal Monitoring Technologies – Yes
Intel® Volume Management Device (Vmd) – Yes
Intel® Standard Manageability (Ism) – Yes
Intel® Control-flow Enforcement Technology – Yes
Intel® Aes New Instructions – Yes
Secure Key – Yes
Intel® Os Guard – Yes
Execute Disable Bit – Yes
Intel® Boot Guard – Yes
Mode-based Execute Control (Mbec) – Yes
Intel® Virtualization Technology (Vt-x) – Yes
Intel® Virtualization Technology For Directed I/o (Vt-d) – Yes
Intel® Vt-x With Extended Page Tables (Ept) – Yes
