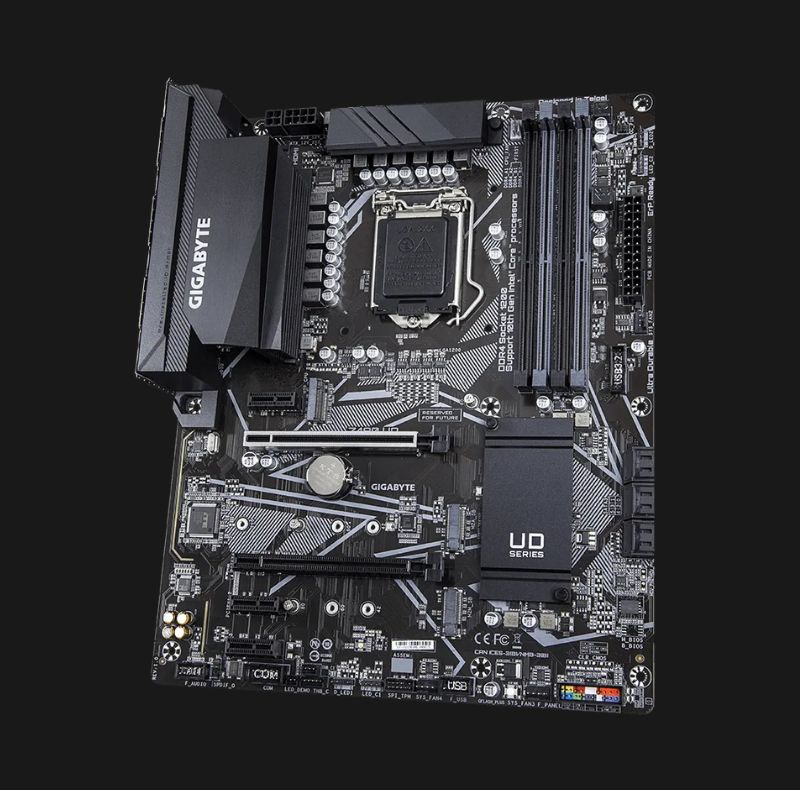

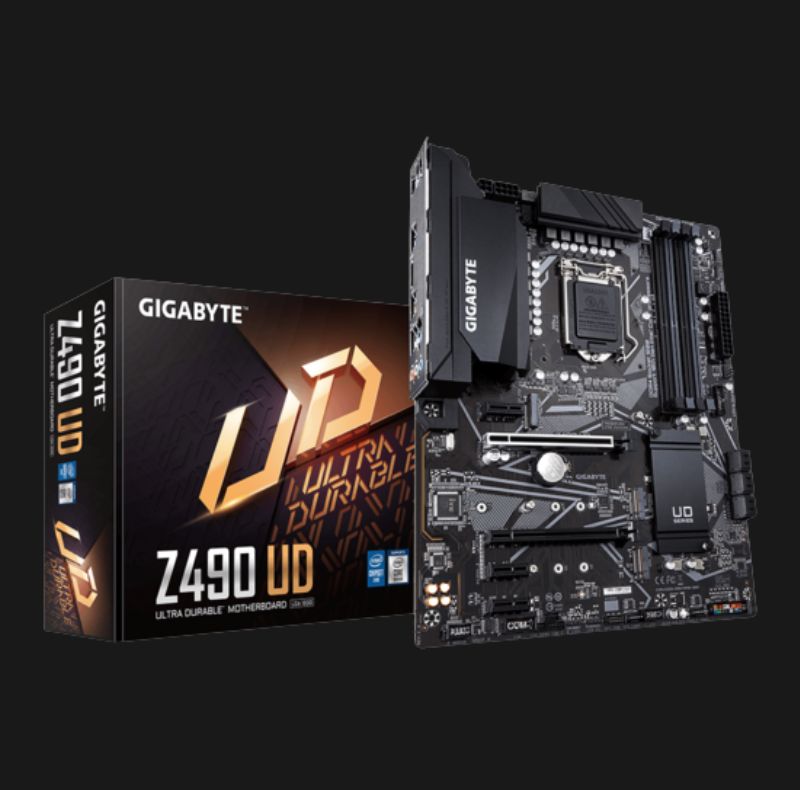

GIGABYTE Z490 UD (REV. 1.0) GAMING MOTHERBOARD (USED)

( 03 Month Warranty )

Cpu

Support For 10th Generation Intel® Core™ I9 Processors/intel® Core™ I7 Processors/intel® Core™ I5 Processors/intel® Core™ I3 Processors/intel® Pentium® Processors/intel® Celeron® Processors In The Lga1200 Package
L3 Cache Varies With Cpu
(Please Refer “Cpu Support List” For More Information.)

Chipset

Intel® Z490 Express Chipset

Memory

Intel® Core™ I9/i7 Processors:
Support For Ddr4 4500(O.c.)/ 4400(O.c.)/ 4300(O.c.)/4266(O.c.) / 4133(O.c.) / 4000(O.c.) / 3866(O.c.) / 3800(O.c.) / 3733(O.c.) / 3666(O.c.) / 3600(O.c.) / 3466(O.c.) / 3400(O.c.) / 3333(O.c.) / 3300(O.c.) / 3200(O.c.) / 3000(O.c.) / 2933 / 2800 / 2666 / 2400 / 2133 Mhz Memory Modules
Intel® Core™ I5/i3/pentium®/celeron® Processors:
Support For Ddr4 2666/2400/2133 Mhz Memory Modules
4 X Ddr4 Dimm Sockets Supporting Up To 128 Gb (32 Gb Single Dimm Capacity) Of System Memory
Dual Channel Memory Architecture
Support For Ecc Un-buffered Dimm 1rx8/2rx8 Memory Modules (Operate In Non-ecc Mode)
Support For Non-ecc Un-buffered Dimm 1rx8/2rx8/1rx16 Memory Modules
Support For Extreme Memory Profile (Xmp) Memory Modules
(Please Refer “Memory Support List” For More Information.)

Onboard Graphics

Integrated Graphics Processor-intel® Hd Graphics Support:
1 X Hdmi Port, Supporting A Maximum Resolution Of 4096×2160@30 Hz
* Support For Hdmi 1.4 Version And Hdcp 2.3.
Maximum Shared Memory Of 512 Mb

Audio

Realtek® Alc887 Codec
High Definition Audio
2/4/5.1/7.1-channel
* To Configure 7.1-channel Audio, You Need To Open The Audio Software And Select Device Advanced Settings > Playback Device To Change The Default Setting First. Please Visit Gigabyte’s Website For Details On Configuring The Audio Software.
Support For S/pdif Out

Lan

Realtek® Gbe Lan Chip (1000 Mbit/100 Mbit)

Expansion Slots

1 X Pci Express X16 Slot, Running At X16 (Pciex16)
* For Optimum Performance, If Only One Pci Express Graphics Card Is To Be Installed, Be Sure To Install It In The Pciex16 Slot.
1 X Pci Express X16 Slot, Running At X4 (Pciex4)
3 X Pci Express X1 Slots
(All Of The Pci Express Slots Conform To Pci Express 3.0 Standard.)
Supports Up To Aspm L1.2 Power Management Protocols.

Multi-graphics Technology

Support For Amd Quad-gpu Crossfire™ And 2-way Amd Crossfire™ Technologies
Storage Interface
1 X M.2 Connector (Socket 3, M Key, Type 2242/2260/2280/22110 Sata And Pcie X4/x2 Ssd Support) (M2a_sb)
1 X M.2 Connector (Socket 3, M Key, Type 2242/2260/2280 Pcie X4/x2 Ssd Support) (M2m_sb)
6 X Sata 6gb/s Connectors
Support For Raid 0, Raid 1, Raid 5, And Raid 10
* Refer To “1-7 Internal Connectors,” For The Installation Notices For The M.2 And Sata Connectors.
Intel® Optane™ Memory Ready
M.2 Connectors Support Up To Aspm L1.2 Pcie Power Management Protocols.

Usb

Chipset:
1 X Usb 3.2 Gen 2 Type-a Port (Red) On The Back Panel
7 X Usb 3.2 Gen 1 Ports (5 Ports On The Back Panel, 2 Ports Available Through The Internal Usb Header)
4 X Usb 2.0/1.1 Ports (2 Ports On The Back Panel, 2 Ports Available Through The Internal Usb Header)
Internal I/o Connectors
1 X 24-pin Atx Main Power Connector
1 X 4-pin Atx 12v Power Connector
1 X 8-pin Atx 12v Power Connector
1 X Cpu Fan Header
4 X System Fan Headers
2 X Addressable Led Strip Headers
2 X Rgb Led Strip Headers
1 X Q-flash Plus Button
6 X Sata 6gb/s Connectors
2 X M.2 Socket 3 Connectors
1 X Front Panel Header
1 X Front Panel Audio Header
1 X S/pdif Out Header
1 X Usb 3.2 Gen 1 Header
1 X Usb 2.0/1.1 Header
1 X Trusted Platform Module Header (For The Gc-tpm2.0 Spi/gc-tpm2.0 Spi 2.0 Module Only)
2 X Thunderbolt™ Add-in Card Connectors
1 X Serial Port Header
1 X Clear Cmos Jumper

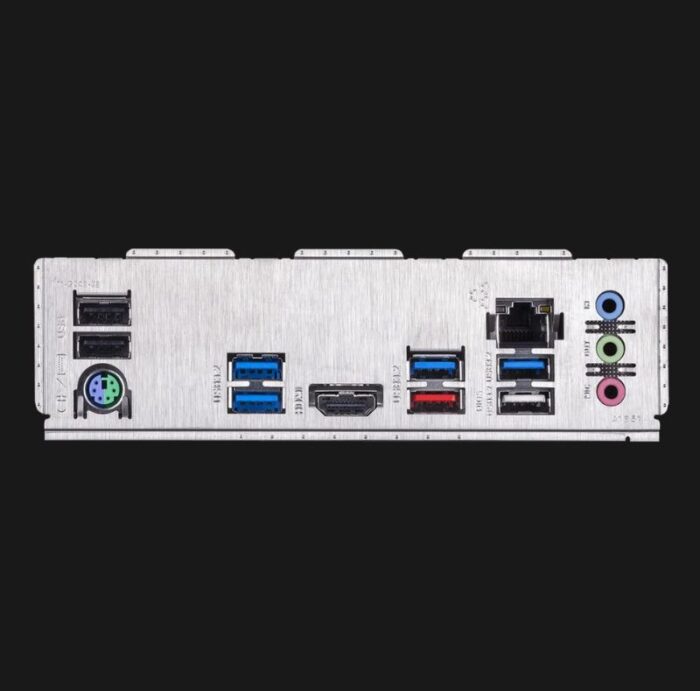

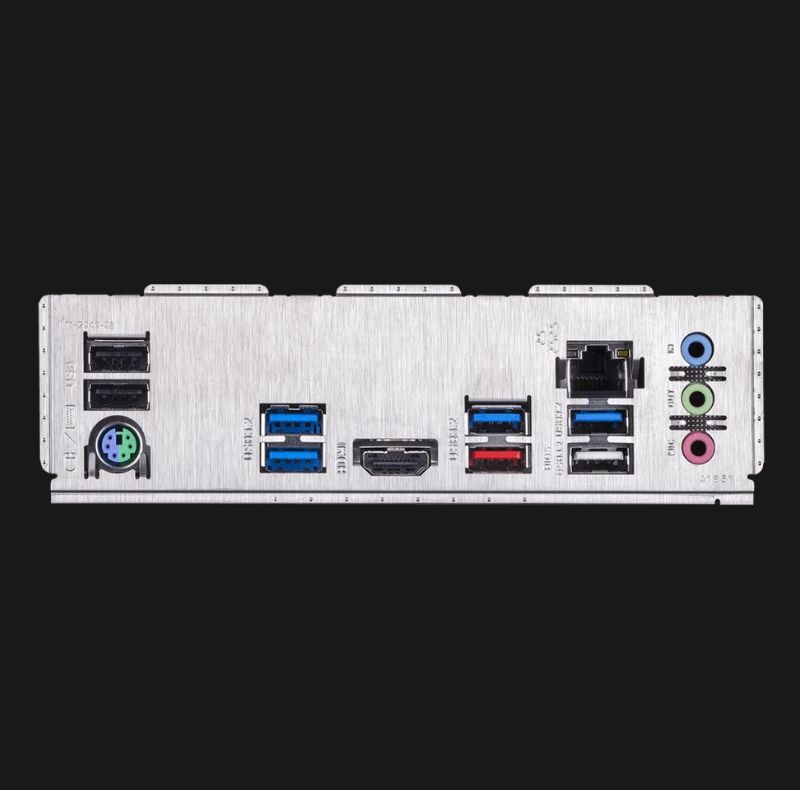

Back Panel Connectors

1 X Ps/2 Keyboard/mouse Port
1 X Hdmi Port
1 X Usb 3.2 Gen 2 Type-a Port (Red)
5 X Usb 3.2 Gen 1 Ports
2 X Usb 2.0/1.1 Ports
1 X Rj-45 Port
3 X Audio Jacks

I/o Controller

Ite® I/o Controller Chip

H/w Monitoring

Voltage Detection
Temperature Detection
Fan Speed Detection
Overheating Warning
Fan Fail Warning
Fan Speed Control
* Whether The Fan Speed Control Function Is Supported Will Depend On The Cooler You Install.

Bios

1 X 256 Mbit Flash
Use Of Licensed Ami Uefi Bios
Pnp 1.0a, Dmi 2.7, Wfm 2.0, Sm Bios 2.7, Acpi 5.0

Unique Features

Support For App Center
* Available Applications In App Center May Vary By Motherboard Model. Supported Functions Of Each Application May Also Vary Depending On Motherboard Specifications.
@bios
Easytune
Fast Boot
Game Boost
On/off Charge
Rgb Fusion
Smart Backup
System Information Viewer
Support For Q-flash Plus
Support For Q-flash
Support For Xpress Install
