(03 Month Warranty)

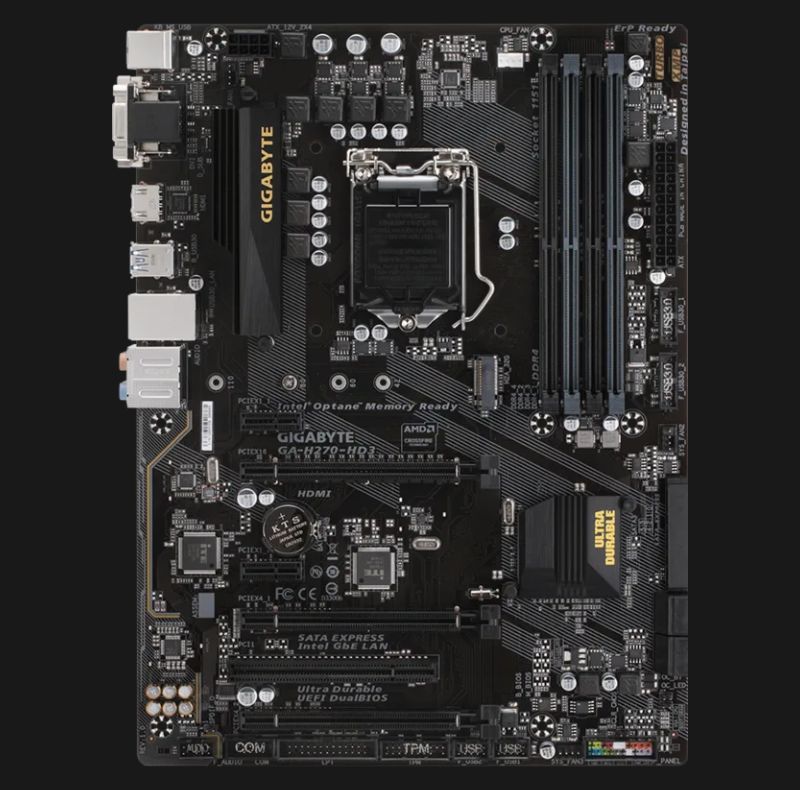

CPU – Support For 7th And 6th Generation Intel® Core™ I7 / I5 / I3 / Pentium® / Celeron® Processors In Lga1151 Package, L3 Cache Varies With CPU
Chipset – Intel® H270 Express Chipset
Memory – 4 X Ddr4 Dimm Slots, Up To 64gb, Dual Channel, Supports 2133 / 2400 Mhz (2400 With 7th Gen CPU), Xmp Support, Ecc & Non-ecc (Non-ecc Mode)
Graphics – Integrated Intel® Hd Graphics, HDMI (4096×2160@24hz), Dvi-d & VGA (1920×1200@60hz), Supports Up To 3 Displays, Max Shared Memory 1gb
Audio – Realtek® Alc887 Codec, High Definition Audio, 2/4/5.1/7.1-channel, S/pdif Out Support
LAN – Intel® Gigabit LAN (10/100/1000 Mbit)
Expansion Slots – 1 X Pcie X16 (X16), 2 X Pcie X16 (X4), 2 X Pcie X1, 1 X Pci, Pcie 3.0 Support, AMD Crossfire™ Support
Storage – 1 X M.2 (NVMe & Sata, 2242/2260/2280/22110), 1 X Sata Express, 6 X Sata 6gb/s, Raid 0/1/5/10 Support
USB – 8 X USB 3.1 Gen 1 (4 Rear + 4 Internal), 6 X USB 2.0 (2 Rear + 4 Internal)
Internal Connectors – 24-PIN Atx Power, 8-PIN CPU Power, M.2 Slot, Sata Express, 6 X Sata, CPU Fan, 3 X System Fans, Front Panel, Audio, S/pdif, USB Headers, Tpm, Serial & Parallel Headers, Clear Cmos
Back Panel – Ps/2, VGA, Dvi-d, HDMI, 4 X USB 3.1, 2 X USB 2.0, Rj-45 LAN, 6 X Audio Jacks
I/o Controller – Ite® I/o Controller Chip
