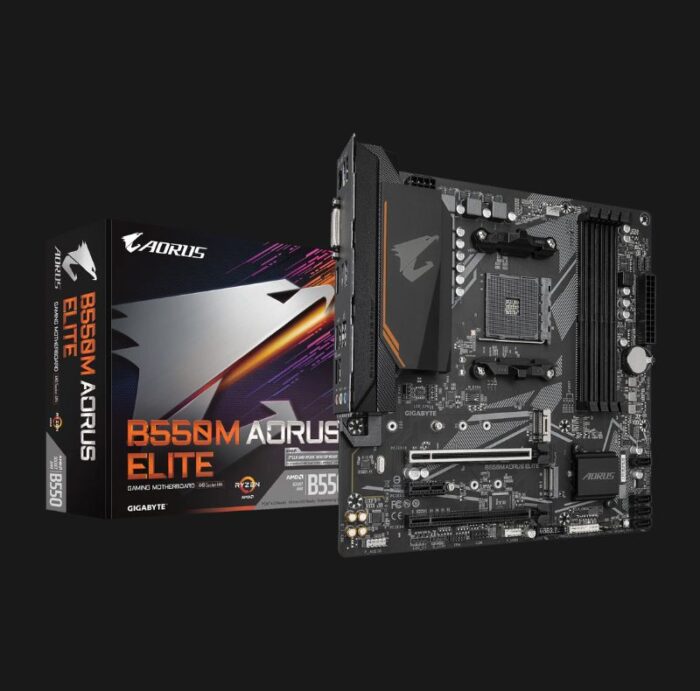

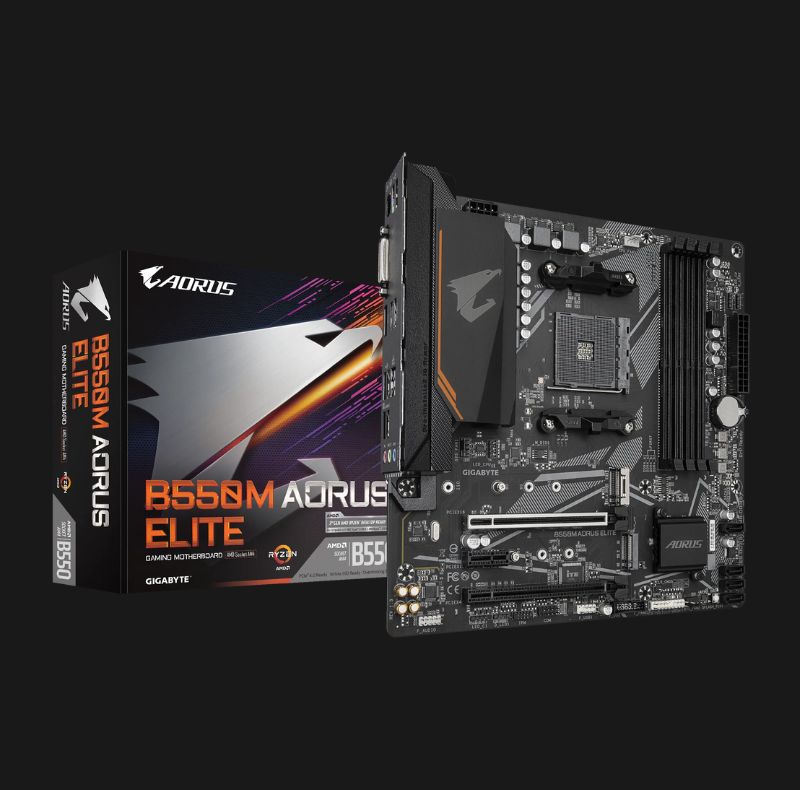

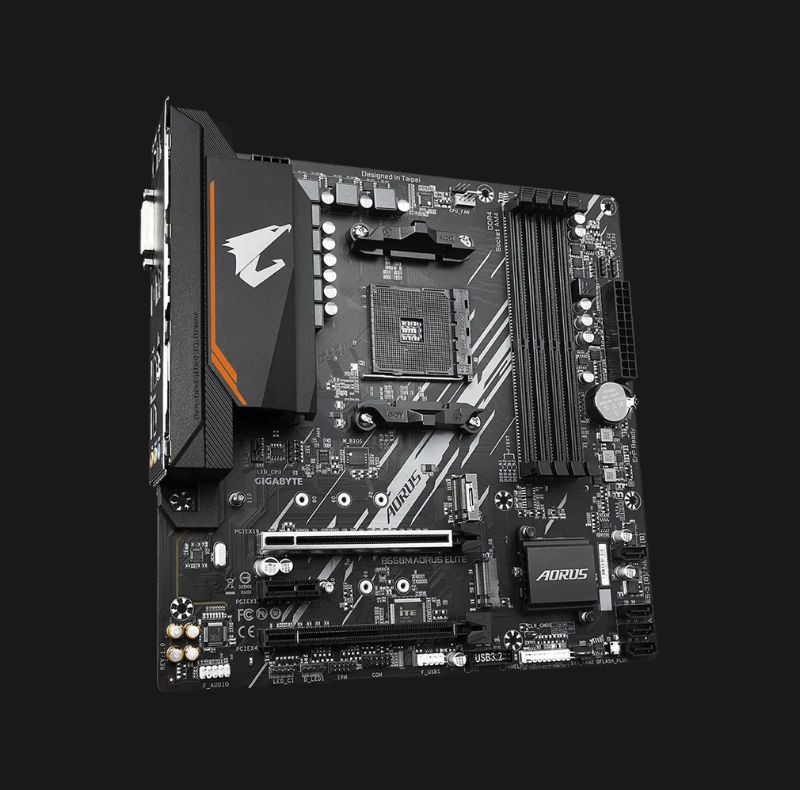

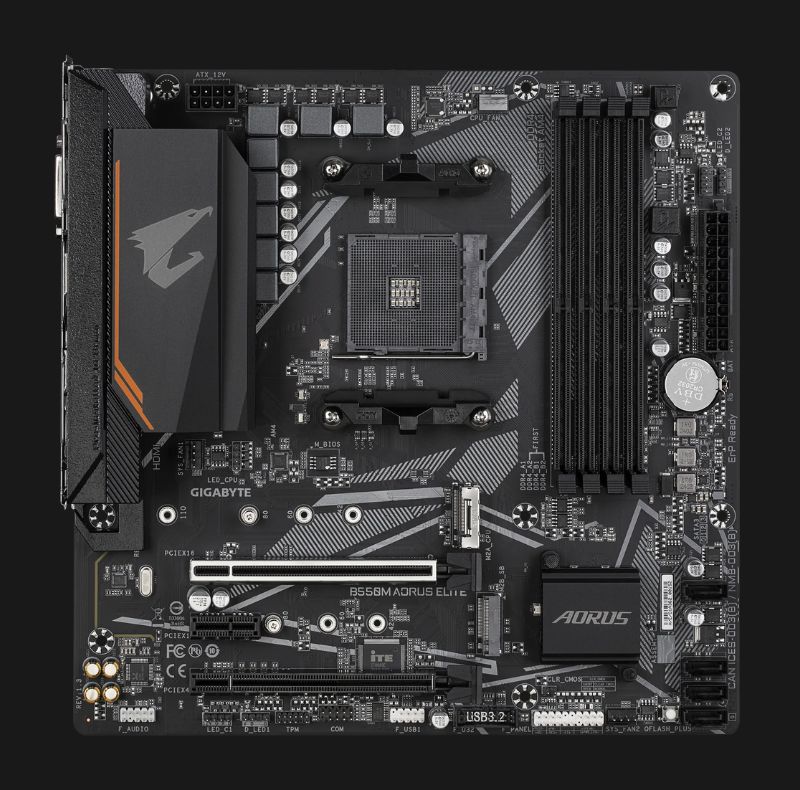

GIGABYTE B550M AORUS ELITE (REV. 1.3) MOTHERBOARD

(2 Years Warranty)

Cpu

Amd Socket Am4, Support For: Amd Ryzen™ 5000 Series/ Ryzen™ 5000 G-series/ Ryzen™ 4000 G-series, Ryzen™ 3000 Series And Ryzen™ 3000 G-series Processors
(Please Refer “Cpu Support List” For More Information.)

Chipset

Amd B550 Chipset

Memory

4 X Ddr4 Dimm Sockets Supporting Up To 128 Gb (32 Gb Single Dimm Capacity) Of System Memory
Support For Ddr4 4733(O.c.) / 4600(O.c.) / 4400(O.c.) / 4266(O.c.) / 4133(O.c.) / 4000(O.c.) / 3866(O.c.) / 3733(O.c.) / 3600(O.c.) / 3466(O.c) / 3400(O.c.) / 3200 / 2933 / 2667 / 2400 / 2133 Mhz Memory Modules
Dual Channel Memory Architecture
Support For Ecc Un-buffered Dimm 1rx8/2rx8 Memory Modules*
* Ecc Memory (Ecc Mode) Support Varies By Cpu
Support For Non-ecc Un-buffered Dimm 1rx8/2rx8/1rx16 Memory Modules
Support For Extreme Memory Profile (Xmp) Memory Modules

Onboard Graphics

Integrated Graphics Processor With Amd Radeon™ Graphics Support:

1 X Dvi-d Port, Supporting A Maximum Resolution Of 1920×1200@60 Hz
* The Dvi-d Port Does Not Support D-sub Connection By Adapter.
1 X Hdmi Port, Supporting A Maximum Resolution Of 4096×2160@60 Hz
* Support For Hdmi 2.1 Version, Hdcp 2.3, And Hdr.

Audio

Realtek® Audio Codec
High Definition Audio
2/4/5.1/7.1-channel
* You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-channel Audio, Access The Audio Software For Audio Settings.

Lan

Realtek® Gbe Lan Chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots

1 X Pci Express X16 Slot (Pciex16), Integrated In The Cpu:
Amd Ryzen™ 5000 Series* And Ryzen™ 3000 Series Processors Support Pcie 4.0 X16 Mode
* Actual Support May Vary By Amd Cpu’s Specification.
Amd Ryzen™ 5000 G-series/4000 G-series/3000 G-series Processors Support Pcie 3.0 X16 Mode
* For Optimum Performance, If Only One Pci Express Graphics Card Is To Be Installed, Be Sure To Install It In The Pciex16 Slot.
1 X Pci Express X16 Slot (Pciex4), Integrated In The Chipset:
Supporting Pcie 3.0 X4 Mode
1 X Pci Express X1 Slot (Pciex1), Integrated In The Chipset:
Supporting Pcie 3.0 X1 Mode

Storage Interface

1 X M.2 Connector (M2a_cpu), Integrated In The Cpu, Supporting Socket 3, M Key, Type 2242/2260/2280/22110 Ssds:
Amd Ryzen™ 5000 Series And Ryzen™ 3000 Series Processors Support Sata And Pcie 4.0 X4/x2 Ssds
Amd Ryzen™ 5000 G-series/4000 G-series/3000 G-series Processors Support Sata And Pcie 3.0 X4/x2 Ssds
1 X M.2 Connector (M2b_sb), Integrated In The Chipset, Supporting Socket 3, M Key, Type 2242/2260/2280 Ssds:
Supporting Sata And Pcie 3.0 X2 Ssds
4 X Sata 6gb/s Connectors, Integrated In The Chipset:
Support For Raid 0, Raid 1, And Raid 10

Usb

4 X Usb 3.2 Gen 1 Ports On The Back Panel
Chipset:
2 X Usb 3.2 Gen 1 Ports Available Through The Internal Usb Header
6 X Usb 2.0/1.1 Ports (4 Ports On The Back Panel, 2 Ports Available Through The Internal Usb Header)

Internal I/o Connectors

1 X 24-pin Atx Main Power Connector
1 X 8-pin Atx 12v Power Connector
1 X Cpu Fan Header
2 X System Fan Headers
2 X Addressable Led Strip Headers
2 X Rgb Led Strip Headers
1 X Cpu Cooler Led Strip/rgb Led Strip Header
2 X M.2 Socket 3 Connectors
4 X Sata 6gb/s Connectors
1 X Front Panel Header
1 X Front Panel Audio Header
1 X Usb 3.2 Gen 1 Header
1 X Usb 2.0/1.1 Header
1 X Trusted Platform Module (Tpm) Header (2×6 Pin, For The Gc-tpm2.0_s Module Only)
1 X Serial Port Header
1 X Clear Cmos Jumper
1 X Q-flash Plus Button

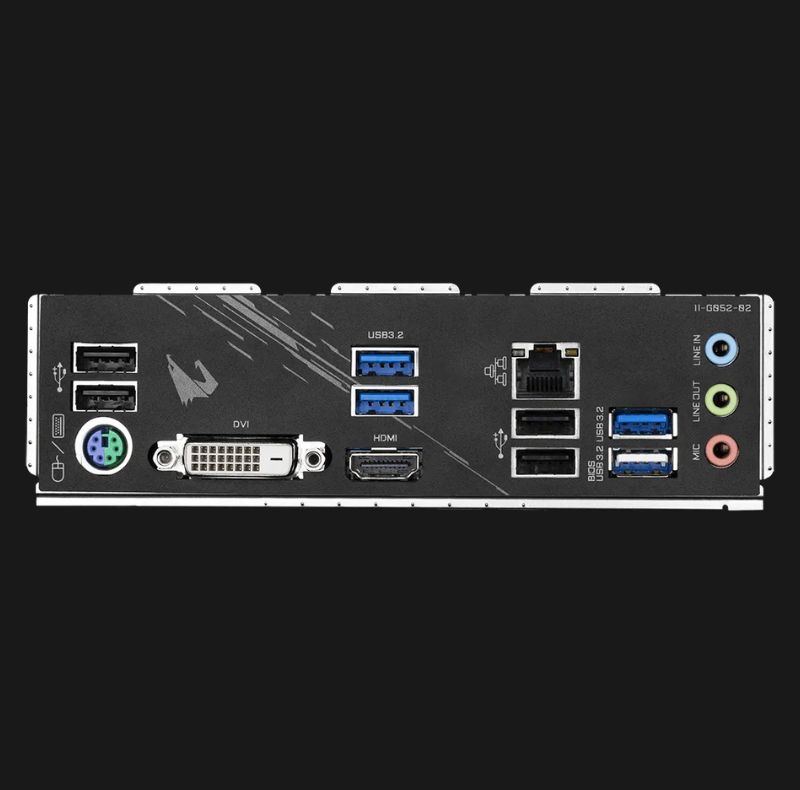

Back Panel Connectors

1 X Ps/2 Keyboard/mouse Port
1 X Dvi-d Port
1 X Hdmi Port
4 X Usb 3.2 Gen 1 Ports
4 X Usb 2.0/1.1 Ports
1 X Rj-45 Port
3 X Audio Jacks

I/o Controller

Ite® I/o Controller Chip

H/w Monitoring

Voltage Detection
Temperature Detection
Fan Speed Detection
Overheating Warning
Fan Fail Warning
Fan Speed Control
* Whether The Fan Speed Control Function Is Supported Will Depend On The Cooler You Install.

Bios

1 X 128 Mbit Flash
Use Of Licensed Ami Uefi Bios
Pnp 1.0a, Dmi 2.7, Wfm 2.0, Sm Bios 2.7, Acpi 5.0

Unique Features

Support For App Center
* Available Applications In App Center May Vary By Motherboard Model. Supported Functions Of Each Application May Also Vary Depending On Motherboard Specifications.
@bios
Easytune
Rgb Fusion
Smart Backup
System Information Viewer
Support For Q-flash Plus
Support For Q-flash

Form Factor

Micro Atx Form Factor; 24.4cm X 24.4cm
