( 03 Month Warranty )
Cpu
Support For 10th Generation Intel® Core™ I9 Processors/intel® Core™ I7 Processors/intel® Core™ I5 Processors/intel® Core™ I3 Processors/intel® Pentium® Processors/intel® Celeron® Processors In The Lga1200 Package
L3 Cache Varies With Cpu
(Please Refer To “Cpu Support List” For More Information.)
Chipset
Intel® B460 Express Chipset
Memory
Intel® Core™ I9/i7 Processors:
Support For Ddr4 2933/2666/2400/2133 Mhz Memory Modules
Intel® Core™ I5/i3/pentium®/celeron® Processors:
Support For Ddr4 2666/2400/2133 Mhz Memory Modules
4 X Ddr4 Dimm Sockets Supporting Up To 128 Gb (32 Gb Single Dimm Capacity) Of System Memory
Dual Channel Memory Architecture
Support For Ecc Un-buffered Dimm 1rx8/2rx8 Memory Modules (Operate In Non-ecc Mode)
Support For Non-ecc Un-buffered Dimm 1rx8/2rx8/1rx16 Memory Modules
Support For Extreme Memory Profile (Xmp) Memory Modules
(Please Refer To “Memory Support List” For More Information.)
Onboard Graphics
Integrated Graphics Processor-intel® Hd Graphics Support:
1 X Dvi-d Port, Supporting A Maximum Resolution Of 1920×1200@60 Hz
* The Dvi-d Port Does Not Support D-sub Connection By Adapter.
1 X Displayport, Supporting A Maximum Resolution Of 4096×2304@60 Hz
* Support For Displayport 1.4 Version, Hdcp 2.3, And Hdr.
1 X Hdmi Port, Supporting A Maximum Resolution Of 4096×2160@30 Hz
* Support For Hdmi 1.4 Version And Hdcp 2.3.
Support For Up To 3 Displays At The Same Time
Maximum Shared Memory Of 512 Mb
Audio
Realtek® Alc1200 Codec
High Definition Audio
2/4/5.1/7.1-channel
Lan
Intel® Gbe Lan Chip (1000 Mbit/100 Mbit)
Expansion Slots
1 X Pci Express X16 Slot, Running At X16 (Pciex16)
* For Optimum Performance, If Only One Pci Express Graphics Card Is To Be Installed, Be Sure To Install It In The Pciex16 Slot.
1 X Pci Express X16 Slot, Running At X4 (Pciex4)
1 X Pci Express X1 Slot
(All Of The Pci Express Slots Conform To Pci Express 3.0 Standard.)
1 X M.2 Socket 1 Connector For The Wireless Communication Module (M2_wifi)
Supports Up To Aspm L1.2 Power Management Protocols.
Storage Interface
1 X M.2 Connector (Socket 3, M Key, Type 2242/2260/2280/22110 Pcie X4/x2 Ssd Support) (M2q_sb)
1 X M.2 Connector (Socket 3, M Key, Type 2242/2260/2280 Sata And Pcie X4/x2 Ssd Support) (M2a_sb)
6 X Sata 6gb/s Connectors
Support For Sata Raid 0, Raid 1, Raid 5, And Raid 10
* Refer To “1-7 Internal Connectors,” For The Installation Notices For The M.2 And Sata Connectors.
Intel® Optane™ Memory Ready
* System Acceleration With Intel® Optane™ Memory Enabled On The M2q_sb Connector Only.
M.2 Connectors Support Up To Aspm L1.2 Pcie Power Management Protocols.
Usb
Chipset:
1 X Usb Type-c™ Port On The Back Panel, With Usb 3.2 Gen 1 Support
5 X Usb 3.2 Gen 1 Ports (3 Ports On The Back Panel, 2 Ports Available Through The Internal Usb Header)
2 X Usb 2.0/1.1 Ports On The Back Panel
Chipset+usb 2.0 Hub:
4 X Usb 2.0/1.1 Ports Available Through The Internal Usb Headers
Internal I/o Connectors
1 X 24-pin Atx Main Power Connector
1 X 8-pin Atx 12v Power Connector
1 X Cpu Fan Header
3 X System Fan Headers
2 X Addressable Led Strip Headers
2 X Rgb Led Strip Headers
6 X Sata 6gb/s Connectors
2 X M.2 Socket 3 Connectors
1 X Front Panel Header
1 X Front Panel Audio Header
1 X Usb 3.2 Gen 1 Header
2 X Usb 2.0/1.1 Headers
2 X Thunderbolt™ Add-in Card Connectors
1 X Trusted Platform Module Header (For The Gc-tpm2.0 Spi/gc-tpm2.0 Spi 2.0 Module Only)
1 X Serial Port Header
1 X Clear Cmos Jumper
1 X Q-flash Plus Button

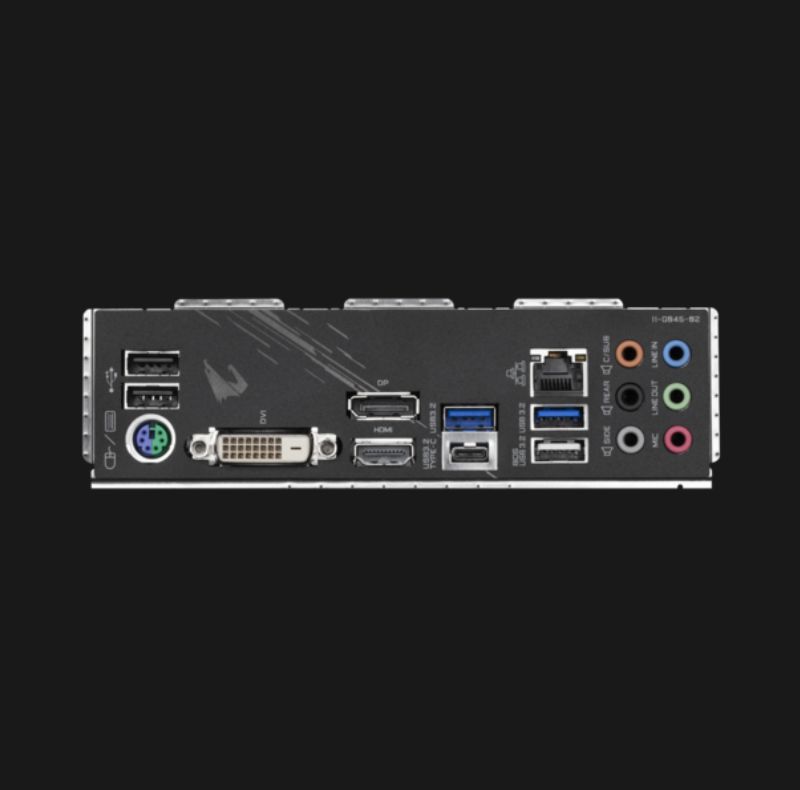

Back Panel Connectors
1 X Ps/2 Keyboard/mouse Port
1 X Dvi-d Port
1 X Displayport
1 X Hdmi Port
1 X Usb Type-c™ Port, With Usb 3.2 Gen 1 Support
3 X Usb 3.2 Gen 1 Ports
2 X Usb 2.0/1.1 Ports
1 X Rj-45 Port
6 X Audio Jacks
I/o Controller
Ite® I/o Controller Chip
H/w Monitoring
Voltage Detection
Temperature Detection
Fan Speed Detection
Overheating Warning
Fan Fail Warning
Fan Speed Control
* Whether The Fan Speed Control Function Is Supported Will Depend On The Cooler You Install.
Bios
1 X 128 Mbit Flash
Use Of Licensed Ami Uefi Bios
Pnp 1.0a, Dmi 2.7, Wfm 2.0, Sm Bios 2.7, Acpi 5.0
Unique Features
Support For App Center
* Available Applications In App Center May Vary By Motherboard Model. Supported Functions Of Each Application May Also Vary Depending On Motherboard Specifications.
@bios
Easytune
Fast Boot
Game Boost
On/off Charge
Rgb Fusion
Smart Backup
System Information Viewer
Support For Q-flash Plus
Support For Q-flash
Support For Xpress Install
