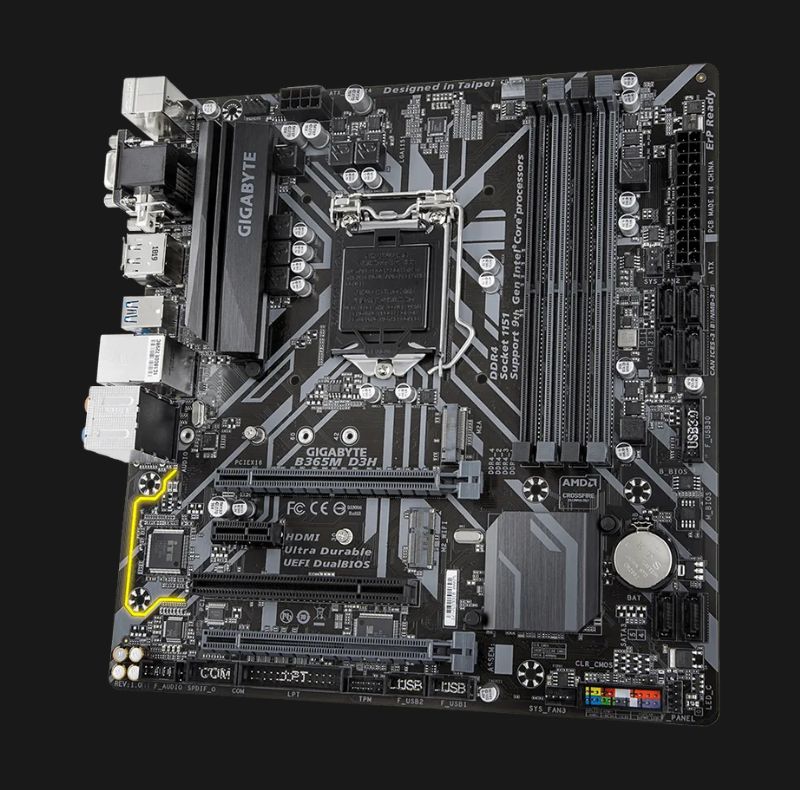

GIGABYTE B365M-D3H GAMING MOTHERBOARD (USED)

(03 Month Warranty)

Cpu – Support For 9th And 8th Generation Intel® Core™ I9 Processors / Intel® Core™ I7 Processors / Intel® Core™ I5 Processors / Intel® Core™ I3 Processors / Intel® Pentium® Processors / Intel® Celeron® Processors In The Lga1151 Package
L3 Cache Varies With Cpu
(Please Refer To “Cpu Support List” For More Information.)

Chipset – Intel® B365 Express Chipset

Memory – 4 X Ddr4 Dimm Sockets Supporting Up To 64 Gb Of System Memory
Dual Channel Memory Architecture
Support For Ddr4 2666 / 2400 / 2133 Mhz Memory Modules
Support For Ecc Un-buffered Dimm 1rx8 / 2rx8 Memory Modules (Operate In Non-ecc Mode)
Support For Non-ecc Un-buffered Dimm 1rx8 / 2rx8 / 1rx16 Memory Modules
Support For Extreme Memory Profile (Xmp) Memory Modules
To Support 2666 Mhz Or Xmp Memory, A 9th Or 8th Gen Intel® Core™ I9/i7/i5 Processor Is Required
(Please Refer To “Memory Support List” For More Information.)

Onboard Graphics – Integrated Graphics Processor – Intel® Hd Graphics Support
1 X D-sub Port, Supporting A Maximum Resolution Of 1920×1200@60 Hz
1 X Dvi-d Port, Supporting A Maximum Resolution Of 1920×1200@60 Hz
Dvi-d Port Does Not Support D-sub Connection By Adapter
1 X Displayport, Supporting A Maximum Resolution Of 4096×2304@60 Hz
Supports Displayport 1.2, Hdcp 2.2, And Hdr
1 X Hdmi Port, Supporting A Maximum Resolution Of 4096×2160@30 Hz
Supports Hdmi 1.4 And Hdcp 2.2
Support For Up To 3 Displays Simultaneously
Maximum Shared Memory Of 1 Gb
Actual Support May Vary By Cpu

Audio – Realtek® Alc892 Codec
High Definition Audio
2/4/5.1/7.1-channel
Support For S/pdif Out

Lan – Intel® Gbe Lan Chip (10/100/1000 Mbit)

Expansion Slots –
1 X Pci Express X16 Slot, Running At X16 (Pciex16)
1 X Pci Express X16 Slot, Running At X4 (Pciex4)
1 X Pci Express X1 Slot
All Pcie Slots Conform To Pcie 3.0 Standard
1 X Pci Slot
1 X M.2 Socket 1 Connector For Wireless Communication Module (M2_wifi)

Multi-graphics Technology – Support For Amd Quad-gpu Crossfire™ And 2-way Amd Crossfire™ Technologies

Storage Interface –
1 X M.2 Connector (Socket 3, M Key, Type 2242 / 2260 / 2280 / 22110 Sata And Pcie X4/x2 Ssd Support)
6 X Sata 6gb/s Connectors
Support For Raid 0, Raid 1, Raid 5, And Raid 10
Refer To “1-7 Internal Connectors” For Installation Notices For M.2 And Sata
Intel® Optane™ Memory Ready

Usb –
Chipset:
1 X Usb Type-c™ Port On The Back Panel (Usb 3.1 Gen 1 Support)
3 X Usb 3.1 Gen 1 Ports On The Back Panel
2 X Usb 3.1 Gen 1 Ports Available Via Internal Usb Header
2 X Usb 2.0/1.1 Ports On The Back Panel
4 X Usb 2.0/1.1 Ports Available Via Internal Usb Headers

Internal I/o Connectors –
1 X 24-pin Atx Main Power Connector
1 X 8-pin Atx 12v Power Connector
1 X Cpu Fan Header
3 X System Fan Headers
1 X Rgb Led Strip Header
1 X M.2 Socket 3 Connector
6 X Sata 6gb/s Connectors
1 X Front Panel Header
1 X Front Panel Audio Header
1 X S/pdif Out Header
1 X Usb 3.1 Gen 1 Header
2 X Usb 2.0/1.1 Headers
1 X Trusted Platform Module (Tpm) Header (2×6 Pin, For Gc-tpm2.0_s Module Only)
1 X Serial Port Header
1 X Parallel Port Header
1 X Clear Cmos Jumper

Back Panel Connectors –
1 X Ps/2 Keyboard/mouse Port
1 X D-sub Port
1 X Dvi-d Port
1 X Displayport
1 X Hdmi Port
1 X Usb Type-c™ Port (Usb 3.1 Gen 1 Support)
3 X Usb 3.1 Gen 1 Ports
2 X Usb 2.0/1.1 Ports
1 X Rj-45 Port
6 X Audio Jacks

I/o Controller – Ite® I/o Controller Chip

H/w Monitoring –
Voltage Detection
Temperature Detection
Fan Speed Detection
Overheating Warning
Fan Fail Warning
Fan Speed Control
Fan Speed Control Support Depends On The Installed Cooler

Bios –
2 X 128 Mbit Flash
Licensed Ami Uefi Bios
Support For Dualbios™
Pnp 1.0a, Dmi 2.7, Wfm 2.0, Sm Bios 2.7, Acpi 5.0

Unique Features –
Support For App Center
Available Applications In App Center May Vary By Model And Specifications
@bios
Autogreen
Cloud Station
Easytune
Easy Raid
Fast Boot
Game Boost
On/off Charge
Platform Power Management
Rgb Fusion
Smart Backup
Smart Keyboard
System Information Viewer
Usb Blocker
Support For Q-flash
Support For Xpress Install
