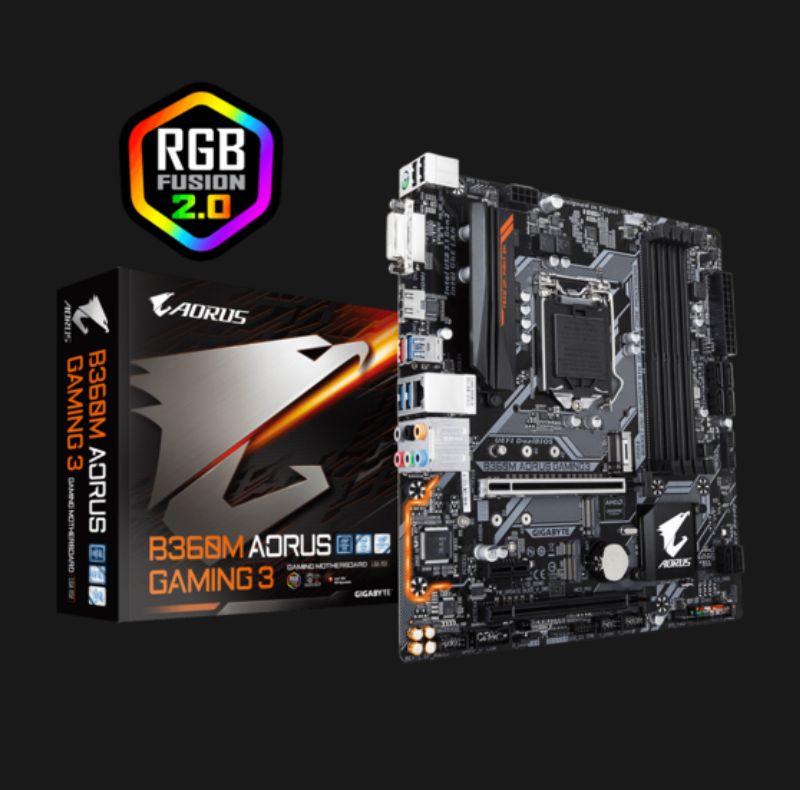

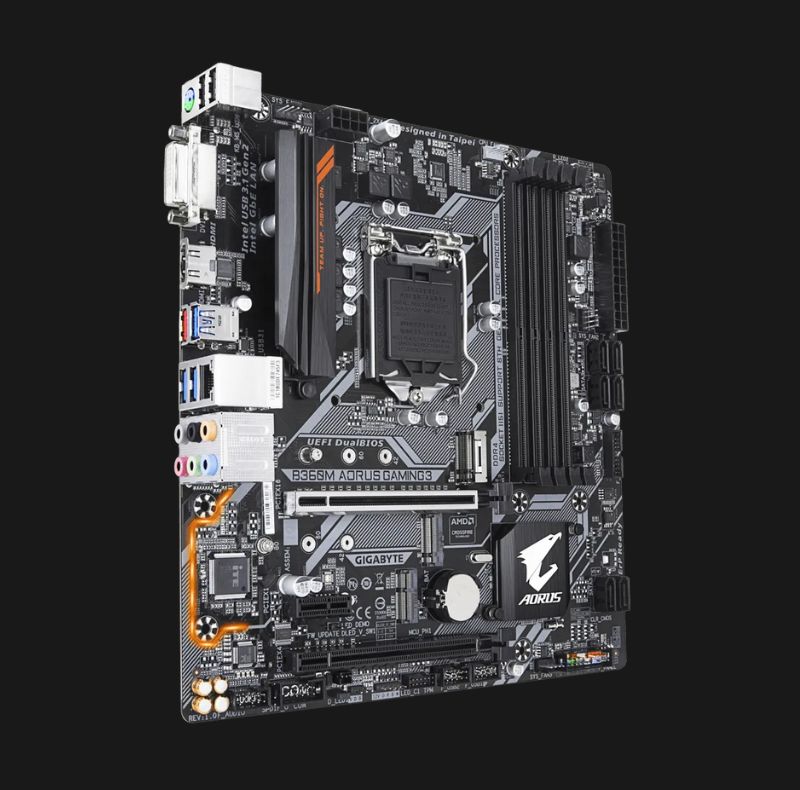

GIGABYTE B360M AORUS GAMING 3 (REV. 1.0) MOTHERBOARD (USED)

( 03 Month Warranty )

Cpu

Support For 9th And 8th Generation Intel® Core™ I7 Processors/intel® Core™ I5 Processors/intel® Core™ I3 Processors/intel® Pentium® Processors/intel® Celeron® Processors In The Lga1151 Package
L3 Cache Varies With Cpu
(Please Refer “Cpu Support List” For More Information.)

Chipset

Intel® B360 Express Chipset

Memory

4 X Ddr4 Dimm Sockets Supporting Up To 64 Gb Of System Memory
Dual Channel Memory Architecture
Support For Ddr4 2666/2400/2133 Mhz Memory Modules
Support For Ecc Un-buffered Dimm 1rx8/2rx8 Memory Modules (Operate In Non-ecc Mode)
Support For Non-ecc Un-buffered Dimm 1rx8/2rx8/1rx16 Memory Modules
Support For Extreme Memory Profile (Xmp) Memory Modules
* To Support 2666 Mhz Or Xmp Memory, You Must Install A 9th Or 8th Generation Intel® Core™ I9/i7/i5 Processor.

(Please Refer “Memory Support List” For More Information.)

Onboard Graphics

Integrated Graphics Processor-intel® Hd Graphics Support:

1 X Dvi-d Port, Supporting A Maximum Resolution Of 1920×1200@60 Hz
* The Dvi-d Port Does Not Support D-sub Connection By Adapter.
1 X Hdmi Port, Supporting A Maximum Resolution Of 4096×2160@30 Hz
* Support For Hdmi 1.4 Version And Hdcp 2.2.
Maximum Shared Memory Of 1 Gb
Actual Support May Vary By Cpu

Audio

Realtek® Alc892 Codec
High Definition Audio
2/4/5.1/7.1-channel
Support For S/pdif Out

Lan

Intel® Gbe Lan Chip (10/100/1000 Mbit)

Expansion Slots

1 X Pci Express X16 Slot, Running At X16 (Pciex16)
* For Optimum Performance, If Only One Pci Express Graphics Card Is To Be Installed, Be Sure To Install It In The Pciex16 Slot.
1 X Pci Express X16 Slot, Running At X4 (Pciex4)
1 X Pci Express X1 Slot
(All Of The Pci Express Slots Conform To Pci Express 3.0 Standard.)
1 X M.2 Socket 1 Connector For An Intel® Cnvi Wireless Module Only (Cnvi)
* The Cnvi Connector Shares Bandwidth With The F_usb2 Header. When A Wifi Module Is Populated In The Cnvi Connector, One Of The Usb 2.0/1.1 Ports Routed To The F_usb2 Header Becomes Unavailable.

Multi-graphics Technology

Support For Amd Quad-gpu Crossfire™ And 2-way Amd Crossfire™ Technologies

Storage Interface Chipset:

1 X M.2 Connector (Socket 3, M Key, Type 2242/2260/2280/22110 Pcie X4/x2 Ssd Support) (M2q_32g)
1 X M.2 Connector (Socket 3, M Key, Type 2242/2260/2280 Sata And Pcie X2 Ssd Support) (M2p_16g)
6 X Sata 6gb/s Connectors
* Refer To “1-7 Internal Connectors,” For The Installation Notices For The M.2 And Sata Connectors.
Intel® Optane™ Memory Ready
* System Acceleration With Intel® Optane™ Memory Enabled On The M2q_32g Connector Only.

Usb Chipset:

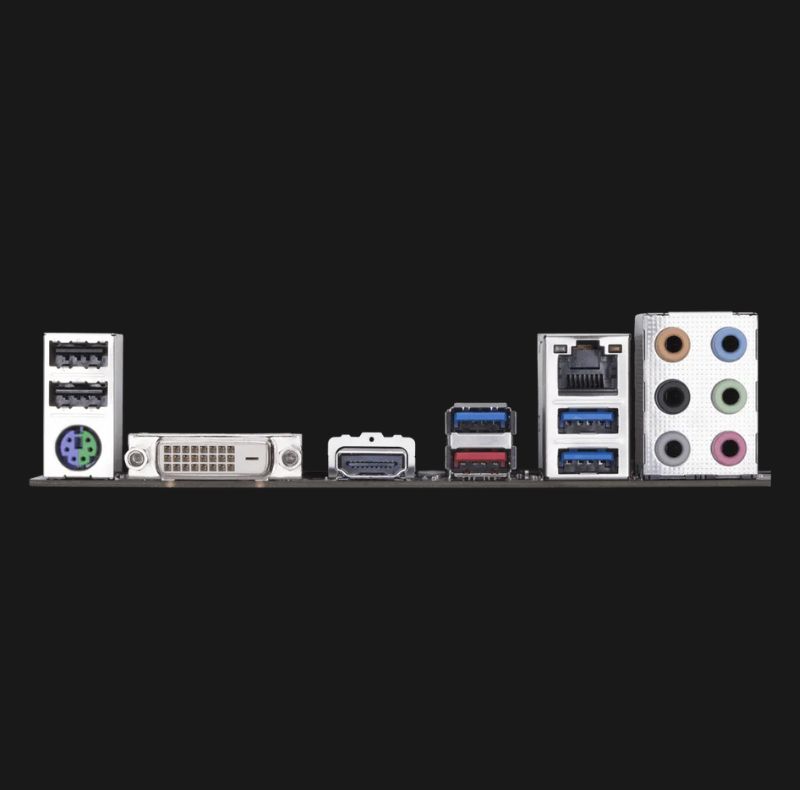

1 X Usb 3.1 Gen 2 Type-a Port (Red) On The Back Panel
5 X Usb 3.1 Gen 1 Ports (3 Ports On The Back Panel, 2 Ports Available Through The Internal Usb Header)
6 X Usb 2.0/1.1 Ports (2 Ports On The Back Panel, 4 Ports Available Through The Internal Usb Headers)
* The Cnvi Connector Shares Bandwidth With The F_usb2 Header. When A Wi-fi Module Is Populated In The Cnvi Connector, One Of The Usb 2.0/1.1 Ports Routed To The F_usb2 Header Becomes Unavailable.

Internal I/o Connectors

1 X 24-pin Atx Main Power Connector
1 X 8-pin Atx 12v Power Connector
1 X Cpu Fan Header
3 X System Fan Headers
2 X Digital Led Strip Headers
2 X Digital Led Strip Power Select Jumpers
2 X Rgb (Rgbw) Led Strip Headers
6 X Sata 6gb/s Connectors
2 X M.2 Socket 3 Connectors
1 X Front Panel Header
1 X Front Panel Audio Header
1 X S/pdif Out Header
1 X Usb 3.1 Gen 1 Header
2 X Usb 2.0/1.1 Headers
1 X Trusted Platform Module (Tpm) Header (2×6 Pin, For The Gc-tpm2.0_s Module Only)
1 X Serial Port Header
1 X Clear Cmos Jumper
