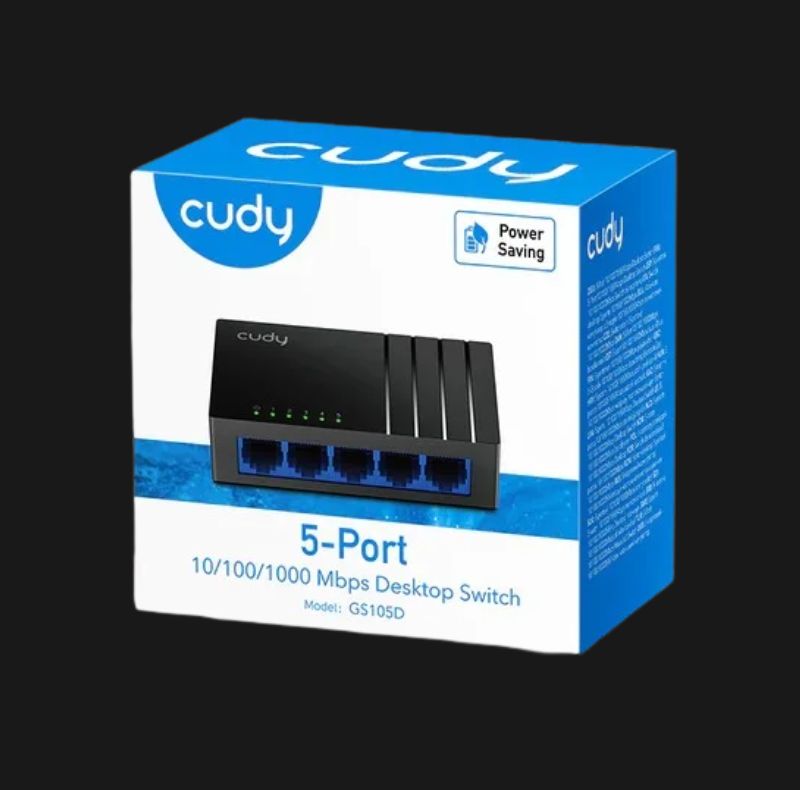

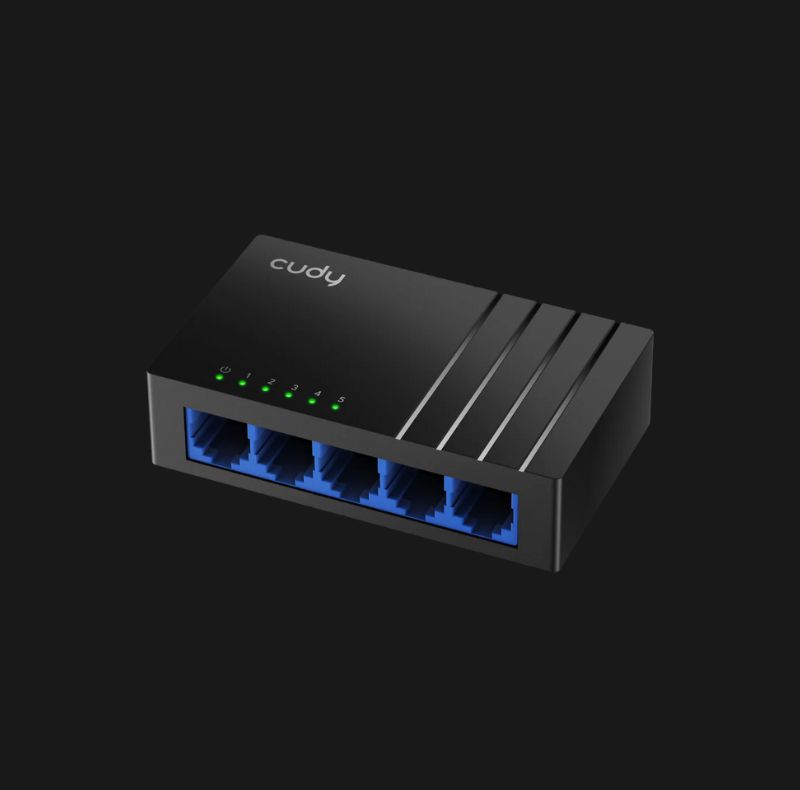

Model Version – Gs105d 4.0
Interfaces – 5x Gigabit Rj45 Ports
Led Indicators –
Power
Speed/link/act (Each Ethernet Port)
Power Input – Dc Jack
Performance (Copper Speed And Distance) –
Cat. 3 Or Higher Cable: 100 Meters @ 10 Mbps
Cat. 5 Or Higher Cable: 100 Meters @ 100 Mbps
Cat. 5e Or Higher Cable: 140 Meters @ 1000 Mbps (1 Gbps)
Mac Address Table – 2048
Max Switching Capacity – 10 Gbps
Max Forwarding Rate – 7.44 Mpps
Jumbo Frame – 15 Kb
Packet Buffer – 3 Mbit
Power Saving Feature – Basic Power Saving: True
Power Method – Dc
Dc Power Input – 5v ⎓ 0.55a
Power Adapter –
Input: 100–240v~, 50/60hz
Output: 5v ⎓ 0.55a
Max Power Consumption – 2w
Idle Power Consumption – 1.4w
Switching Protocols Supported –
Ieee 802.3i 10base-t
Ieee 802.3u 100base-tx
Ieee 802.3ab 1000base-t
Ieee 802.3x Flow Control
Reliability – Ems Compliance –
Iec/en 61000-4-2 (Level 2 Esd): Contact: 4kv, Air: 8kv
Iec/en 61000-4-5 (Level 3 Surge): 2kv
Environmental Operating Conditions –
Operating Temperature: 0°c ~ 40°c (32°f ~ 104°f)
Storage Temperature: -40°c ~ 70°c (-40°f ~ 158°f)
Operating Humidity: 10% ~ 90% (Non-condensing)
Storage Humidity: 5% ~ 90% (Non-condensing)
Mechanical Dimensions –
Size: 88 × 52.5 × 24 Mm (3.46 × 2.07 × 0.94 Inches)
Weight: 52 G (1.83 Oz.)
Casing Material: Plastic
Installation Options – Desktop Or Wall-mount
