(03 Month Warranty)

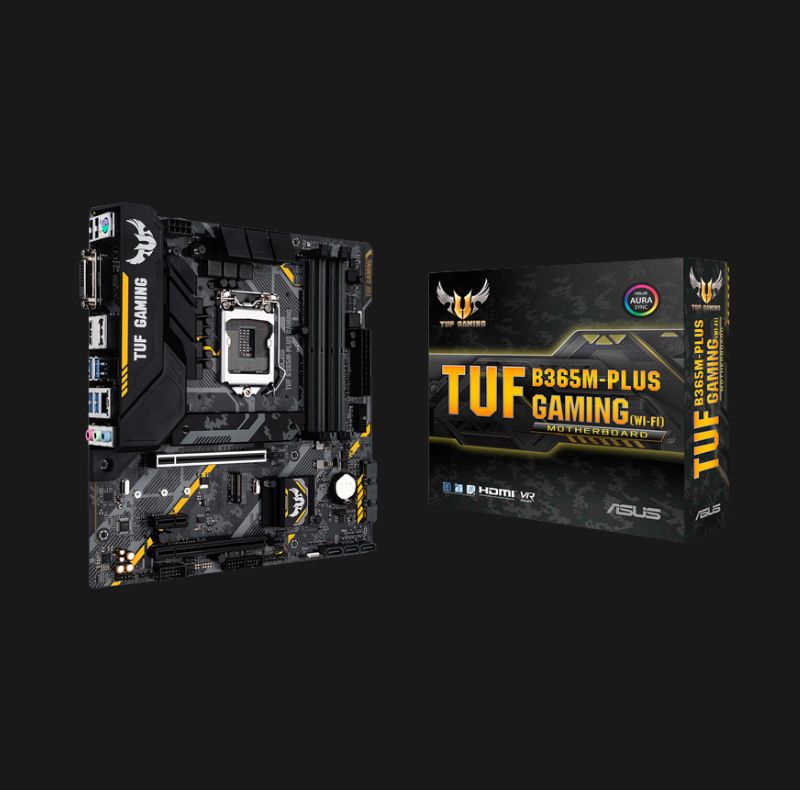

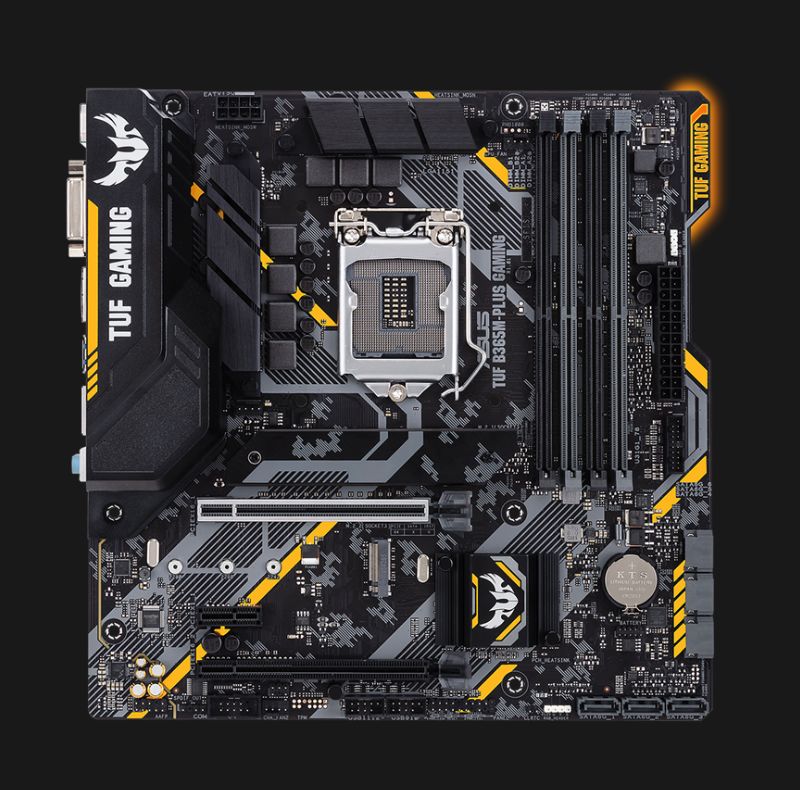

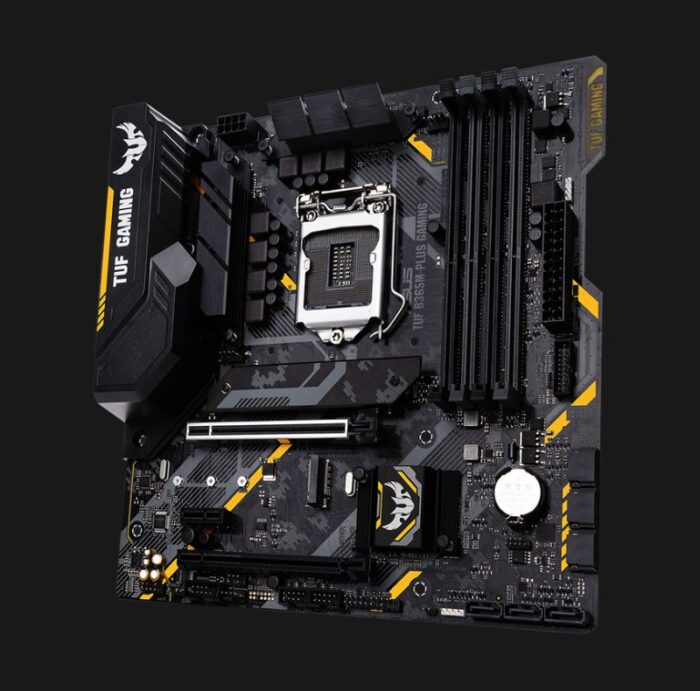

Model – Tuf B365m-plus Gaming
Cpu – Intel® Socket 11519th / 8th Gen Intel® Core™, Pentium® Gold And Celeron® Processors,supports Intel® 14nm Cpu,supports Intel® Turbo Boost Technology 2.0,* The Intel® Turbo Boost Technology 2.0 Support Depends On The Cpu Types.,* Refer To Www.asus.com For Cpu Support List
Chipset – Intel® B365
Memory – Intel® B365 Chipset,* The Maximum Memory Frequency Supported Varies By Processor,4 X Dimm, Max. 64gb, Ddr4 2666/2400/2133 Mhz Non-ecc, Un-buffered Memory,dual Channel Memory Architecture,supports Intel® Extreme Memory Profile (Xmp),* Refer To Www.asus.com For The Memory Qvl (Qualified Vendors Lists).,** Ddr4 2666mhz And Higher Memory Modules Will Run At Max. 2666mhz On Intel® 8th Gen. 6-core Or Higher Processors.
Graphic – Supports Displayport 1.2 With Max. Resolution 4096 X 2304 @ 60 Hz,integrated Graphics Processor- Intel® Hd Graphics Support,multi-vga Output Support : Hdmi/dvi-d/displayport Ports,- Supports Hdmi With Max. Resolution 4096 X 2160 @ 30hz,- Supports Dvi-d With Max. Resolution 1920 X 1200 @ 60hz,maximum Shared Memory Of 1024 Mb (For Igpu Exclusively),supports Intel® Intru™ 3d, Quick Sync Video, Clear Video Hd Technology, Insider™,supports Up To 3 Displays Simultaneously
Multi-gpu Support – Supports Amd Crossfirex™ Technology
Expansion Slots – 1 X Pcie 3.0 X16 (X16 Mode),1 X Pcie 3.0 X16 (Max At X4 Mode),1 X Pcie 3.0/2.0 X1,bundle A Pcie To M.2 Wifi Card Comes With Realtek Wireless-8821ce Wi-fi Module
Storage – Intel® B365 Chipset : ,1 X M.2 Socket 3, With M Key, Type 2242/2260/2280 Storage Devices Support (Sata & Pcie 3.0 X 4 Mode),1 X M.2 Socket 3, With M Key, Type 2242/2260/2280 Storage Devices Support (Pcie 3.0 X 4 Mode),6 X Sata 6gb/s Port(S), Gray,support Raid 0, 1, 5, 10,intel® Optane™ Memory Ready
Lan – Intel® I219v, 1 X Gigabit Lan, Tuf Lan Guard
Audio – Realtek® Alc12008-channel High Definition Audio Codec,- Supports : Jack-detection, Front Panel Jack-retasking,audio Feature :,- Audio Shielding: Ensures Precision Analog/digital Separation And Greatly Reduced Multi-lateral Interference,- Dedicated Audio Pcb Layers: Separate Layers For Left And Right Channels To Guard The Quality Of The Sensitive Audio Signals,- Premium Japanese Audio Capacitors: Provide Warm, Natural And Immersive Sound With Exceptional Clarity And Fidelity,* Choose The Chassis With Hd Audio Module In Front Panel To Support 8-channel Audio Output.
Usb Ports – Intel® B365 Chipset :,6 X Usb 3.1 Gen 1 Port(S) (4 At Back Panel, Blue, 2 At Mid-board),6 X Usb 2.0/1.1 Port(S) (2 At Back Panel, , 4 At Mid-board)
Back I/o Ports – 4 X Usb 3.1 Gen 1 Type-a Up To 5gbps,1 X 8-channel Audio I/o,1 X Ps/2 Keyboard/mouse Combo Port(S),1 X Dvi-d,1 X Displayport,1 X Hdmi,1 X Lan (Rj45) Port(S),2 X Usb 2.0
Internal I/o Ports – 1 X Usb 3.1 Gen 1(Up To 5gbps) Connector(S) Support(S) Additional 2 Usb 3.1 Gen 1 Port(S) (19-pin, Moss Green),2 X M.2 Socket 3 For M Key, Type 2242/2260/2280 Devices,1 X Addressable Rgb Header,1 X 8-pin Eatx 12v Power Connectors,1 X Aura Rgb Strip Header,2 X Usb 2.0 Connector(S) Support(S) Additional 4 Usb 2.0 Port(S),1 X Com Port(S) Connector(S),6 X Sata 6gb/s Connector(S),1 X Cpu Fan Connector(S),2 X Chassis Fan Connector(S),1 X S/pdif Out Header(S),1 X 24-pin Eatx Power Connector(S),1 X Front Panel Audio Connector(S) (Aafp),1 X Clear Cmos Jumper(S),1 X System Panel Connector
Form Factor – 9.6 Inch X 9.5 Inch ( 24.4 Cm X 24.1 Cm ),matx Form Factor
