( 03 Month Warranty )

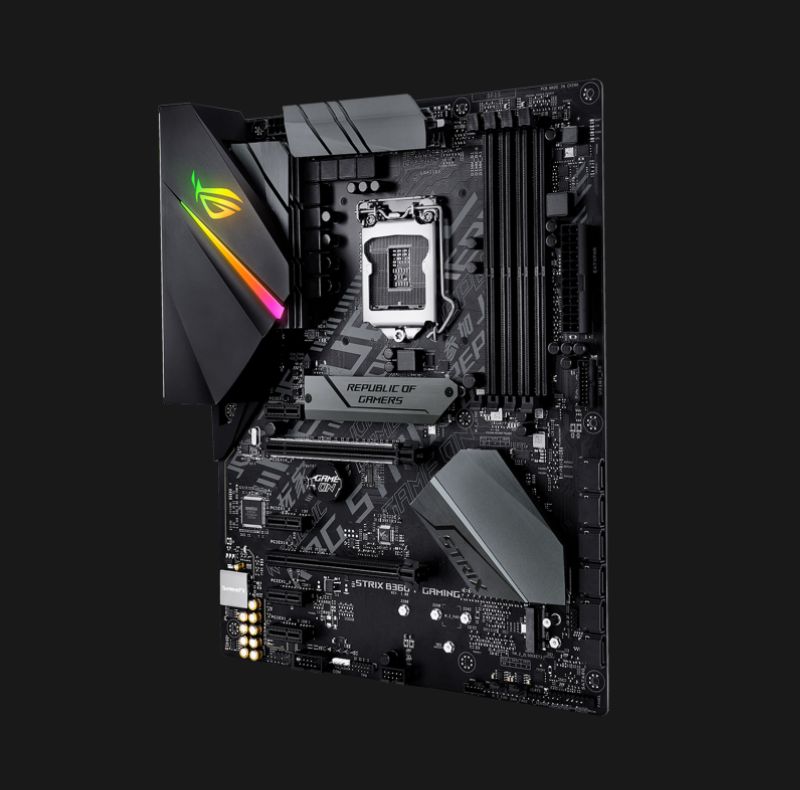

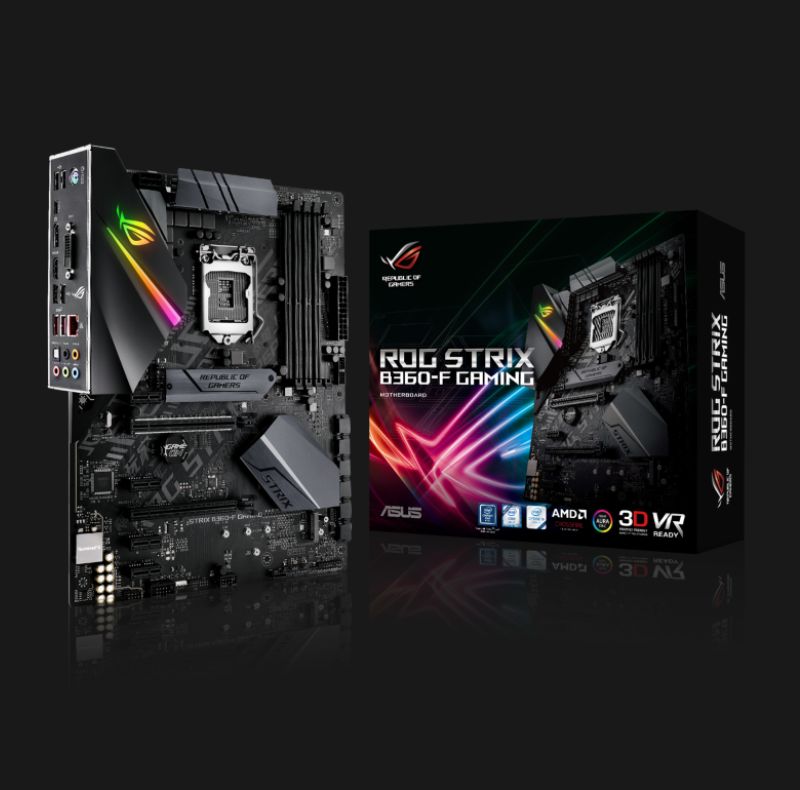

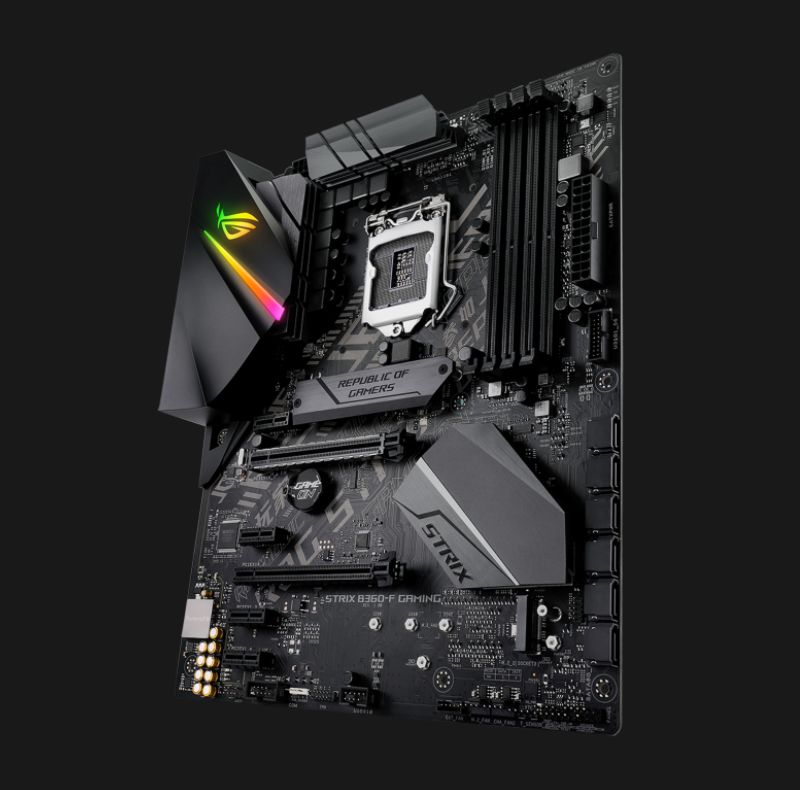

Model – ROG STRIX B360-F
Cpu – Intel® Socket 11519th / 8th Gen Intel® Core™, Pentium® Gold And Celeron® Processors , Supports Intel® 14nm Cpu , Supports Intel® Turbo Boost Technology 2.0
Chipset – Intel® B360
Memory – 4 X Dimm, Max. 64gb, Ddr4 2666/2400/2133 Mhz Non-ecc, Un-buffered Memory , Supports Intel® Extreme Memory Profile (Xmp) , Dual Channel Memory Architecture
Graphic – Integrated Graphics Processor- Intel® Hd Graphics Support , Multi-vga Output Support : Hdmi/dvi-d/displayport Ports , Multi-gpu Support , Supports Amd 2-way Crossfirex Technology
Expansion Slots – 8th Generation Intel® Core™ Processor , 4 X Pcie 3.0/2.0 X1 *3 , 1 X Pcie 3.0/2.0 X16 (X16 Mode) , 1 X Pcie 3.0/2.0 X16 (X4 Mode) *2
Storage – Intel® Optane™ Memory Ready *5
Intel® B360 Chipset – 1 X M.2 Socket 3, With M Key, Type 2242/2260/2280 Storage Devices Support (Sata & Pcie 3.0 X 2 Mode)*4 , 1 X M.2 Socket 3, With M Key, Type 2242/2260/2280 Storage Devices Support (Pcie 3.0 X 4 Mode) , 6 X Sata 6gb/s Port(S) , Intel® Rapid Storage Technology Supports
Lan – Intel® I219v, 1 X Gigabit Lan Controller(S), Dual Interconnect Between The Integrated Media Access Controller (Mac) And Physical Layer (Phy) , Anti-surge Languard , Rog Gamefirst Technology
Audio – Rog Supremefx8-channel High Definition Audio Codec S1220a
– Dual Headphone Amplifiers
– Impedance Sense For Front And Rear Headphone Outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High Quality120dbsnr Stereo Playback Outputand113dbsnr Recording Input
– Supremefx Shielding Technology
– Supports Up To 32-bit/192khz Playback *6
Audio Feature :
– Optical S/pdif Out Port(S) At Back Panel
– Sonic Radar Iii
– Sonic Studio Iii + Sonic Studio Link
Usb Ports :
-1 X Usb 3.1 Gen 2 Port(S) (1 At Back Panel, Black, Usb Type-ctm, Support 3a Power Output)
-2 X Usb 3.1 Gen 2 Port(S) (2 At Back Panel, Red, Type-a, Support 3a Power Output)
Intel® B360 Chipset :
-6 X Usb 2.0 Port(S) (4 At Back Panel, Black, 2 At Mid-board)
-2 X Usb 3.1 Gen 1 Port(S) (2 At Mid-board)
Rog Exclusive Features :
– Rog Ramcache Ii
– Rog Clonedrive
– Gamefirst Iv
– Rog Cpu-z
– Pre-mounted I/o Shield
– Overwolf
– Rog Aura
Special Features :
– Fan Xpert4
– Fan Xpert 4 Featuring Fan Auto Tuning Function And Multiple Thermistors Selection For Optimized System Cooling Control
Gamer´s Guardian :
– Esd Guards On Lan, Audio, Kbms And Usb3.1/3.0/2.0 Ports
– Dram Overcurrent Protection
– Stainless Steel Back I/o
– Highly Durable Components
– Safeslot
Aura :
– Aura Lighting Control
– Aura Rgb Strip Headers
– Aura Lighting Effects Synchronization With Compatible Asus Rog Devices
Asus Exclusive Features :
– Ai Suite 3
– Ai Charger
Asus Ez Diy :
– Asus Crashfree Bios 3
– Asus Ez Flash 3
Asus Q-design :
– Asus Q-led (Cpu, Dram, Vga, Boot Device Led)
– Asus Q-slot
– Asus Q-dimm
Gaming Aesthetics :
– 3d Printing Friendly
– Aura-rgb Lighting
– Digi+vrm

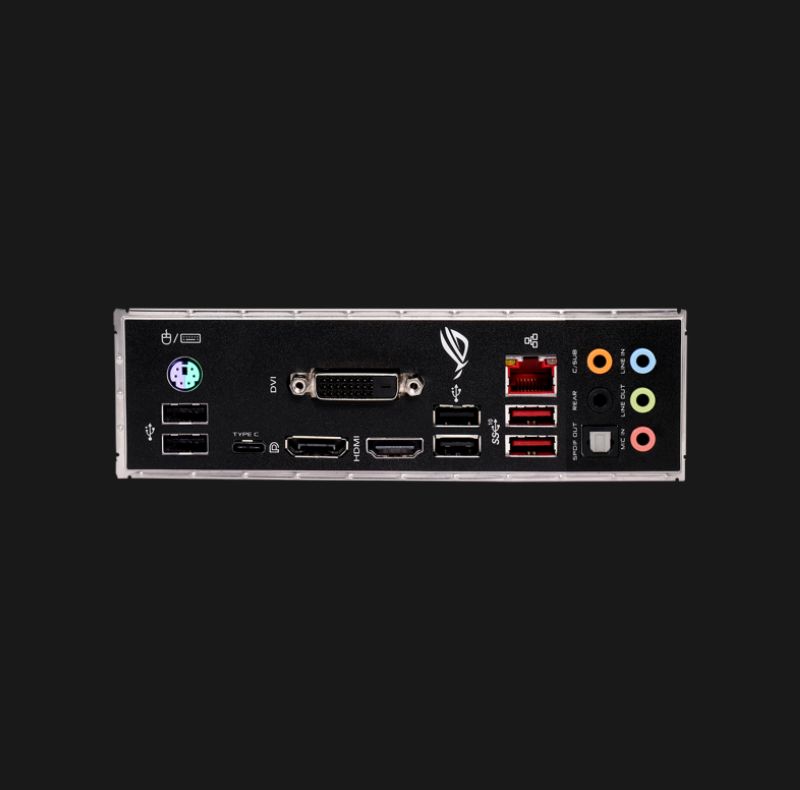

Back I/o Ports :
-1 X Usb 3.1 Gen 2 (Black)usb Type-ctm,
-1 X Ps/2 Keyboard/mouse Combo Port(S)
-1 X Dvi-d
-1 X Displayport
-1 X Hdmi
-1 X Lan (Rj45) Port(S)
-2 X Usb 3.1 Gen 2 (Red)type-a
-4 X Usb 2.0
-1 X Optical S/pdif Out
-5 X Audio Jack(S)
Internal I/o Ports :
-1 X Com Port Header
-1 X Aafp Connector
-2 X 3d Mount Screw Port(S)
-1 X Aura Rgb Strip Header(S)
-1 X Usb 3.1 Gen 1(Up To 5gbps) Connector(S) Support(S) Additional 2 Usb 3.1 Gen 1 Port(S)
-1 X Usb 2.0 Connector(S) Support(S) Additional 2 Usb 2.0 Port(S)
-1 X M.2 Socket 3 With M Key, Type 2242/2260/2280 Storage Devices Support (Sata & Pcie 3.0 X2 Mode)
-1 X M.2 Socket 3 With M Key, Type 2242/2260/2280 Storage Devices Support (Pcie 3.0 X 4 Mode)
-6 X Sata 6gb/s Connector(S)
-1 X M.2_fan Connector
-1 X Cpu Fan Connector(S)
-1 X Cpu Opt Fan Connector(S)
-2 X Chassis Fan Connector(S)
-1 X Aio Pump Connector
-1 X 24-pin Eatx Power Connector(S)
-1 X 8-pin Atx 12v Power Connector(S)
-1 X System Panel(S)
-1 X 5-pin Ext_fan(Extension Fan) Connector
-1 X Thermal Sensor Connector(S)
-1 X Clear Cmos Jumper(S)
-1 X 14-1 Pin Tpm Connector
Bios – 1 X 128 Mb Flash Rom, Uefi Ami Bios, Pnp, Sm Bios 3.1, Acpi 6.1, Multi-language Bios, Asus Ez Flash 3, Crashfree Bios 3, Secure Erase, User Profile, F6 Qfan Control, F3 My Favorites, Last Modified Log, F12 Printscreen, , F4 Aura On/off And F9 Search
Operating System – Windows® 10 64-bit
Form Factor – Atx Form Factor
