(03 Month Warranty)

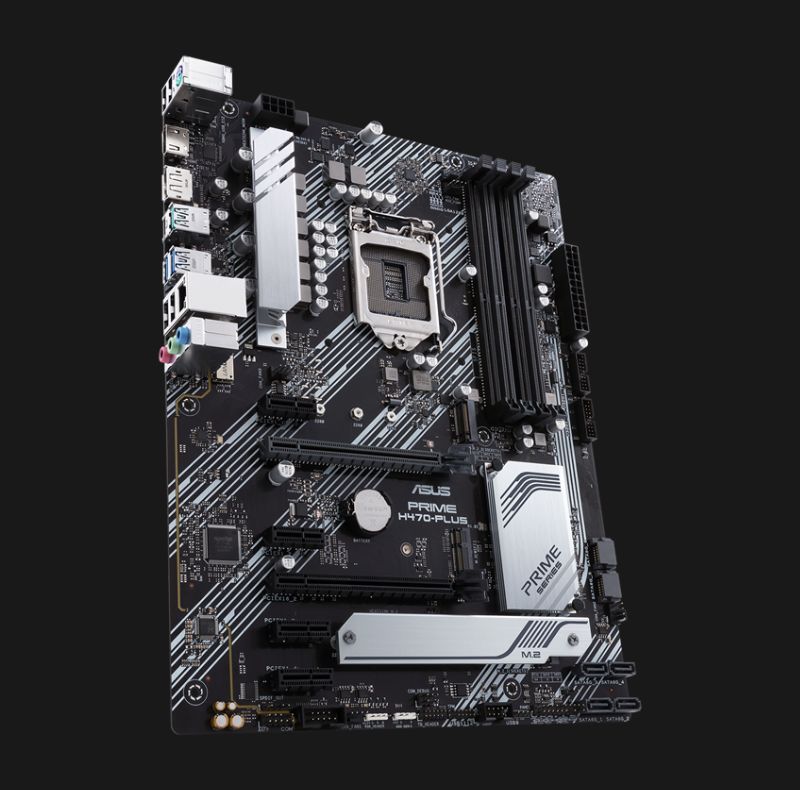

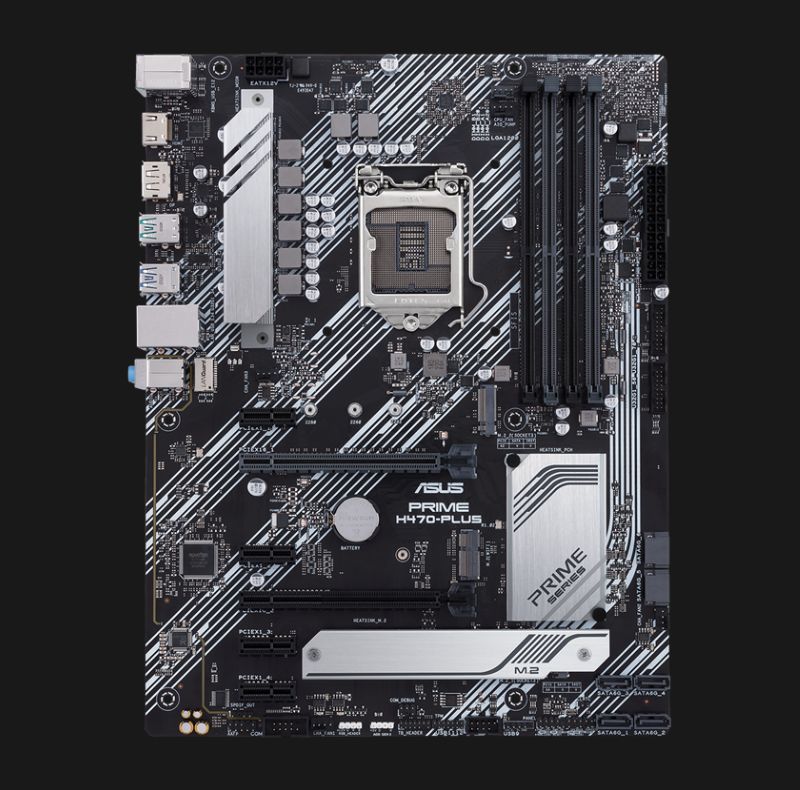

Model – Prime H470-plus
Cpu
Socket – Intel® Socket 1200
Cpu Support – 10th Gen Intel® Core™, Pentium® Gold, And Celeron® Processors
Technology Support – Intel® Turbo Boost 2.0 & Turbo Boost Max 3.0 (Depends On Cpu)
Process Node Support – Supports Intel® 14nm Cpus
Chipset
Chipset – Intel® H470
Memory
Memory Slots – 4 X Ddr4 Dimm
Max Capacity – Up To 128gb
Memory Support – Ddr4 2933/2800/2666/2400/2133 Mhz (Non-ecc, Un-buffered)*
Architecture – Dual Channel
Features – Intel® Xmp Support, Asus Optimem
*2933 Mhz Support Only On I9/i7 Cpus
Graphics
Integrated Graphics – Dependent On Cpu
Display Outputs – 1 X Hdmi, 1 X Displayport 1.4
Max Resolution – 4096 X 2304 @ 60hz (Via Displayport 1.4)*
*graphics Features Depend On Cpu
Multi-gpu Support
Crossfirex – Supports Amd 2-way Crossfirex Technology
Expansion Slots
Pcie X16 (Cpu) – 1 X Pcie 3.0 X16 (X16 Mode)
Pcie X16 (Chipset) – 1 X Pcie 3.0 X16 (X4 Mode)
Pcie X1 (Chipset) – 4 X Pcie 3.0 X1
Storage
Sata Ports – 6 X Sata 6gb/s
M.2 Slots –
1 X M.2 (2242/2260/2280) – Sata & Pcie 3.0 X2
1 X M.2 (2242/2260/2280/22110) – Pcie 3.0 X4
Raid Support – Raid 0, 1, 5, 10
Intel® Rst – Supported
Intel® Optane™ – Ready
Lan
Controller – Realtek® Rtl8111h Gigabit Ethernet
Wireless Support
Wi-fi Slot – 1 X M.2 (Key E) For Wifi/bt (Cnvi & Pcie Interface)*
*wi-fi Module Sold Separately
Audio
Codec – Realtek® Alc887 8-channel Hd Audio
Features –
Audio Shielding
Premium Japanese Capacitors
Dedicated Pcb Layers
Multi-recording, Jack Detection, Front Panel Jack-retasking
Up To 24-bit/192khz Playback
*requires Hd Audio Chassis For 8-channel Output
Usb Ports
Rear I/o:
2 X Usb 3.2 Gen 2 (1 X Type-a + 1 X Type-c)
2 X Usb 3.2 Gen 1 Type-a
4 X Usb 2.0 Type-a
Front Panel (Via Internal Headers):
4 X Usb 3.2 Gen 1
3 X Usb 2.0
Software Features
Asus Utilities – Armoury Crate, Ai Suite 3, Ez Update, Ai Charger, Fan Xpert 2+
Aura Sync – Standard Rgb & Addressable Gen 2 Rgb Header
Thermal Design – Aluminum Heatsinks & M.2 Heatsink
Protection – Asus 5x Protection Iii:
Digi+ Vrm, Languard, Overvoltage Protection, Safeslot Core, Stainless-steel Back I/o
Bios
Bios Type – 128 Mb Flash Rom, Uefi Ami Bios
Bios Features – Asus Ez Flash 3, Crashfree Bios 3, Uefi Ez Mode
Back Panel I/o
1 X Ps/2 Keyboard/mouse Combo
1 X Hdmi
1 X Displayport
2 X Usb 3.2 Gen 2 (1 X Type-a, 1 X Type-c)
2 X Usb 3.2 Gen 1 Type-a
4 X Usb 2.0
1 X Lan (Rj45)
3 X Audio Jacks
Internal I/o Headers
1 X 24-pin Eatx Power
1 X 8-pin Eatx 12v Power
1 X Com Port
1 X S/pdif Out Header
1 X Cpu Fan, 3 X Chassis Fan, 1 X Aio Pump
1 X M.2 (Pcie 3.0 X4)
1 X M.2 (Sata & Pcie 3.0 X2)
1 X M.2 (Key E For Wi-fi)
6 X Sata 6gb/s
2 X Usb 3.2 Gen 1 Headers (4 Ports)
2 X Usb 2.0 Headers (3 Ports)
1 X Rgb Header, 1 X Addressable Gen 2 Rgb Header
1 X Clear Cmos Jumper
1 X Thunderbolt Header
1 X Spi Tpm Header
1 X Front Panel Audio
1 X System Panel
Accessories
2 X Sata 6gb/s Cables
1 X M.2 Key E Screw Package
1 X M.2 Ssd Screw Package
1 X M.2 Rubber Package
1 X I/o Shield
1 X Dvd
1 X User Manual
Manageability
Features – Wol By Pme, Pxe Boot
Operating System
Support – Windows® 10 64-bit
Form Factor
Size – Atx (12 In X 9.2 In / 30.5 Cm X 23.4 Cm)
