(03 Month Warranty)

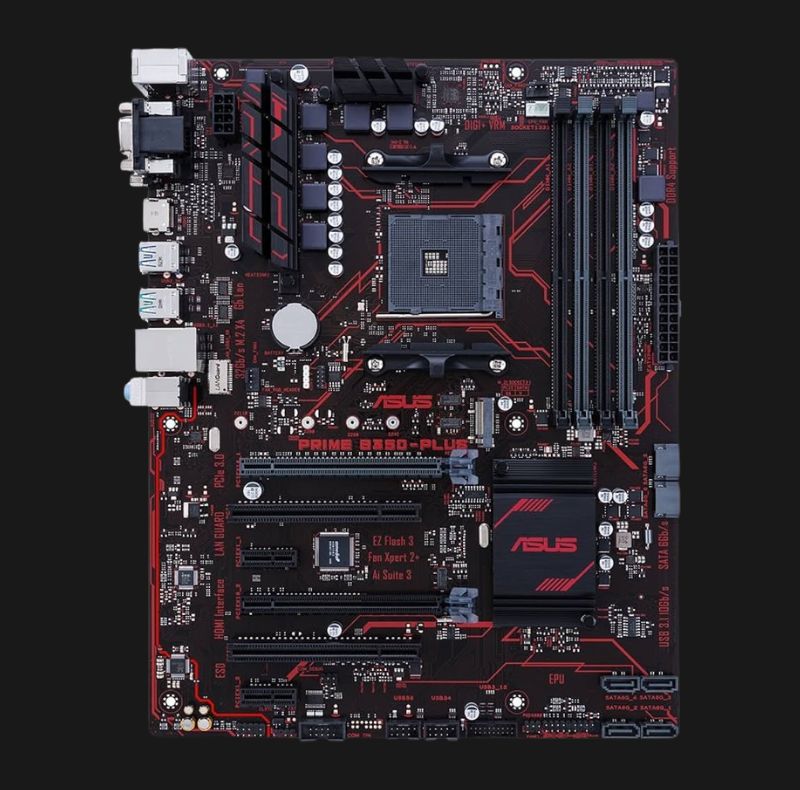

Model – Asus B350 Plus
Chipset – B350
Memory Type – Ddr4 (288-pin Dimm)
Memory Slots – 4 Slots
Max Memory Speed – 3200 Mhz
Max Capacity – 64 Gb
Memory Channels – Dual Channel
Ecc Support – No
M.2 Slot – 1 × M-key
M.2 Sizes Supported – 22110 / 2242 / 2260 / 2280
M.2 Interface – Pcie 3.0 X4 / Sata Iii
Back Io Audio – 3 × Analog Audio Jack
Back Io Ps/2 – 1 × Ps/2 Port
Back Io Network – 1 × Rj-45 Lan
Back Io Usb 2.0 – 2 × Usb 2.0 Type-a
Back Io Usb 3.0 Gen 1 – 4 × Usb 3 Gen 1 Type-a
Back Io Usb 3.0 Gen 2 – 2 × Usb 3 Gen 2 Type-a
Back Io Video – 1 × Dvi-d / 1 × Hdmi / 1 × Vga
Internal Audio – 1 × Spdif Out Header
Internal Fan Headers – 3 × 4-pin Fan Headers
Internal Rgb – 1 × Rgb Header
Internal Serial – 1 × Serial Header
Internal Power – 1 × 24-pin Atx / 1 × 8-pin Cpu Power
Internal Sata – 6 × Sata Iii
Internal Usb 2.0 – 2 × Usb 2 Headers
Internal Usb 3.0 – 1 × Usb 3 Gen 1 Header
Pcb Color – Black
Accent Colors – Black / Gray / Red
Lan Chipset – Realtek Rtl8111h (1 Gbps)
Network Type – Wired
Pcie X16 Slot – 1 × Pcie 3.0 X16 (X16 Mode)
Pcie X16 (X4 Mode) – 1 × Pcie 2.0 X16 (X4 Mode)
Pcie X1 Slots – 2 × Pcie 2.0 X1
Pci Slots – 2 × Pci (5v, 32-bit)
Amd Crossfire Support – Yes
Nvidia Sli Support – No
Audio Chipset – Realtek Alc887
Audio Channels – 7.1 Channel Hd Audio
