(03 Month Warranty)

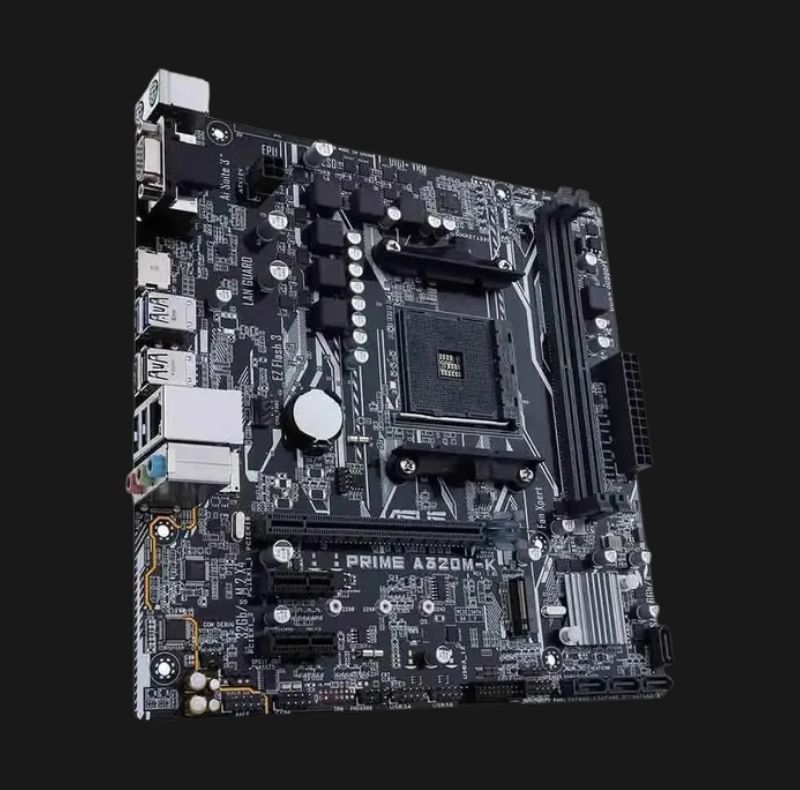

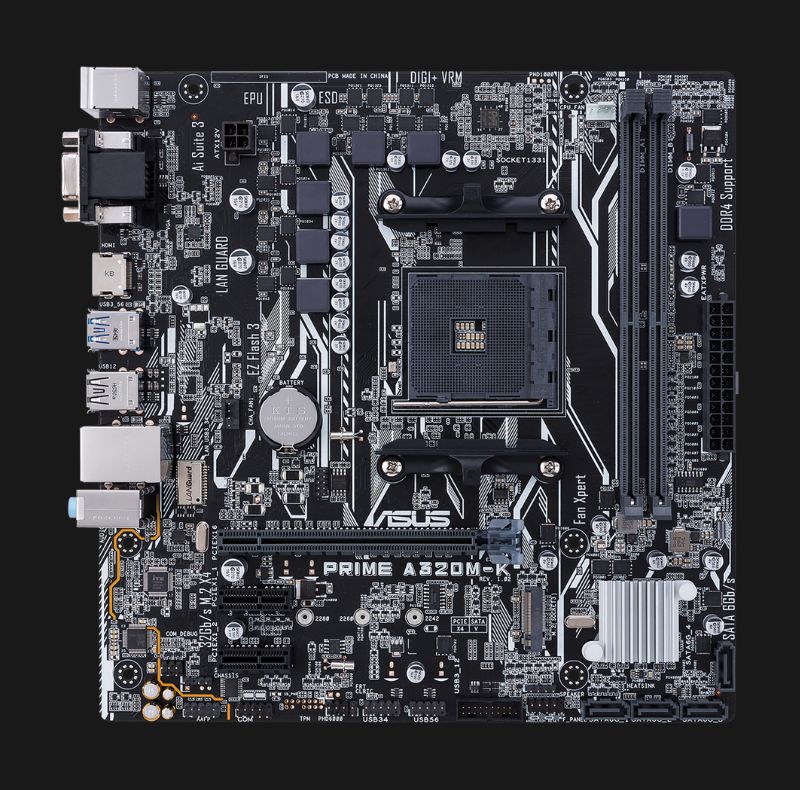

Model – Prime A320m-k
Cpu – Amd Am4 Socket For 3rd/2nd/1st Gen Amd Ryzen™, 2nd And 1st Gen Amd Ryzen™ With Radeon™ Vega Graphics, Athlon™ With Radeon™ Vega Graphics, 7th Gen A-series, Athlon X4 Processors (*refer To Asus.com For Cpu Support List)
Chipset – Amd A320
Memory – 2 X Dimm, Max. 64gb, Ddr4 3200(O.c.)/3000(O.c.)/2933(O.c.)/2800(O.c.)/2666/2400/2133 Mhz, Dual Channel Architecture
Ecc Support – Ecc Support Varies By Cpu
Graphics – Integrated Graphics (For Supported Cpus), Hdmi 1.4b (Max 4096×2160@24hz / 2560×1600@60hz), D-sub (Max 1920×1200@60hz), Max Shared Memory 2048 Mb
Expansion Slots – 1 X Pcie 3.0/2.0 X16, 2 X Pcie 2.0 X1
Storage – 1 X M.2 Socket 3 (2242/2260/2280, Sata & Pcie 3.0 X4 Mode), 4 X Sata 6gb/s Ports, Raid 0/1/10 Support
Lan – Realtek® Rtl8111h Gigabit Lan
Audio – Realtek Alc887/897 8-channel Hd Audio Codec
Usb Ports
Rear: 4 X Usb 3.2 Gen 1, 2 X Usb 2.0
Internal: 2 X Usb 2.0 Headers (Supports 4 Ports), 1 X Usb 3.2 Gen 1 Header (Supports 2 Ports)
Special Features
Asus 5x Protection Iii: Safeslot Core, Languard, Overvoltage Protection, Stainless-steel Back I/o, Digi+ Vrm
Asus Exclusive: Ai Suite 3, Ai Charger
Cooling: Fan Xpert, Fanless Heatsink Design
Ez Diy: Crashfree Bios 3, Ez Flash 3, Uefi Bios Ez Mode
Q-design: Q-slot, Q-dimm
Operating System Support – Windows® 10 64-bit, Windows® 7 64-bit (*windows 7 Support Only With Select Cpus)
Back I/o Ports
4 X Usb 3.2 Gen 1
2 X Usb 2.0
1 X Ps/2 Keyboard
1 X Ps/2 Mouse
1 X D-sub
1 X Hdmi
1 X Lan (Rj45)
3 X Audio Jacks
Internal I/o Ports
1 X M.2 Socket
4 X Sata 6gb/s
1 X Usb 3.2 Gen 1 Header (2 Ports)
2 X Usb 2.0 Headers (4 Ports)
1 X Cpu Fan Header (4-pin)
1 X Chassis Fan Header (4-pin)
1 X S/pdif Out Header
1 X 24-pin Eatx Power Connector
1 X 4-pin Atx 12v Power Connector
1 X Front Panel Audio Connector (Aafp)
1 X System Panel Connector
1 X Clear Cmos Jumper
1 X Com Port Header
1 X Speaker Connector
Bios – 128 Mb Flash Rom, Uefi Ami Bios, Multi-language, Crashfree Bios 3, Ez Flash 3, Dram Spd Info, Qfan Control
Form Factor – Matx (8.9″ X 8.7″ / 22.6 Cm X 22.1 Cm)
