(03 Month Warranty)

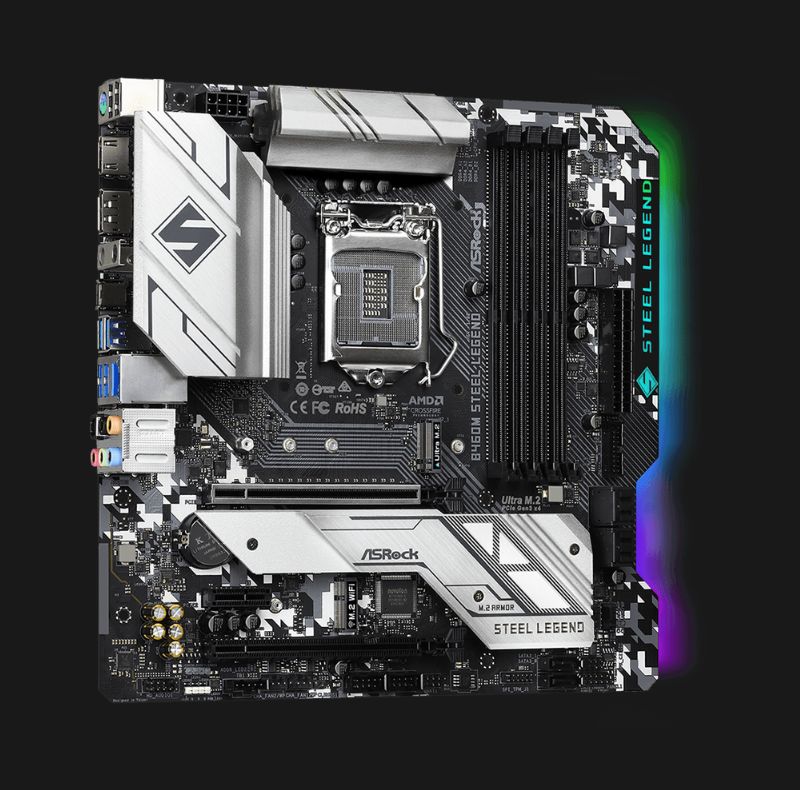

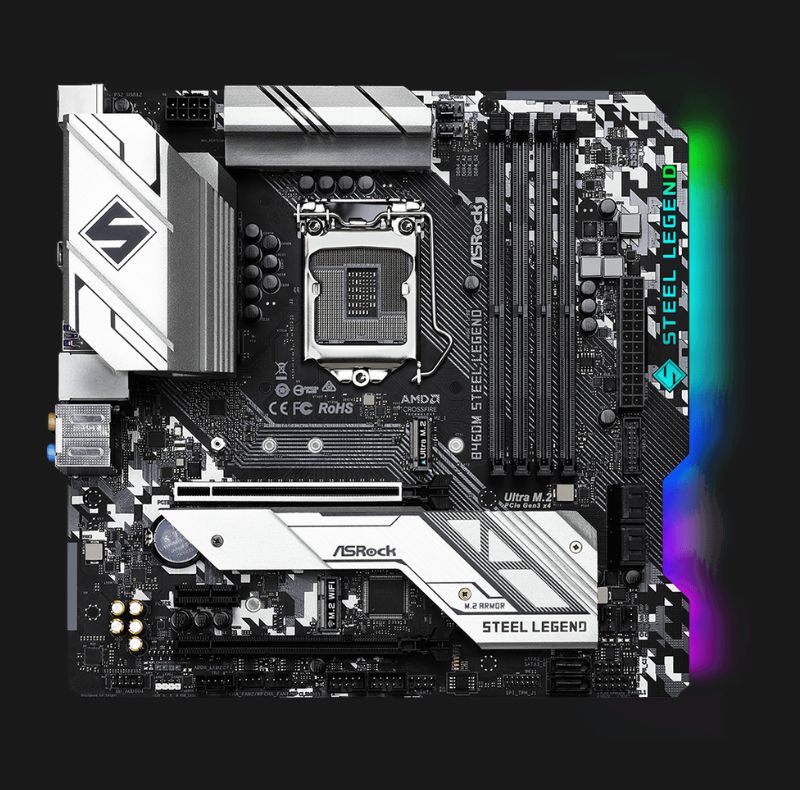

Model – Asrock B460m Steel Legend
Cpu
Supports 10th Gen Intel® Core™ Processors (Socket 1200)
Digi Power Design
9 Power Phase Design
Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
Intel® B460
Memory
Dual Channel Ddr4 Memory Technology
4 X Ddr4 Dimm Slots
Supports Ddr4 2933 / 2800 / 2666 / 2400 / 2133 Mhz (Non-ecc, Un-buffered)*
Supports Ecc Udimm (Non-ecc Mode Only)
Max Capacity: 128gb**
Supports Intel® Xmp 2.0
15μ Gold Contact In Dimm Slots
I9/i7 Cpus Support Up To Ddr4-2933, I5/i3/pentium/celeron Support Up To Ddr4-2666
** Actual Usable Memory May Be Less On 32-bit Os Due To System Reservation
Bios
128mb Ami Uefi Legal Bios With Multilingual Gui
Acpi 6.0 Compliant
Smbios 2.7 Support
Voltage Multi-adjustment: Cpu Core/cache, Gt, Dram, Vppm, Pch 1.05v, Vccst, Vccsa
Graphics
Dual Outputs: 1 X Hdmi 1.4, 1 X Displayport 1.4
Max Resolution (Hdmi): 4096×2160 @ 30hz
Max Resolution (Dp): 4096×2304 @ 60hz
Supports Directx 12, Opengl 4.5, Intel® Quick Sync Video
Hardware Decoding: Avc/h.264, Hevc/h.265 8/10-bit, Vp8/vp9 8/10-bit, Mpeg2, Mjpeg, Vc-1**
Hdmi Supports Deep Color, Xvycc, Auto Lip Sync, Hbr Audio
Hdcp 2.3 Supported
*integrated Graphics Supported Only With Compatible Cpus
**vp9 10-bit & Vc-1 Decode Only; Vp8/vp9 Encode Not Supported On Windows
Audio
7.1 Ch Hd Audio (Realtek Alc1200 Codec)
Premium Blu-ray Audio Support
Gold Audio Jacks
Pcb Isolated Shielding, Separate Pcb Layers For R/l Channels
Supports Nahimic Audio
Lan
2.5 Gigabit Lan (Dragon Rtl8125bg)
Dragon 2.5g Lan Software: Bandwidth Control, Ui, Usage Stats, Game/browser/streaming Modes
Supports Wake-on-lan, Pxe, Esd/lightning Protection, Energy Efficient Ethernet (802.3az)
Expansion Slots
2 X Pcie 3.0 X16 (X16/x4 Mode)
1 X Pcie 3.0 X1
Supports Amd Quad Crossfirexâ„¢ And Crossfirexâ„¢
1 X M.2 (Key E) For Wifi/bt (2230 Module)
Storage
6 X Sata3 6.0 Gb/s (Raid 0, 1, 5, 10, Ncq, Ahci, Hot Plug)
1 X M.2 (M2_1) – Pcie Gen3 X4, M Key, 2242/2260/2280
1 X M.2 (M2_2) – Pcie Gen3 X4 Or Sata, M Key, 2260/2280
Supports Intel® Optane™ Memory (M2_1)
Supports Nvme Ssd Boot
Supports Asrock U.2 Kit
*m2_2 Disables Sata3_0 If Sata M.2 Is Used
**pcie Raid Not Supported
Internal Connectors
1 X Spi Tpm Header
1 X Rgb Led Header (12v/3a)
2 X Addressable Led Headers (5v/3a)
1 X Cpu Fan (4-pin, Max 1a / 12w)
1 X Cpu/water Pump Fan (4-pin, Max 2a / 24w)
4 X Chassis/water Pump Fans (4-pin, Max 2a / 24w Each)
1 X 24-pin Atx Power (Hi-density)
1 X 8-pin 12v Power (Hi-density)
1 X Front Panel Audio
1 X Thunderboltâ„¢ Aic (5-pin)
2 X Usb 2.0 Headers (4 Ports Total)
1 X Usb 3.2 Gen1 Header (2 Ports)
1 X Chassis Intrusion/speaker Header
Rear I/o Ports
1 X Ps/2 Keyboard/mouse
1 X Hdmi
1 X Displayport 1.4
1 X Optical Spdif Out
2 X Usb 2.0
4 X Usb 3.2 Gen1 Type-a
1 X Usb 3.2 Gen1 Type-c
1 X 2.5g Lan (Rj-45)
6 X Gold-plated Audio Jacks (7.1 Ch Hd Audio)
More Details Visit https://www.asrock.com/
