(03 Month Warranty)

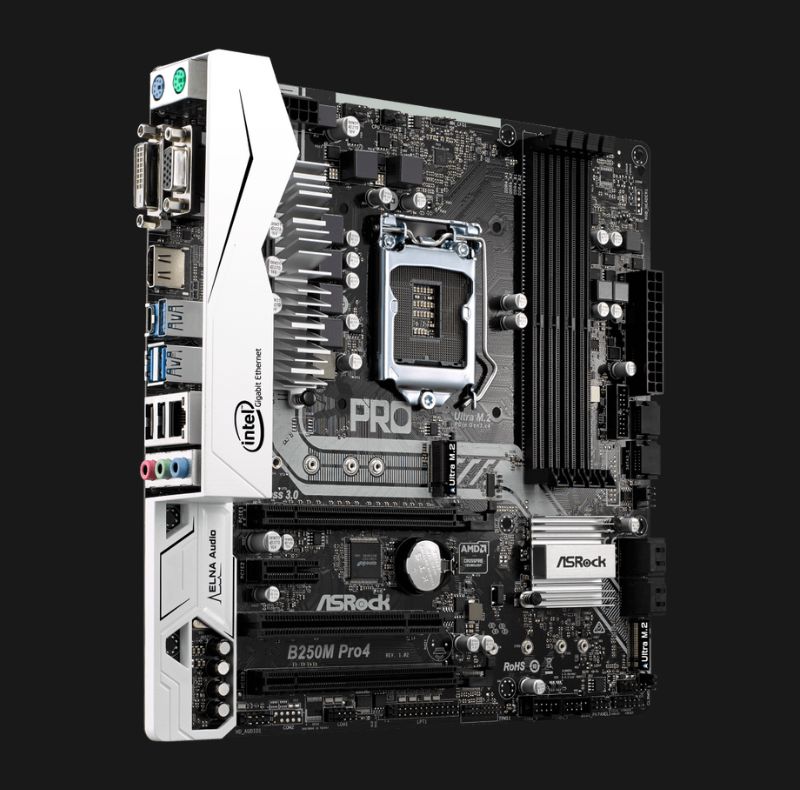

Model – Asrock B250m Pro4
Cpu – Supports 6th & 7th Gen Intel® Coreâ„¢ I7 / I5 / I3 / Pentium® / Celeron®
Cpu Socket – Lga 1151
Power Design – Digi Power Design
Power Phase – 6 Phase
Intel® Turbo Boost 2.0 – Supported
Chipset – Intel® B250
Memory Technology – Dual Channel Ddr4
Memory Slots – 4 X Ddr4 Dimm
Supported Memory Speed – Ddr4 2400 / 2133 Mhz
Memory Type – Non-ecc, Un-buffered
Ecc Support – Ecc Udimm (Operates In Non-ecc Mode)
Max Memory Capacity – 64 Gb
Xmp Support – Intel® Xmp 2.0
Dimm Slot Contact – 15μ Gold Contact
Bios Type – 128mb Ami Uefi Bios
Bios Features – Multilingual Gui, Acpi 6.0, Smbios 2.7
Voltage Control – Cpu, Gt_cpu, Dram, Pch 1.0v, Vccio, Vccsa, Vccst
Graphics – Intel® Hd Graphics (Cpu Dependent)
Quick Sync Video – Supported
Intel® Intruâ„¢ 3d – Supported
Intel® Clear Video Hd – Supported
Graphics Api – Directx 11.3 / 12
Max Shared Memory – 1024 Mb
Multi Monitor – Triple Monitor Supported
Graphics Outputs – D-sub / Dvi-d / Hdmi
Max Hdmi Resolution – 4096×2160 @24hz / 3840×2160 @30hz
Max Dvi-d Resolution – 1920×1200 @60hz
Max D-sub Resolution – 1920×1200 @60hz
Hdcp Support – Dvi-d & Hdmi
Blu-ray Playback – Full Hd 1080p Supported
Audio Codec – Realtek Alc892
Audio Channels – 7.1 Channel Hd Audio
Audio Features – Premium Blu-ray Audio, Surge Protection, Elna Audio Caps
Lan Controller – Intel® I219v
Lan Speed – Gigabit 10/100/1000 Mbps
Wake-on-lan – Supported
Pxe – Supported
Energy Efficient Ethernet – 802.3az
Pcie Slots – 2 X Pcie 3.0 X16 (X16 / X4)
Pcie X1 Slots – 1 X Pcie 3.0 X1
Pci Slot – 1
Multi-gpu Support – Amd Quad Crossfirex / Crossfirex
Sata Ports – 6 X Sata3 6.0 Gb/s
M.2 Slots – 2 X Ultra M.2
M.2 Support – Sata & Pcie Gen3 X4 (32 Gb/s)
Nvme Boot Support – Yes
Intel® Optaneâ„¢ – Supported (M2_2 Only)
U.2 Support – Via Asrock U.2 Kit
Internal Headers – Print Port, Com Port, Tpm
Fan Headers – 2 X Cpu Fan, 2 X Chassis Fan
Usb Headers – 2 X Usb 2.0, 1 X Usb 3.1 Gen1
Power Connectors – 24-pin Atx, 8-pin 12v
Front Panel Audio – Supported
Rear I/o Ports – Ps/2 Mouse, Ps/2 Keyboard
Video Outputs – D-sub, Dvi-d, Hdmi
Usb Ports – 2 X Usb 2.0, 3 X Usb 3.1 Gen1 Type-a, 1 X Usb 3.1 Gen1 Type-c
Lan Port – Rj-45 With Led
Audio Jacks – Line In / Front Speaker / Microphone
