(03 Years Warranty)

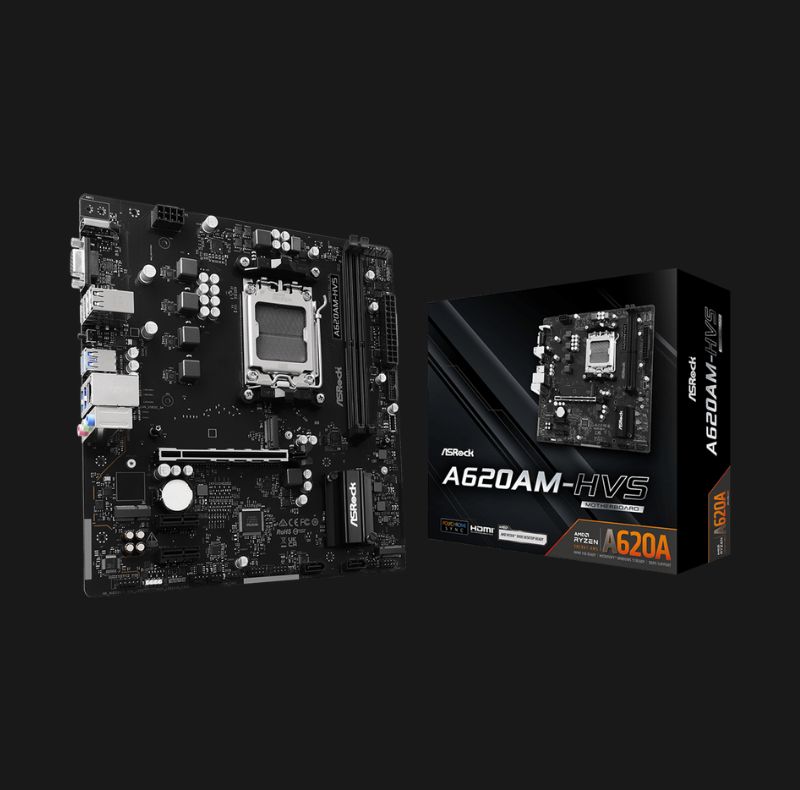

Model Name – Asrock A620am-hvs
Socket – Amd Am5
Chipset – Amd A620a
Cpu Support – Amd Ryzenâ„¢ 9000, 8000, And 7000 Series Processors
Power Design – 4+1+1 Power Phase, Dr.mos For Vcore
Memory Technology – Dual Channel Ddr5
Dimm Slots – 2 × Ddr5 Dimm Slots
Maximum Memory – 128gb
Memory Speed Support – Up To Ddr5-6800+ (Oc)
Ecc Support – Non-ecc Unbuffered Ddr5
Xmp Support – Yes
Expo Support – Yes
Graphics Output – 1 × Hdmi 2.1, 1 × D-sub (Vga)
Integrated Graphics Support – Amd Rdnaâ„¢ Graphics (Cpu Dependent)
Maximum Display Resolution – Hdmi 2.1 Up To 4k 120hz
Audio – Realtek Alc897 7.1 Channel Hd Audio
Lan – Realtek Rtl8111h Gigabit Lan (10/100/1000 Mbps)
Wi-fi Support – M.2 Key-e Slot For Wi-fi/Bluetooth Module
Pcie X16 Slots – 1 × Pcie 4.0 X16
Pcie X1 Slots – 2 × Pcie 3.0 X1
M.2 Slots – 2 × M.2 Slots
Primary M.2 Slot – Pcie Gen4 X4 (64gb/S)
Secondary M.2 Slot – Pcie Gen3 X4 / Sata3 (32gb/S)
Sata Ports – 2 × Sata Iii 6gb/S
Raid Support – Raid 0, Raid 1, Raid 10
Usb 3.2 Gen1 Rear – 4 × Type-a Ports
Usb 3.2 Gen1 Front – 2 × Type-a + 1 × Type-c
Usb 2.0 Rear – 4 Ports
Usb 2.0 Front – 4 Ports
Rgb Headers – 1 × Rgb Led Header
Argb Headers – 3 × Addressable Rgb Headers
Fan Headers – 1 × Cpu Fan, 3 × Chassis/Water Pump Fan
Power Connectors – 24-pin Atx + 8-pin Cpu
Rear Display Outputs – Hdmi 2.1, Vga (D-sub)
Audio Ports (Rear) – Line-in, Front Speaker, Microphone
Network Port – 1 × Rj-45 Gigabit Lan
Special Features
Bios Flashback Button
Asrock Auto Driver Installer
Asrock Post Status Checker
Asrock Polychrome Sync
Asrock Instant Flash
15μ Gold Pcie Slot Contacts
2oz Copper Pcb
Form Factor – Micro-atx
Dimensions – 244 × 229 Mm (9.6 × 9.0 Inches)
Operating System Support – Windows® 10 64-bit / Windows® 11 64-bit
