(03 Month Warranty)

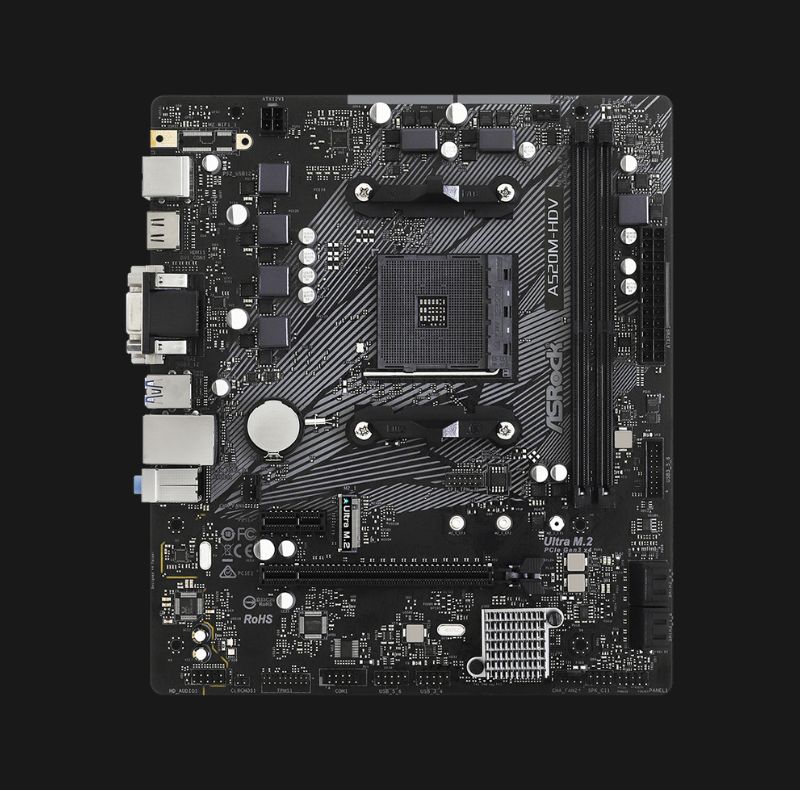

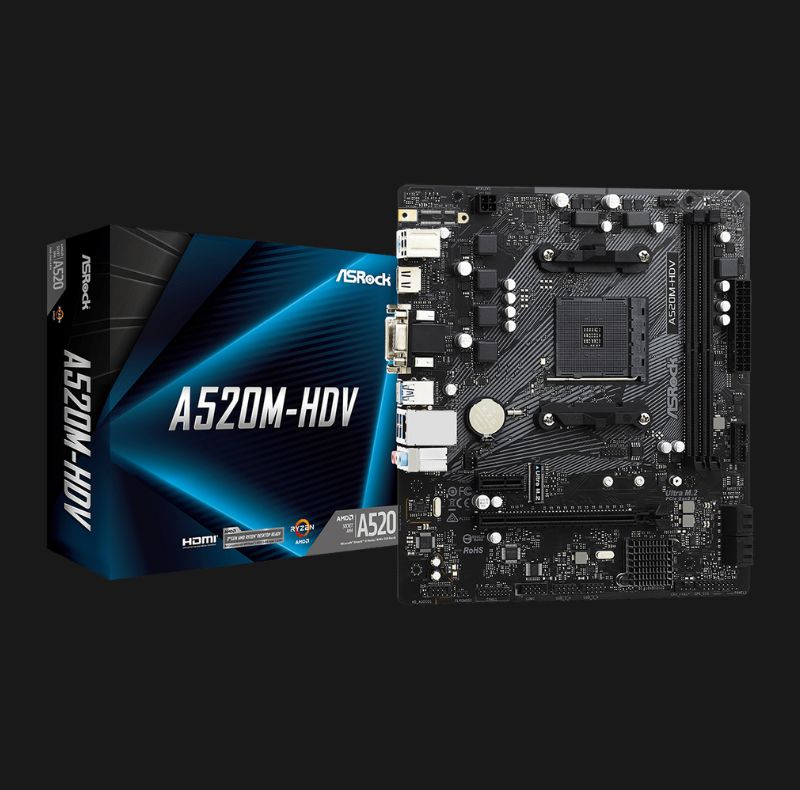

Model – Asrock A520m-hdv
Cpu Socket – Amd Am4
Cpu Support – Ryzenâ„¢ 3000 / 3000g / 4000g / 5000 / 5000g Series
Power Phase Design – 6 Phase
Chipset – Amd A520
Memory Channel – Dual
Dimm Slots – 2
Max Memory (Gb) – 64
Memory Type – Ddr4 (Ecc & Non-ecc, Un-buffered)
Memory Speed – Up To Ddr4 4733+ (Oc, Cpu Dependent)
Xmp Support – Yes
Dimm Slot Contact – 15μ Gold
Bios – 128mb Ami Uefi
Bios Features – Plug & Play, Acpi 5.1, Smbios 2.3, Jumperfree
Voltage Control – Cpu, Vddcr_soc, Dram, Vddp
Integrated Graphics – Amd Radeonâ„¢ Vega (Apu Only)
Directx – 12
Pixel Shader – 5.0
Max Shared Memory – Up To 16 Gb
Multi Monitor – Triple Display
Display Outputs – D-sub / Dvi-d / Hdmi
Hdmi Version – Hdmi 2.1
Max Hdmi Resolution – 4096×2160 @ 60hz
Max Dvi-d Resolution – 1920×1200 @ 60hz
Max D-sub Resolution – 1920×1200 @ 60hz
Hdr Support – Yes
Hdcp – 2.3
4k Uhd Playback – Supported
Audio Codec – Realtek Alc887 / Alc897
Audio Channels – 7.1 Channel Hd Audio
Audio Protection – Surge Protection
Lan Controller – Realtek Rtl8111h
Lan Speed – Gigabit 10/100/1000 Mbps
Wake-on-lan – Supported
Pxe – Supported
Pcie X16 Slot – 1 (Pcie 3.0)
Pcie X1 Slot – 1
Sata Iii – 4
M.2 Slot – 1 (Pcie Gen3 X4 / Sata)
Nvme Boot Support – Yes
Raid – 0 / 1 / 10 (Sata)
Optane Support – No
Tpm Header – 1 (Spi)
Com Header – 1
Fan Headers – 1 X Cpu Fan, 2 X Chassis Fan
Power Connectors – 24-pin Atx, 4-pin 12v
Usb 3.2 Gen1 Header – 1 (Front, 2 Ports)
Usb 2.0 Headers – 2 (Front, 4 Ports)

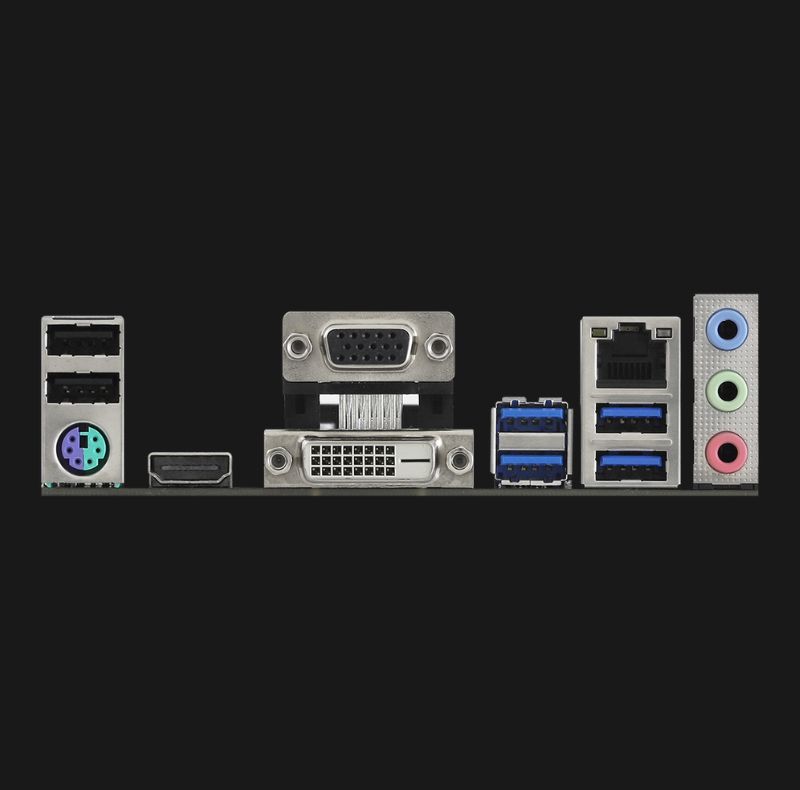

Rear Usb 3.2 Gen1 – 4
Rear Usb 2.0 – 2
Lan Port – Rj-45 With Led
Audio Jacks (Rear) – Line In / Speaker / Mic
Software – Asrock A-tuning
Uefi Utilities – Instant Flash
Hardware Monitoring – Cpu & Chassis Temperature
Fan Control – Smart Fan Control
Voltage Monitoring – +12v, +5v, +3.3v, Cpu Vcore
Form Factor – Micro-atx
Dimensions – 9.0 × 7.9 In (23.0 × 20.1 Cm)
Capacitor Design – Solid Capacitors
Operating System – Windows® 10 64-bit / Windows® 11 64-bit
