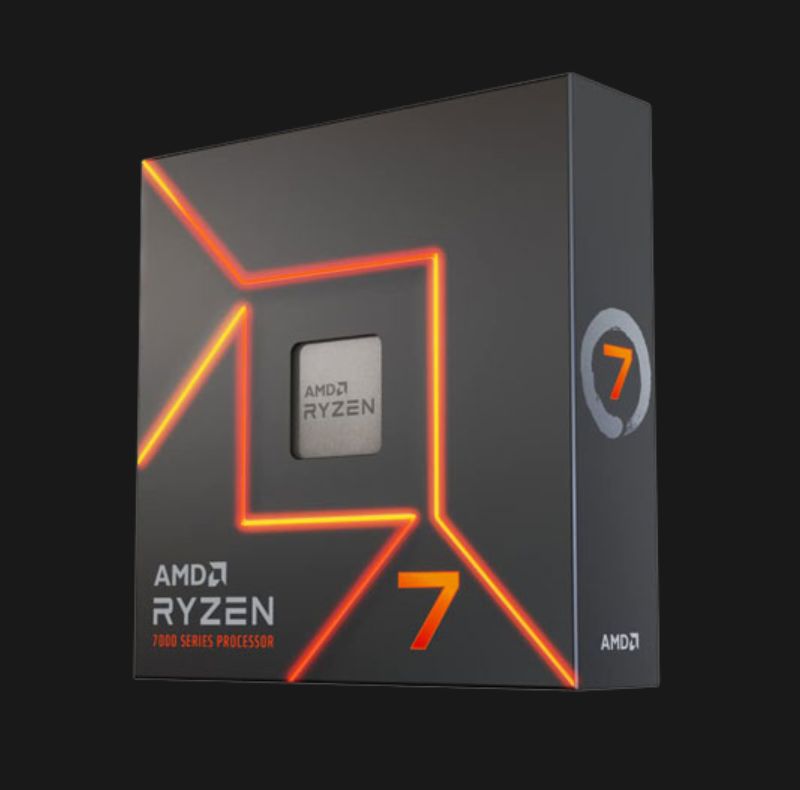

AMD RYZEN 7 7700X (8 CORES, 16 THREADS) UP TO 5.4GHZ

(3 Years Warranty)

Model – Ryzen 7 7700x

Platform – Desktop

Market Segment – Enthusiast Desktop

Product Family – Amd Ryzen™ Processors

Product Line – Amd Ryzen™ 7 Processors

Amd Pro Technologies – No

Consumer Use – Yes

Regional Availability – Global

Former Codename – “Raphael Am5”

Architecture – Zen 4

# Of Cpu Cores – 8

Multithreading (Smt) – Yes

# Of Threads – 16

Max. Boost Clock – Up To 5.4ghz

Base Clock – 4.5ghz

L1 Cache – 512kb

L2 Cache – 8mb

L3 Cache – 32mb

Default Tdp – 105w

Processor Technology For I/o Die – Tsmc 6nm Finfet

Cpu Compute Die (Ccd) Size – 71mm²

I/o Die (Iod) Size – 122mm²

Package Die Count – 2

Unlocked For Overclocking – Yes

Amd Expo™ Memory Overclocking Technology – Yes

Precision Boost Overdrive – Yes

Curve Optimizer Voltage Offsets – Yes

Amd Ryzen™ Master Support – Yes

Cpu Socket – Am5

Supporting Chipsets – X670e, X670, B650e, B650

Cpu Boost Technology – Precision Boost 2

Instruction Set – X86-64

Supported Extensions – Aes, Amd-v, Avx, Avx2, Avx512, Fma3, Mmx(+), Sha, Sse, Sse2, Sse3, Sse4.1, Sse4.2, Sse4a, Ssse3, X86-64

Thermal Solution (Pib) – Not Included

Max. Operating Temperature (Tjmax) – 95°c

Launch Date – 9/27/2022

Os Support – Windows 11/10 (64-bit), Rhel X86 64-bit, Ubuntu X86 64-bit

Usb Type-c® Support – Yes

Native Usb 3.2 Gen 2 (10gbps) Ports – 4

Native Usb 3.2 Gen 1 (5gbps) Ports – 0

Native Usb 2.0 (480mbps) Ports – 1

Native Sata Ports – 0

Native Pcie® Lanes (Total/usable) – 28/24

Additional Usable Pcie Lanes From Motherboard –

X670e: 12x Gen4

X670: 12x Gen4

B650e: 8x Gen4

B650: 8x Gen4

Nvme Support – Boot, Raid0, Raid1, Raid10

System Memory Type – Ddr5

Memory Channels – 2

Max. Memory – 128gb

System Memory Subtype – Udimm

Max Memory Speed –

2x1r: Ddr5-5200

2x2r: Ddr5-5200

4x1r: Ddr5-3600

4x2r: Ddr5-3600

Ecc Support – Yes (Requires Motherboard Support)

Integrated Graphics – Yes

Graphics Model – Amd Radeon™ Graphics

Graphics Core Count – 2

Graphics Frequency – 2200 Mhz

Gpu Base – 400 Mhz

Usb Type-c® Displayport™ Alternate Mode – Yes

Product Id (Boxed) – 100-100000591wof

Product Id (Tray) – 100-000000591

Supported Technologies – Amd Expo™ Technology, Amd Ryzen™ Technologies
