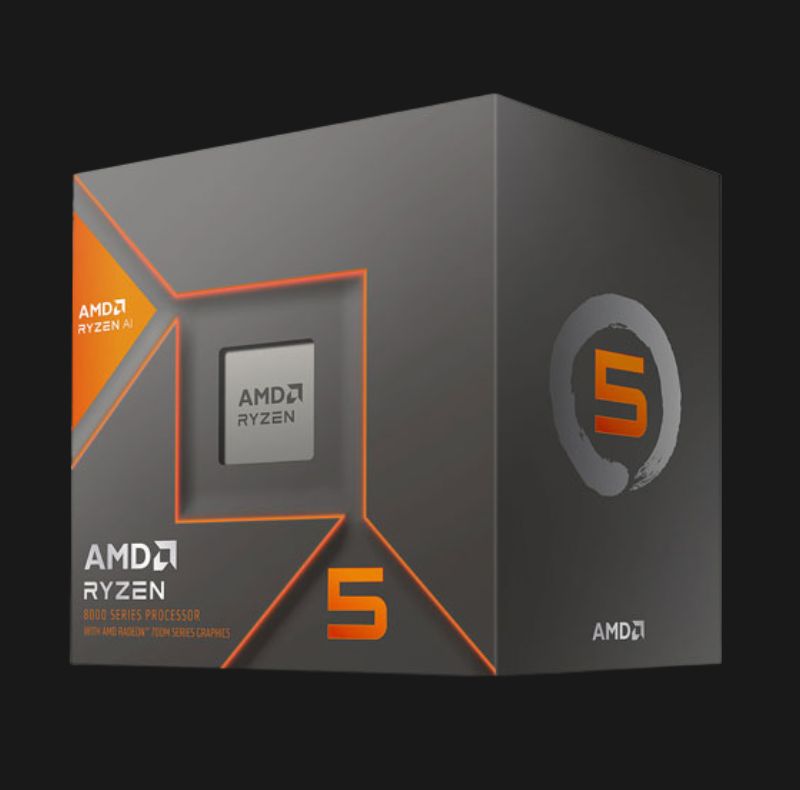

AMD RYZEN 5 8600G PROCESSOR (6 CORES 12 THREADS)

(3 Years Warranty)

Name – Amd Ryzen  5 8600g

Family – Ryzen

Series – Ryzen 8000 Series

Form Factor – Desktops

Amd Pro Technologies – No

Consumer Use – Yes

Regional Availability – Global

Former Codename – Phoenix

Architecture – Zen 4

No Of Cpu Cores – 6

Multithreading (Smt) – Yes

Noof Threads – 12

Max. Boost Clock – Up To 5 Ghz

Base Clock – 4.3 Ghz

L2 Cache – 6 Mb

L3 Cache – 16 Mb

Default Tdp – 65w

Amd Configurable Tdp (Ctdp) – 45-65w

Processor Technology For Cpu Cores – Tsmc 4nm Finfet

Cpu Compute Die (Ccd) Size – 178mm²

Package Die Count – 1

Unlocked For Overclocking – Yes

Amd Expo™ Memory Overclocking Technology – Yes

Precision Boost Overdrive – Yes

Curve Optimizer Voltage Offsets – Yes

Amd Ryzen™ Master Support – Yes

Cpu Socket – Am5

Cpu Boost Technology – Precision Boost 2

Instruction Set – X86-64

Supported Extensions – Aes , Amd-v , Avx , Avx2 , Avx512 , Fma3 , Mmx-plus , Sha , Sse , Sse2 , Sse3 , Sse4.1 , Sse4.2 , Sse4a , Ssse3 , X86-64

Max. Operating Temperature (Tjmax) – 95°c

Os Support – Windows 11 – 64-bit Edition , Windows 10 – 64-bit Edition , Rhel X86 64-bit , Ubuntu X86 64-bit

Connectivity

Native Usb 4 (40gbps) Ports – 2

Native Usb 3.2 Gen 2 (10gbps) Ports – 2

Native Usb 2.0 (480mbps) Ports – 1

Pci Express® Version – Pcie® 4.0

Native Pcie® Lanes (Total/usable) – 20 , 16

Nvme Support – Boot , Raid0 , Raid1

System Memory Type – Ddr5

Memory Channels – 2

Max. Memory – 256 Gb

System Memory Subtype – Udimm

Max Memory Speed – 2x1r Ddr5-5200 , 2x2r Ddr5-5200 , 4x1r Ddr5-3600 , 4x2r Ddr5-3600

Graphics Capabilities

Graphics Model – Amd Radeon™ 760m

Graphics Core Count – 8

Graphics Frequency – 2800 Mhz

Directx® Version – 12

Displayport™ Version – 2.1

Displayport Extensions – Adaptive-sync , Hdr Metadata , Uhbr10

Displayport Max Refresh Rates (Sdr) – 7680×4320 @ 60hz , 3840×2160 @ 240hz , 3440×1440 @ 360hz , 2560×1440 @ 480hz , 1920×1080 @ 600hz

Displayport Max Refresh Rates (Hdr) – 7680×4320 @ 60hz , 3840×2160 @ 240hz , 3440×1440 @ 360hz , 2560×1440 @ 480hz , 1920×1080 @ 600hz

Hdmi® Version – 2.1

Hdcp Version Supported – 2.3

Usb Type-c® Displayport™ Alternate Mode – Yes

Multi-monitor Support – Yes

Max Displays – 4

Amd Freesync™ – Yes

Wireless Display – Miracast

Max Video Encode Bandwidth (Sdr) – 1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc Av1, 1440p513 8/10bpc Av1, 2160p240 8/10bpc Av1, 4320p60 8/10bpc Av

Max Video Decode Bandwidth – 1080p60 8bpc Mpeg2, 1080p60 8bpc Vc1, 1080p786 8/10bpc Vp9, 2160p196 8/10bpc Vp9, 4320p49 8/10bpc Vp9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc Av1, 2160p240 8/10bpc Av1, 4320p60 8/10bpc Av1

Amd Smartaccess Memory – Available

Ai Engine Capabilities

Brand Name – Amd Ryzen™ Ai

Amd Ryzen™ Ai – Available

Performance – Up To 16 Tops

Security, Virtualization, And Manageability

Amd Enhanced Virus Protection (Nx Bit) – Yes
